HDD with Serial Number: WCAT23502699;
Model: WD1600AAJS-75B4A0;
Date: 02 OCT 2008;
DCM: HANNHT2AGN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 962/2402;

;

ROM F/W version……………………. : 00050079;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

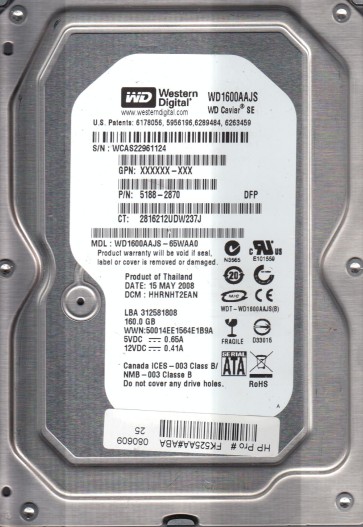

HDD #2 Specs:;
SN: WCAS22961124;
Model: WD1600AAJS-65WAA0;
Date: 15 MAY 2008;
DCM: HHRNHT2EAN ;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 08P;
PCB Revision: 2060-701552-003 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A16/2582;
1   : 1   : A4C/2636;
ROM F/W version……………………. : 005800A8;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;

;

HDD with Serial Number: WCAS22634906;
Model: WD1600AAJS-65WAA0;
Date: 03 MAY 2008;
DCM: HBRNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 10P;
PCB Revision: 2060-701552-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AC0/2752;
1 : 1 : A2C/2604;
ROM F/W version……………………. : 005800A8;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCAS21770047;
Model: WD1600AAJS-65WAA0;
Date: 10 APR 2008;
DCM: HBNNHTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 05P;
PCB Revision: 2060-701552-003 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A86/2694;
1   : 1   : A3E/2622;
;
ROM F/W Version: 005800A8;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0003

;

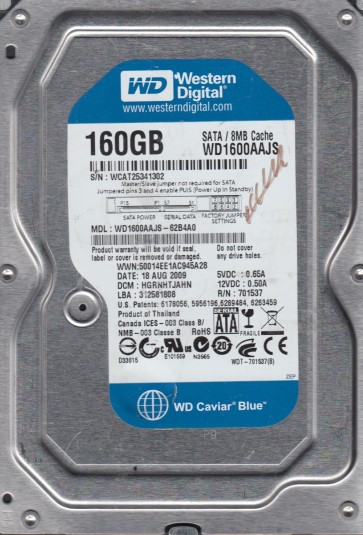

HDD with Serial Number: WCAT25341302;
Model: WD1600AAJS-62B4A0;
Date: 18 AUG 2009;
DCM: HGRNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AG;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9B6/2486;
ROM F/W version……………………. : 000500D9;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAT25344780;
Model: WD1600AAJS-62B4A0;
Date: 19 AUG 2009;
DCM: DHRNHTJAGN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AG;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A30/2608;
ROM F/W version……………………. : 000500D9;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAS2D523414;
Model: WD1600AAJS-61WAA0;
Date: 28 FEB 2009;
DCM: HHNNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 13P;
PCB Revision: 2060-701552-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A9A/2714;
1 : 1 : 9EE/2542;

;

ROM F/W version……………………. : 005800AF;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

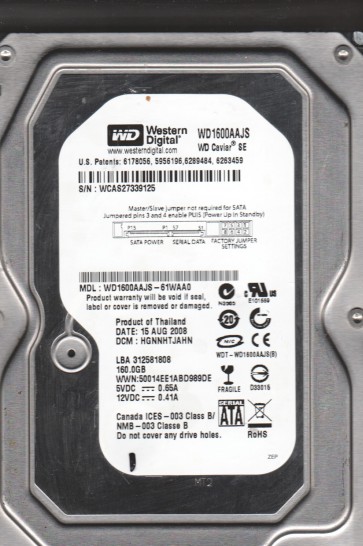

Specifications;
SN: WCAS27339125;
Model: WD1600AAJS-61WAA0;
Date: 15 AUG 2008;
DCM: HGNNHTJAHN ;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 11P;
PCB Revision: 2060-701552-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A50/2640;
1   : 1   : A22/2594;
ROM F/W version……………………. : 005800AA;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD with Serial Number: WCAS2A359349;
Model: WD1600AAJS-61WAA0;
Date: 12 NOV 2008;
DCM: DANNNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701552-G00 11P;
PCB Revision: 2060-701552-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACC/2764;
1 : 1 : A8A/2698;
ROM F/W version……………………. : 005800AD;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

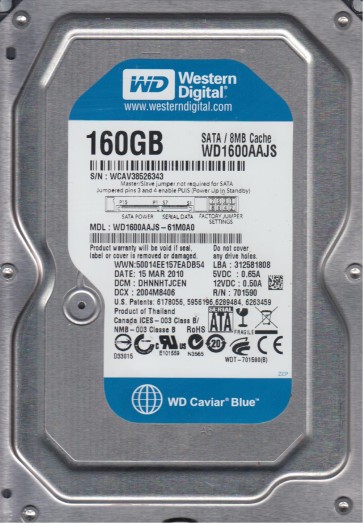

HDD with Serial Number: WCAV38526343;
Model: WD1600AAJS-61M0A0;
Date: 15 MAR 2010;
DCM: DHNNHTJCEN;
Product of: Thailand;
PCB Sticker: 2061-701590-X03 AD;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A00/2560;

;

ROM F/W version……………………. : 000500F9;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;
