WD1600AAJS-56M0A0, DCM HBRNHT2CG, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAV3H812976;
Model: WD1600AAJS-56M0A0;
Date: 30 SEP 2010;
DCM: HBRNHT2CG;
Product of: Malaysia;
PCB Sticker: 2061-771590-X02 AC;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A00/2560;
ROM F/W version……………………. : 000500FM;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

WD1600AAJS-56M0A0, DCM HARNNT2CG, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAV3H839676;
Model: WD1600AAJS-56M0A0;
Date: 02 OCT 2010;
DCM: HARNNT2CG;
Product of: Malaysia;
PCB Sticker: 2061-771590-X02 AC;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A1C/2588;
ROM F/W version……………………. : 000500FM;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

WD1600AAJS-56M0A0, DCM HANNNT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV33818942;
Model: WD1600AAJS-56M0A0;
Date: 28 AUG 2009;
DCM: HANNNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701590-E01 01P;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 98C/2444;
ROM F/W version……………………. : 000500ER;
Heads map…………………………. : 0;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0005;

;

WD1600AAJS-56M0A0, DCM EBRNHT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV38388957;
Model: WD1600AAJS-56M0A0;
Date: 30 MAR 2010;
DCM: EBRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701590-X02 AE;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 99C/2460;
ROM F/W version……………………. : 000500F9;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

WD1600AAJS-56M0A0, DCM DGRNHT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV38400461;
Model: WD1600AAJS-56M0A0;
Date: 30 MAR 2010;
DCM: DGRNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701590-X02 AE;
PCB Revision: 2060-701590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 978/2424;

;

;
ROM F/W version: 000500F9;
Heads map: 0;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;

;

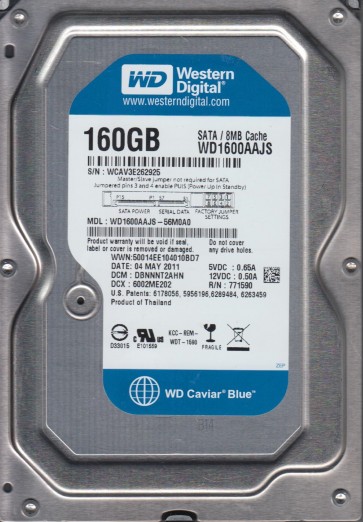

WD1600AAJS-56M0A0, DCM DBNNNT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV3E262925;
Model: WD1600AAJS-56M0A0;
Date: 04 MAY 2011;
DCM: DBNNNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771590-X02 AD;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A1A/2586;
ROM F/W version……………………. : 00060004;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;

;

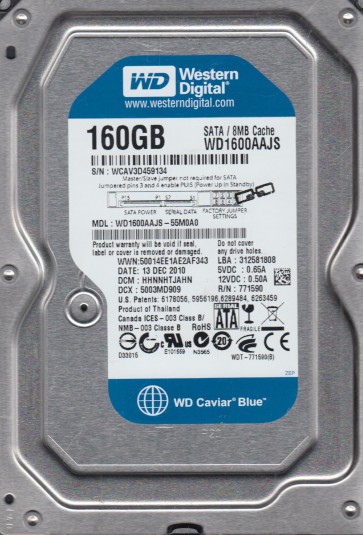

WD1600AAJS-55M0A0, DCM HHNNHTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV3D459134;
Model: WD1600AAJS-55M0A0;
Date: 13 DEC 2010;
DCM: HHNNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-771590-X02 AC;
PCB Revision: 2060-771590-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A5C/2652;
ROM F/W version……………………. : 000500FU;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

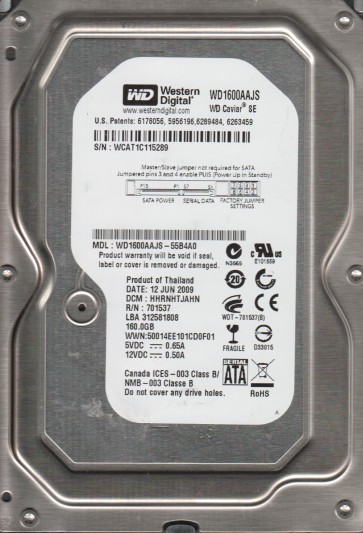

WD1600AAJS-55B4A0, DCM HHRNHTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WCAT1C115289;
Model: WD1600AAJS-55B4A0;
Date: 12 JUN 2009;
DCM: HHRNHTJAHN ;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AF;
PCB Revision: 2060-701537-003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A64/2660;
;
ROM F/W version……………………. : 000500EG;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;

;

WD1600AAJS-40H3A2, DCM HHNNHT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAT25168880;
Model: WD1600AAJS-40H3A2;
Date: 07 JUL 2009;
DCM: HHNNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771577-300 04P;
PCB Revision: 2060-771577-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A00/2560;

;

ROM F/W version: 000500EE;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;

HDD with Serial Number: WCAT26432920;
Model: WD1600AAJS-40H3A2;
Date: 18 MAY 2010;
DCM: HHNNHT2AHN;
Product of: Thailand;
PCB Sticker: 2061-771577-300 06P;
PCB Revision: 2060-771577-001 REV A;
;

;
