WD1600AAJS-00L7A0, DCM DGRCNTJCEN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV28107189;
Model: WD1600AAJS-00L7A0;
Date: 23 OCT 2009;
DCM: DGRCNTJCEN;
Product of: Thailand;
PCB Sticker: 2061-701590-X03 AD;
PCB Revision: 2060-701590-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A1C/2588;

;

ROM F/W version……………………. : 000500F0;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD1600AAJS-00L7A0, DCM DARNHT2CHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV30279151;
Model: WD1600AAJS-00L7A0;
Date: 03 DEC 2008;
DCM: DARNHT2CHN;
Product of: Thailand;
PCB Sticker: 2061-701590-E00 AA;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A12/2578;
ROM F/W version……………………. : 000100C7;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

WD1600AAJS-00D1A0, DCM HHRNHTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS26762353;
Model: WD1600AAJS-00D1A0;
Date: 02 AUG 2008;
DCM: HHRNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A8C/2700;
1 : 1 : A46/2630;
ROM F/W version……………………. : 005C008H;
Heads map…………………………. : 0,1;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;

;

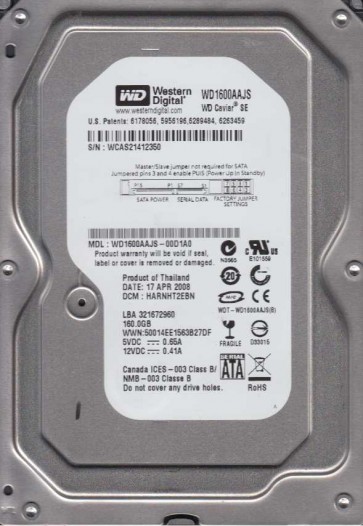

WD1600AAJS-00D1A0, DCM HARNHT2EBN, Western Digital 160GB SATA 3.5 Hard Drive

Specifications:;
Model WD1600AAJS-00D1A0;
SN WCAS21412350;
Date 17 APR 2008;
DCM HARNHT2EBN;
Product of Thailand;
PCB Sticker: 2061-701477-900 AE;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AD4/2772;
1   : 1   : A78/2680;
ROM F/W version……………………. : 005C008H;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;

;

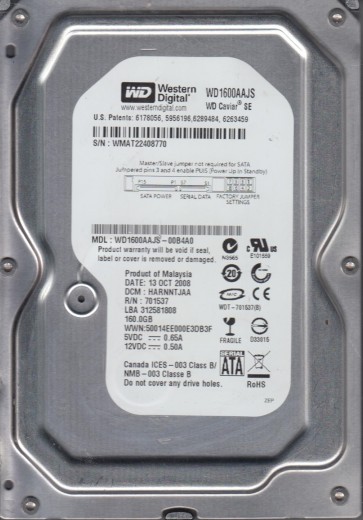

WD1600AAJS-00B4A0, DCM HARNNTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAT22408770;
Model: WD1600AAJS-00B4A0;
Date: 13 OCT 2008;
DCM: HARNNTJAA;
Product of: Malaysia;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A8E/2702;
ROM F/W version……………………. : 00050079;
Heads map…………………………. : 0;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0003;
;
;
;

;

WD1600AAJS-00B4A0, DCM DANNHT2AAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAT20820010;
Model: WD1600AAJS-00B4A0;
Date: 25 JUL 2008;
DCM: DANNHT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701537-G00 AE;
PCB Revision: 2060-701537-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 996/2454;
ROM F/W version……………………. : 0005007A;
Heads map…………………………. : 0;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;

;

WD1600AAJB-57PVA0, DCM HARNHT2AGN, Western Digital 160GB IDE 3.5 Hard Drive

HDD with Serial Number: WCAP9C149875;
Model: WD1600AAJB-57PVA0;
Date: 16 APR 2008;
DCM: HARNHT2AGN;
Product of: Thailand;
PCB Sticker: 2061-701494-100 AF;
PCB Revision: 2060-701494-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 6E4/1764;
1   : 1   : 712/1810;
ROM F/W version……………………. : 0021008B;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision…………………. : 0x0004;
;
;
;

;

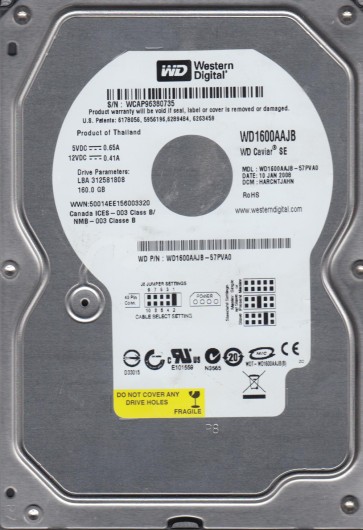

WD1600AAJB-57PVA0, DCM HARCNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAP96380735;
Model: WD1600AAJB-57PVA0;
Date: 10 JAN 2008;
DCM: HARCNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701494-100 AD;
PCB Revision: 2060-701494-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 6F8/1784;
1 : 1 : 6D0/1744;

;

ROM F/W version……………………. : 0021007V;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

;
;

;
