HDD #1 Specs:;
Serial Number: WCAVY5788147;
Model: WD15EVDS-63T3B0;
Date: 29 SEP 2010;
DCM: HBRNNV2AAB;
Product of: Thailand;
PCB Sticker: 2061-771642-N00 AC;
PCB Revision: 2060-771642-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B89/2953;
1   : 2   : BC8/3016;
2   : 3   : B31/2865;
3   : 4   : B91/2961;
4   : 5   : B3F/2879;
5   : 6   : B73/2931;
6   : 7   : B63/2915;
ROM F/W version……………………. : 00900095;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAVY2218409;
Model: WD15EVDS-63T3B0;
Date: 29 JAN 2010;
DCM: HBRCHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-771642-F00 04P;
PCB Revision: 2060-771642-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B8A/2954;
1   : 1   : B92/2962;
2   : 3   : B93/2963;
3   : 4   : AF6/2806;
4   : 5   : B6F/2927;
5   : 6   : AED/2797;
6   : 7   : B6A/2922;
ROM F/W version……………………. : 00900068;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

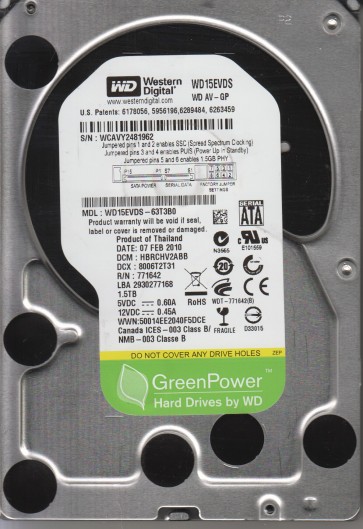

HDD #1 Specs:;
SN: WCAVY2481962;
Model: WD15EVDS-63T3B0;
Date: 07 FEB 2010;
DCM: HBRCHV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-771642-N00 03PD3;
PCB Revision: 2060-771642-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BB0/2992;
1   : 2   : BD9/3033;
2   : 3   : B21/2849;
3   : 4   : BDA/3034;
4   : 5   : B31/2865;
5   : 6   : BDE/3038;
6   : 7   : B2E/2862;
ROM F/W version……………………. : 00900068;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

HDD #1 Specs:;
SN: WCAVY2481208;
Model: WD15EVDS-63T3B0;
Date: 07 FEB 2010;
DCM: HARCHV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-771642-F00 04P;
PCB Revision: 2060-771642-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B7E/2942;
1   : 1   : B50/2896;
2   : 2   : B80/2944;
3   : 3   : B47/2887;
4   : 4   : BA5/2981;
5   : 5   : B58/2904;
6   : 6   : BBC/3004;
ROM F/W version……………………. : 00900068;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;
;

;

;
;

;

HDD with Serial Number: WCAZA4846136;
Model: WD15EURS-63S48Y0;
Date: 28 FEB 2011;
DCM: HHRNNTJCHB;
Product of: Thailand;
PCB Sticker: 771698-802 08P;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C64/3172;
1   : 1   : CC3/3267;
2   : 2   : C52/3154;
3   : 5   : CB7/3255;
4   : 7   : CCF/3279;
ROM F/W version……………………. : 00220000;
Heads map…………………………. : 0,1,2,5,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

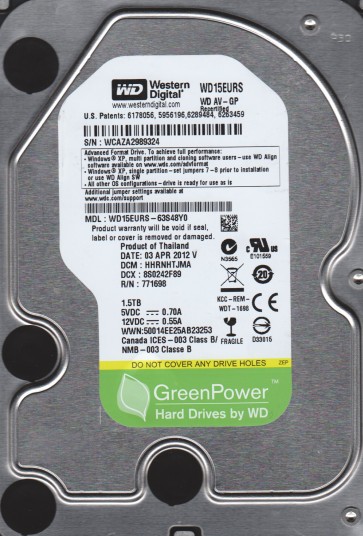

Specifications;
SN: WCAZA2989324;
Model: WD15EURS-63S48Y0;
Date: 03 APR 2012 V;
DCM: HHRNHTJMA
R/N 771698;
Product of: Thailand;
PCB Sticker: 2061-771698-802 07P;
PCB Revision: 2060-771698-002 REV P1;

;

;

Specifications;
SN: WCAZAH509976;
Model: WD15EURS-63S48Y0;
Date: 14 SEP 2012;
DCM: HARNNTJMAB ;
Product of: Thailand;
PCB Sticker: 771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : CB2/3250;
1   : 1   : C23/3107;
2   : 2   : C11/3089;
3   : 5   : C39/3129;
4   : 6   : C34/3124;
5   : 7   : C60/3168;
ROM F/W version……………………. : 00270054;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

HDD with Serial Number: WCAZA9483380;
Model: WD15EARX-22PASB0;
Date: 10 AUG 2011;
DCM: HHNNHTJCAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AB;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CA5/3237;
1 : 1 : C3D/3133;
2 : 2 : C95/3221;
3 : 5 : C49/3145;
4 : 6 : C82/3202;
5 : 7 : C21/3105;
ROM F/W version……………………. : 00200094;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

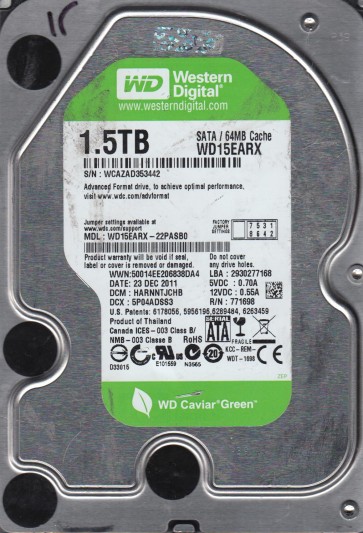

HDD with Serial Number: WCAZAD353442;
Model: WD15EARX-22PASB0;
Date: 23 DEC 2011;
DCM: HARNNTJCHB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AB;
PCB Revision: 2060-771698-002 REV P2;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BC4/3012;
1   : 1   : C07/3079;
2   : 2   : BAA/2986;
3   : 5   : C04/3076;
4   : 6   : BA9/2985;
ROM F/W version……………………. : 002000A6;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

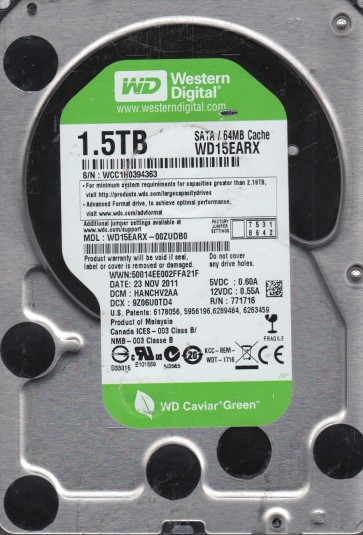

HDD with Serial Number: WCC1H0394363;
Model: WD15EARX-00ZUDB0;
Date: 23 NOV 2011;
DCM: HANCHV2AA;
Product of: Malaysia;
PCB Sticker: 2061-771716-201 AA;
PCB Revision: 2060-771716-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D74/3444;
1 : 1 : D10/3344;
2 : 2 : D86/3462;
3 : 3 : D2D/3373;
4 : 5 : D25/3365;
ROM F/W version……………………. : 0090000A;
Heads map…………………………. : 0,1,2,3,5;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0003;

;
