HDD with Serial Number: WMAVU2747653;
Model: WD15EARS-00Z5B1;
Date: 24 FEB 2010;
DCM: HANYNT2MB;
Product of: Malaysia;
PCB Sticker: 2061-701640-802 01PD2;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : C16/3094;
1 : 3 : C2D/3117;
2 : 4 : C3F/3135;
3 : 5 : C45/3141;
4 : 6 : C00/3072;
5 : 7 : C5D/3165;

;

ROM F/W version……………………. : 008000CM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WMAVU2285023;
Model: WD15EARS-00Z5B1;
Date: 13 FEB 2010;
DCM: HANYNT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-802 01PD2;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : CC5/3269;
1 : 3 : C5C/3164;
2 : 4 : C8D/3213;
3 : 5 : C23/3107;
4 : 6 : C69/3177;
5 : 7 : C64/3172;
ROM F/W version……………………. : 008000CM;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU2662581;
Model: WD15EARS-00Z5B1;
Date: 22 FEB 2010;
DCM: HANYHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-802 01PD4;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : CB7/3255;
1 : 3 : C89/3209;
2 : 4 : CAB/3243;
3 : 5 : C87/3207;
4 : 6 : CCC/3276;
5 : 7 : CE8/3304;

;

ROM F/W version……………………. : 008000CM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WMAVU1077269;
Model: WD15EARS-00Z5B1;
Date: 30 NOV 2009;
DCM: HANYHT2CB;
Product of: Malaysia;
PCB Sticker: 2061-701640-802 01PD1;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : C57/3159;
1 : 3 : C20/3104;
2 : 4 : C9A/3226;
3 : 5 : BD8/3032;
4 : 6 : C6E/3182;
5 : 7 : BFD/3069;
ROM F/W version……………………. : 008200BT;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD #1 Specs:;
SN: WCAVY2632693;
Model: WD15EARS-00S8B1;
Date: 05 DEC 2012;
DCM: HBRNHT2AB ;
Product of: Thailand;
PCB Sticker: 2061-771642-X01 01PD2;
PCB Revision: 2060-771642-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C2E/3118;
1   : 1   : C9F/3231;
2   : 2   : C62/3170;
3   : 4   : C5E/3166;
4   : 5   : C62/3170;
5   : 6   : C74/3188;
6   : 7   : C82/3202;
;
;

;

HDD with Serial Number: WCAVY2949019;
Model: WD15EARS-00S8B1;
Date: 12 MAR 2010;
DCM: HBRCHT2CBB;
Product of: Thailand;
PCB Sticker: 2061-771642-X01 01PD2;
PCB Revision: 2060-771642-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C6C/3180;
1 : 1 : CD7/3287;
2 : 2 : C67/3175;
3 : 3 : CDF/3295;
4 : 4 : CA1/3233;
5 : 5 : CD6/3286;
ROM F/W version……………………. : 008000CM;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAVY2959786;
Model: WD15EARS-00S8B1;
Date: 05 MAR 2010;
DCM: HBRCHT2ABB;
Product of: Thailand;
PCB Sticker: 2061-771642-X01 01PD2;
PCB Revision: 2060-771642-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : CE5/3301;
1   : 2   : C73/3187;
2   : 3   : C6A/3178;
3   : 4   : C75/3189;
4   : 5   : C83/3203;
5   : 6   : C72/3186;
6   : 7   : C7D/3197;
ROM F/W version……………………. : 008000CM;
Heads map…………………………. : 1,2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WCAVY2791237;
Model: WD15EARS-00S8B1;
Date: 21 FEB 2010;
DCM: HARNHT2ABB;
Product of: Thailand;
PCB Sticker: 2061-771642-X01 01PD2;
PCB Revision: 2060-771642-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C72/3186;
1 : 1 : C5A/3162;
2 : 3 : C63/3171;
3 : 4 : C12/3090;
4 : 5 : C79/3193;
5 : 6 : C93/3219;
6 : 7 : C6A/3178;
ROM F/W version……………………. : 008000CM;
Heads map…………………………. : 0,1,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

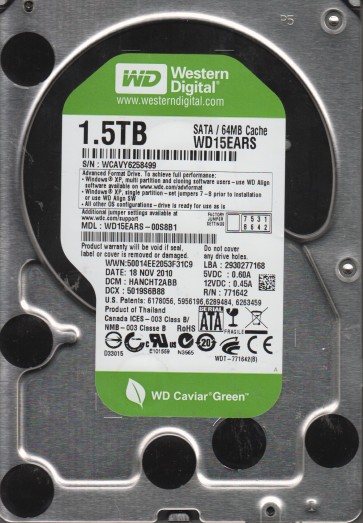

Specifications;
SN: WCAVY6258499;
Model: WD15EARS-00S8B1;
Date: 18 NOV 2010;
DCM: HANCHT2ABB ;
Product of: Thailand;
PCB Sticker: 2061-771642-X01 AG;
PCB Revision: 2060-771642-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : C46/3142;
1   : 2   : C4F/3151;
2   : 3   : C76/3190;
3   : 4   : C32/3122;
4   : 5   : C66/3174;
5   : 6   : CBA/3258;
6   : 7   : C5B/3163;
;
;

;

Specifications;
SN: WCC1H0015675;
Model: WD15EARS-00S0XB0;
Date: 08 JUN 2011;
DCM: HBRCNT2ABB ;
Product of: THAILAND;
PCB Sticker: 2061-771716-201 05P;
PCB Revision: 2060-771716-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : D1F/3359;
1   : 2   : CF9/3321;
2   : 3   : D5B/3419;
3   : 4   : CCD/3277;
4   : 5   : CF9/3321;
ROM F/W version……………………. : 0090000A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;
