HDD with Serial Number: WMAVU4002328;
Model: WD15EADS-11P8B2;
Date: 07 DEC 2010;
DCM: HARNHV2MA;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : B50/2896;
1 : 3 : B61/2913;
2 : 4 : ADE/2782;
3 : 5 : B17/2839;
4 : 6 : AD9/2777;
5 : 7 : B35/2869;
ROM F/W version……………………. : 0015001V;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

Specifications;
SN: WMAVU3755220;
Model: WD15EADS-11P8B2;
Date: 08 SEP 2010;
DCM: HARCHT2MH ;
Product of: Malaysia;
PCB Sticker: 2061-701640-407 01PD3;
PCB Revision: 2060-701640-007 REV A;

;

;

HDD with Serial Number: WMAVU1226543;
Model: WD15EADS-11P8B1;
Date: 08 DEC 2009;
DCM: HHNYHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : BDB/3035;
1 : 3 : C75/3189;
2 : 4 : C09/3081;
3 : 5 : C74/3188;
4 : 6 : CB5/3253;
5 : 7 : C7B/3195;

;

;
ROM F/W version: 008000CA;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WMAVU1221354;
Model: WD15EADS-11P8B1;
Date: 07 DEC 2009;
DCM: HHNYHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : CE1/3297;
1 : 3 : CDC/3292;
2 : 4 : CF6/3318;
3 : 5 : CB5/3253;
4 : 6 : CEE/3310;
5 : 7 : C4C/3148;
;
ROM F/W version: 008000CA;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD with Serial Number: WMAVU0946324;
Model: WD15EADS-11P8B1;
Date: 24 NOV 2009;
DCM: HBRYHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : BDC/3036;
1 : 3 : BC7/3015;
2 : 4 : C1F/3103;
3 : 5 : BE6/3046;
4 : 6 : BEA/3050;
5 : 7 : BED/3053;
ROM F/W version……………………. : 008100BT;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU1623144;
Model: WD15EADS-11P8B1;
Date: 03 JAN 2010;
DCM: HBNYHT2CH;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : CDF/3295;
1 : 3 : C1A/3098;
2 : 4 : CC0/3264;
3 : 5 : C59/3161;
4 : 6 : CCC/3276;
5 : 7 : C14/3092;
ROM F/W version……………………. : 008000CM;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

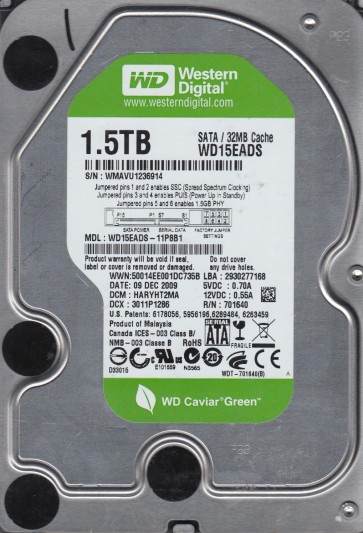

HDD with Serial Number: WMAVU1236914;
Model: WD15EADS-11P8B1;
Date: 09 DEC 2009;
DCM: HARYHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : CBA/3258;
1   : 3   : CE2/3298;
2   : 4   : CC1/3265;
3   : 5   : CE7/3303;
4   : 6   : CC2/3266;
5   : 7   : CF0/3312;
ROM F/W version……………………. : 008000CA;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAVY6821417;
Model: WD15EADS-00W4B0;
Date: 06 JUN 2014;
DCM: HARCHV2AB;
Product of: Thailand;
PCB Sticker: 2061-771642-W03 AB;
PCB Revision: 2060-771642-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF4/3060;
1 : 1 : AEC/2796;
2 : 2 : BD8/3032;
3 : 4 : BF0/3056;
4 : 5 : BA4/2980;
5 : 6 : BF8/3064;

;

ROM F/W version……………………. : 00050019;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

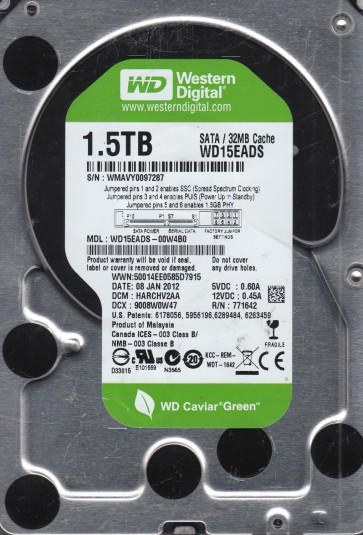

HDD with Serial Number: WMAVY0097287;
Model: WD15EADS-00W4B0;
Date: 08 JAN 2012;
DCM: HARCHV2AA;
Product of: Malaysia;
PCB Sticker: 2061-771642-W03 AD;
PCB Revision: 2060-771642-003 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BD4/3028;
1 : 1 : B44/2884;
2 : 2 : B4C/2892;
3 : 3 : B64/2916;
4 : 5 : B5C/2908;
5 : 6 : B6C/2924;
ROM F/W version……………………. : 00050019;
Heads map…………………………. : 0,1,2,3,5,6;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WCAVY5084066;
Model: WD15EADS-00S2B0;
Date: 09 NOV 2013;
DCM: HBRCNV2AA;
Product of: Thailand;
PCB Sticker: 2061-771642-P00 ACD5;
PCB Revision: 2060-771642-001 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B2F/2863;
1 : 2 : B45/2885;
2 : 3 : B03/2819;
3 : 4 : B39/2873;
4 : 5 : AE6/2790;
5 : 6 : B56/2902;
6 : 7 : AE3/2787;

;

ROM F/W version: 0006001J;
Heads map: 0,2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;
