HDD with Serial Number: WCAVU0389789;
Model: WD15EADS-00P8B0;
Date: 20 OCT 2009;
DCM: HANNHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-202 03PD2;
PCB Revision: 2060-701640-002 REV A;

;

ROM F/W version……………………. : 0070002J;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
Heads map…………………………. : 2,3,4,5,6,7;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : D36/3382;
1 : 3 : C69/3177;
2 : 4 : C98/3224;
3 : 5 : C6F/3183;
4 : 6 : CA3/3235;
5 : 7 : CE1/3297;

;

;
;

;

HDD #1 Specs:;
SN: WCAVU0293572;
Model: WD15EADS-00P8B0;
Date: 01 OCT 2009;
DCM: HANCNT2MA ;
Product of: Malaysia;
PCB Sticker: 2061-701640-700 02P;
PCB Revision: 2060-701640-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : C86/3206;
1   : 3   : CC8/3272;
2   : 4   : CE7/3303;
3   : 5   : CA0/3232;
4   : 6   : CCA/3274;
5   : 7   : CA6/3238;
;
;

;

Specifications;
SN: WCAVU0336342;
Model: WD15EADS-00P8B0;
Date: 07 OCT 2009;
DCM: HANCNT2CAB ;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD1;
PCB Revision: 2060-701640-001 REV A;

;

;

HDD with Serial Number: WCAVU0210697;
Model: WD15EADS-00P8B0;
Date: 19 SEP 2009;
DCM: HANCHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD1;
PCB Revision: 2060-701640-001 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : D0B/3339;
1 : 3 : CBD/3261;
2 : 4 : D1A/3354;
3 : 5 : CF0/3312;
4 : 6 : D04/3332;
5 : 7 : CB3/3251;

;

ROM F/W version: 00900018;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

Specifications;
SN: WCAVU0334216;
Model: WD15EADS-00P8B0;
Date: 06 OCT 2009;
DCM: HANCHT2CHB ;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02P;
PCB Revision: 2060-701640-001 REV A;

;

;

HDD with Serial Number: WCAUP0016167;
Model: WD15EADS-00H7B0;
Date: 22 DEC 2008;
DCM: HBRCHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701595-B00 03P;
PCB Revision: 2060-701595-001 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF6/3062;
1 : 1 : B1E/2846;
2 : 2 : BAD/2989;
3 : 3 : AF5/2805;
4 : 4 : B98/2968;
5 : 5 : B1C/2844;
6 : 6 : BE0/3040;
7 : 7 : B34/2868;

;

ROM F/W version……………………. : 00010016;
Preamp vendor 0x0000;
Preamp revision 0x0003;

;

HDD with Serial Number: WCAUP0012618;
Model: WD15EADS-00H7B0;
Date: 22 DEC 2008;
DCM: HBRCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701595-900 07P;
PCB Revision: 2060-701595-000 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF2/3058;
1 : 1 : B7C/2940;
2 : 2 : B99/2969;
3 : 3 : B7C/2940;
4 : 4 : B6D/2925;
5 : 5 : B10/2832;
6 : 6 : B4A/2890;
7 : 7 : B38/2872;
ROM F/W version……………………. : 00010016;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

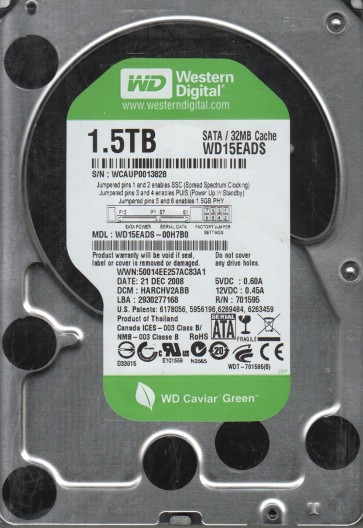

Specifications;
SN: WCAUP0013828;
Model: WD15EADS-00H7B0;
Date: 21 DEC 2008;
DCM: HARCHV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-701595-900 07P;
PCB Revision: 2060-701595-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C18/3096;
1   : 1   : BB1/2993;
2   : 2   : C07/3079;
3   : 3   : BA4/2980;
4   : 4   : BE2/3042;
5   : 5   : B7C/2940;
6   : 6   : BAD/2989;
7   : 7   : B71/2929;
ROM F/W version……………………. : 00010016;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;
;
;

;

Specifications;
SN: WCAUP0012584;
Model: WD15EADS-00H7B0;
Date: 21 DEC 2008;
DCM: HARCHV2AAB ;
Product of: Thailand;
PCB Sticker: 2061-701595-900 07P;
PCB Revision: 2060-701595-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B85/2949;
1   : 1   : B5E/2910;
2   : 2   : B5B/2907;
3   : 3   : B2C/2860;
4   : 4   : B68/2920;
5   : 5   : AAC/2732;
6   : 6   : B74/2932;
7   : 7   : AF9/2809;
ROM F/W version……………………. : 00010016;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

Specifications;
SN: WCAZA2953363;
Model: WD15EACS-11BHUB0;
Date: 27 DEC 2010;
DCM: HHRNHTJMAB ;
Product of: Thailand;
PCB Sticker: 771698-R02 AA;
PCB Revision: 2060-771698-002 REV P2;

;

;
