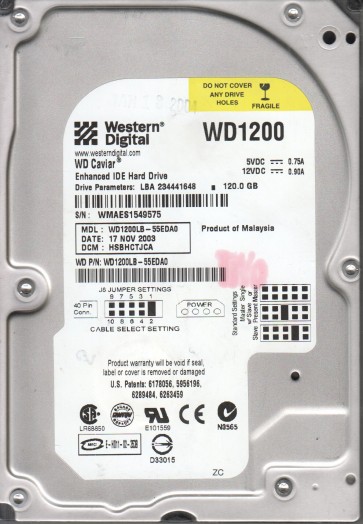

WD1200LB-55EDA0, DCM HSBHCTJCA, Western Digital 120GB IDE 3.5 Hard Drive

Specifications;
SN: WMAES1549575;
Model: WD1200LB-55EDA0;
Date: 17 NOV 2003;
DCM: HSBHCTJCA ;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DE;
PCB Revision: 2060-001173-004 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,4,5;
ROM version……………………….. : 15.BE.;
;
;
;
;

;

WD1200LB-55EDA0, DCM FSBACTJAH, Western Digital 120GB IDE 3.5 Hard Drive

HDD with Serial Number: WMAET1066529;
Model: WD1200LB-55EDA0;
Date: 04 OCT 2003;
DCM: FSBACTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DC;
PCB Revision: 2060-001173-004 REV A;
;

ROM version……………………….. : 15.39.;
Head map………………………….. : 0,1,5;

;

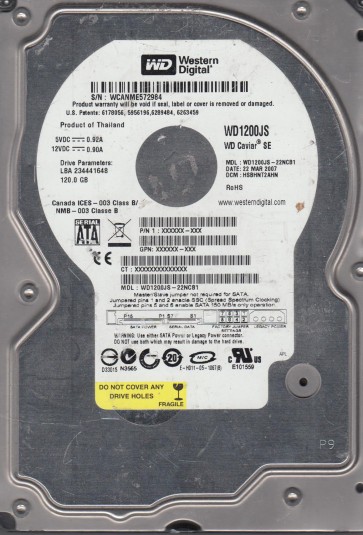

WD1200JS-22NCB1, DCM HSBHNT2AHN, Western Digital 120GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANME572984;
Model: WD1200JS-22NCB1;
Date: 22 MAR 2007;
DCM: HSBHNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 4B0/1200;
1 : 4 : 496/1174;
2 : 5 : 4A2/1186;
ROM F/W version……………………. : 109ME;
Heads map…………………………. : 1,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

WD1200JS-22NCB1, DCM DSBHYT2AAN, Western Digital 120GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANMD495454;
Model: WD1200JS-22NCB1;
Date: 09 MAR 2007;
DCM: DSBHYT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A0/1184;
1 : 4 : 496/1174;
2 : 5 : 4CA/1226;
ROM F/W version……………………. : 109ME;
Heads map…………………………. : 0,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

WD1200JS-00NCB1, DCM HSCHNT2AH, Western Digital 120GB SATA 3.5 Hard Drive

Specifications;
SN: WCANP1125916;
Model: WD1200JS-00NCB1;
Date: 26 APR 2006;
DCM: HSCHNT2AH ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AH;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 49C/1180;
1   : 1   : 488/1160;
2   : 4   : 47A/1146;
;
;

;

WD1200JS-00NCB1, DCM HSBHYTJCAB, Western Digital 120GB SATA 3.5 Hard Drive

Specifications;
SN: WCANN1276401;
Model: WD1200JS-00NCB1;
Date: 12 DEC 2006;
DCM: HSBHYTJCAB ;
Product of: Thailand;
PCB Sticker: 2061-701335-E00 AL;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4BE/1214;
1   : 1   : 4C6/1222;
2   : 5   : 4CE/1230;
ROM F/W version……………………. : 101GE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

WD1200JS-00NCB1, DCM HSBANTJCAN, Western Digital 120GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANMC736040;
Model: WD1200JS-00NCB1;
Date: 01 MAR 2007;
DCM: HSBANTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 4A8/1192;
1 : 4 : 4C4/1220;
2 : 5 : 496/1174;

;

ROM F/W: 109GE;
Heads map: 1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;
