Specifications;
SN: WCANN1012525;
Model: WD1200JS-00MHB0;
Date: 20 JUN 2005;
DCM: DSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-701335-800 AD;
PCB Revision: 2060-701335-003 REV A;

;

;

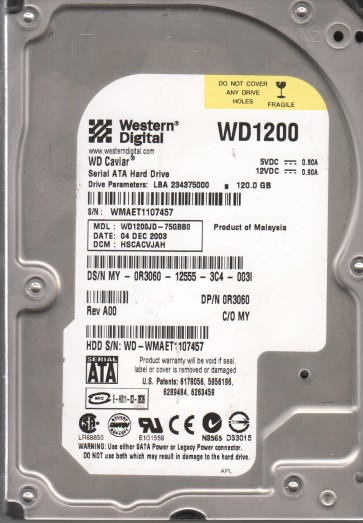

Specifications;
SN: WMAET1107457;
Model: WD1200JD-75GBB0;
Date: 04 DEC 2003;
DCM: HSCACVJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001215-200 AGD6;
PCB Revision: 2060-00125-002 REV A;

;

Read ROM………………………….. : Ok;
ROM version……………………….. : 02.11D;
ROM generation…………………….. : 02.11D;
Link table version…………………. : 05.E2.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 3;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,5;
;
;

;

HDD #1 Specs:;
Serial Number: WMAET1403223;
Model: WD1200JD-75GBB0;
Date: 30 JAN 2004;
DCM: HSBHCVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AF;
PCB Revision: 2060-001215-003 REV A;

;

ROM version……………………….. : 02.17D;
Head map………………………….. : 0,1,5;
;
;
;

;

HDD with Serial Number: WMAET2076444;
Model: WD1200JD-75GBB0;
Date: 04 MAY 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AH;
PCB Revision: 2060-001215-003 REV A;
ROM version……………………….. : 02.1MD;
ROM generation…………………….. : 02.1MD;
Link table version…………………. : 05.FD.;
Head map………………………….. : 0,1,5;

;

HDD with Serial Number: WMAET1323840;
Model: WD1200JD-75GBB0;
Date: 26 FEB 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AG;
PCB Revision: 2060-001215-003 REV A;
ROM version……………………….. : 02.1BD;
ROM generation…………………….. : 02.1BD;
Link table version…………………. : 05.F9.;
Head map………………………….. : 0,1,5;

;

HDD with Serial Number: WMAET1365427;
Model: WD1200JD-75GBB0;
Date: 10 JAN 2004;
DCM: HSBACVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AD;
PCB Revision: 2060-001215-003 REV A;
;

ROM version……………………….. : 02.17D;
Head map………………………….. : 0,1,5;

;

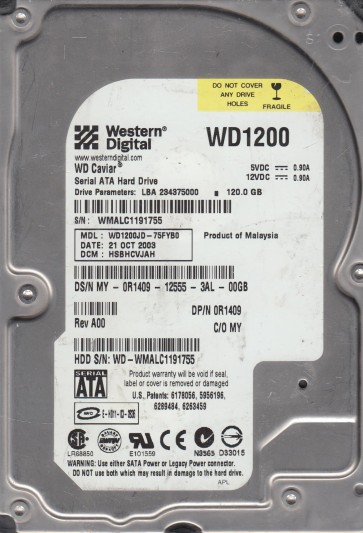

HDD with Serial Number: WMALC1191755;
Model: WD1200JD-75FYB0;
Date: 21 OCT 2003;
DCM: HSBHCVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001215-200 AGD6;
PCB Revision: 2060-001215-002 REV A;

;

ROM version……………………….. : 02.11D;
Head map………………………….. : 0,1,4;

;

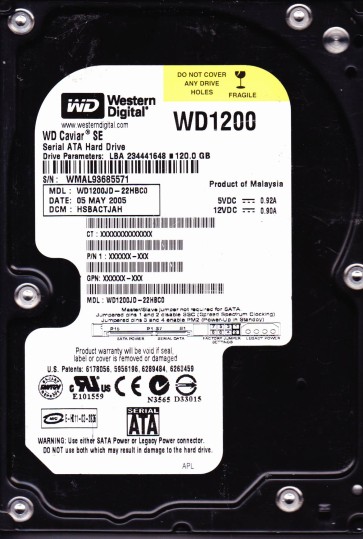

Specifications:;
SN WMAL93685571;
Model WD1200JD-22HBC0;
Date 05 MAY 2005;
DCM HSBACTJAH
Product of Malaysia;
PCB Sticker: 2061-701267-200 AK;
PCB Revision: 2060-701267-001 REV A;
ROM version……………………….. : 21.97J;
Head map………………………….. : 0,1,4,5;

;

HDD with Serial Number: WMALA1029507;
Model: WD1200JD-22HBB0;
Date: 06 JUL 2004;
DCM: HSCACTJCA;
Product of: Malaysia;
PCB Sticker: 2061-001267-000 AD;
PCB Revision: 2060-001267-001 REV A;
;

;

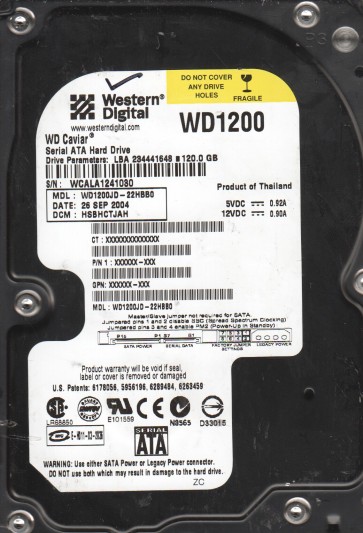

HDD #1 Specs:;
SN: WCALA1241030;
Model: WD1200JD-22HBB0;
Date: 26 SEP 2004;
DCM: HSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001267-000 AG;
PCB Revision: 2060-001267-001 REV A;

;

;
ROM version……………………….. : 08.9TD;
Head map………………………….. : 0,1,5;
;
;

;

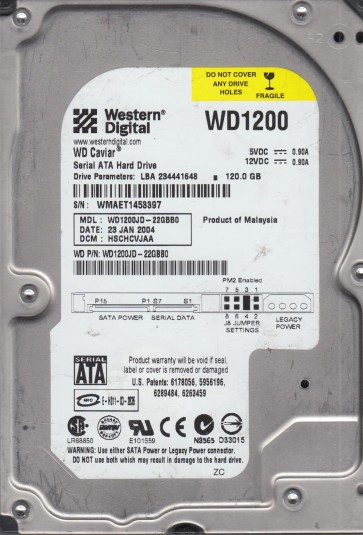

HDD with Serial Number: WMAET1453397;
Model: WD1200JD-22GBB0;
Date: 23 JAN 2004;
DCM: HSCHCVJAA;
Product of: Malaysia;
PCB Sticker: 2061-001215-400 AF;
PCB Revision: 2060-001215-003 REV A;
;

;
