HDD with Serial Number: WXE908J2F498;
Model: WD1200BEVT-22ZCT0;
Date: 15 SEP 2008;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AE;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 94B/2379;
1 : 1 : 8CA/2250;
ROM F/W version……………………. : 0008000W;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

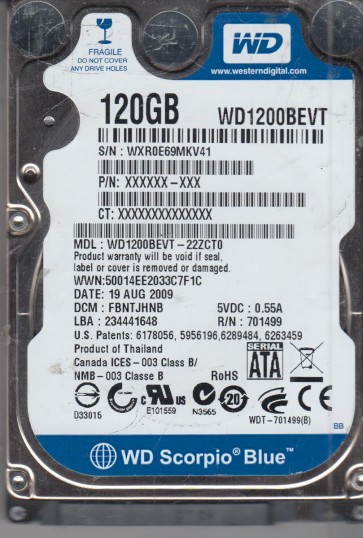

HDD with Serial Number: WXR0E69MKV41;
Model: WD1200BEVT-22ZCT0;
Date: 19 AUG 2009;
DCM: FBNTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 90C/2316;
1 : 1 : 8AC/2220;
ROM F/W version……………………. : 00080031;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXK1A81F8052;
Model: WD1200BEVT-22A23T0;
Date: 25 SEP 2011;
DCM: HHBVJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AD;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B0A/2826;
ROM F/W version……………………. : 00160027;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

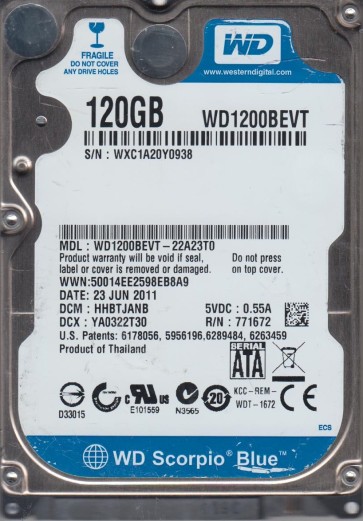

HDD with Serial Number: WXC1A20Y0938;
Model: WD1200BEVT-22A23T0;
Date: 23 JUN 2011;
DCM: HHBTJANB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 03PD1;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A26/2598;
ROM F/W version……………………. : 001600DH;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

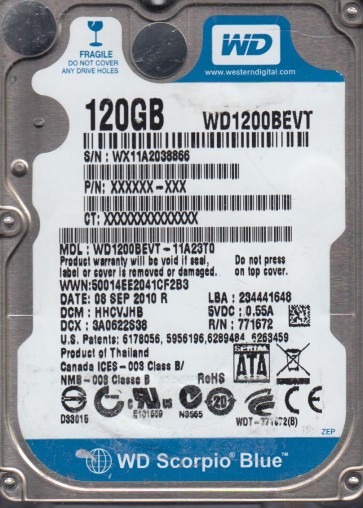

HDD #1 Specs:;
Serial Number: WX11A2038866;
Model: WD1200BEVT-11A23T0;
Date: 08 SEP 2010;
DCM: HHCVJHB;
Product of: Thailand;
PCB Sticker: 2061-771672-001 AED1;
PCB Revision: 2060-771672-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : BA2/2978;

;

ROM F/W version……………………. : 001400E7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD #1 Specs:;
Serial Number: WXB1A40Y2082;
Model: WD1200BEVT-00A23T0;
Date: 02 MAY 2010;
DCM: HHMTJHB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : AA4/2724;

;

ROM F/W version……………………. : 0014001E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXA1A20U6471;
Model: WD1200BEVT-00A23T0;
Date: 17 MAR 2010;
DCM: HHCTJABB;
Product of: Thailand;
PCB Sticker: 2061-771672-004 03PD2;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : A28/2600;
ROM F/W version……………………. : 001400DD;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WX51A30L8613;
Model: WD1200BEVT-00A23T0;
Date: 06 APR 2010;
DCM: HHBTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 AA;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : A96/2710;
;
ROM F/W version……………………. : 0014001D;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

Specifications;
SN: WX61A20F1060;
Model: WD1200BEVT-00A23T0;
Date: 09 MAR 2010;
DCM: HECTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-771672-F04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

;

HDD #1 Specs:;
Serial Number: WX60AC9R9248;
Model: WD1200BEVT-00A23T0;
Date: 30 DEC 2009;
DCM: HEBTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-001 AE;
PCB Revision: 2060-771672-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AAC/2732;

;

ROM F/W version……………………. : 001300CB;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
