WD10TPVT-00U4RT1, DCM EBBT2HNB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXH1E61HELZ2;
Model: WD10TPVT-00U4RT1;
Date: 06 AUG 2011;
DCM: EBBT2HNB;
Product of: Thailand;
PCB Sticker: 771692-A05 AAD1;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B86/2950;
1 : 1 : B96/2966;
2 : 2 : BBC/3004;
3 : 3 : BB2/2994;
4 : 4 : B14/2836;
5 : 5 : BD0/3024;

;

ROM F/W: 0008000C;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0000;
Preamp revision: 0x0006;

;

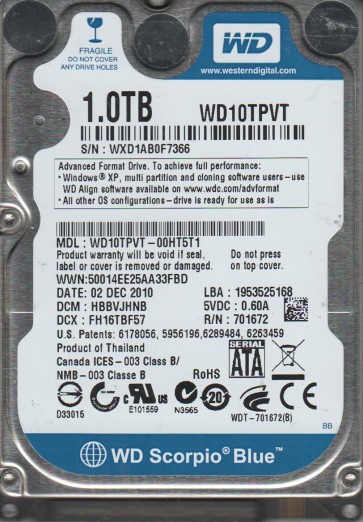

WD10TPVT-00HT5T1, DCM HBBVJHNB, Western Digital 1TB SATA 2.5 Hard Drive

Specifications;
SN: WXD1AB0F7366;
Model: WD10TPVT-00HT5T1;
Date: 02 DEC 2010;
DCM: HBBVJHNB ;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 03P;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B00/2816;
1   : 1   : B5C/2908;
2   : 2   : B8C/2956;
3   : 3   : BD6/3030;
4   : 4   : B88/2952;
5   : 5   : B24/2852;
;
;

;

WD10TPVT-00HT5T1, DCM HBBVJBBB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXG1AC001182;
Model: WD10TPVT-00HT5T1;
Date: 24 JAN 2011;
DCM: HBBVJBBB;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 03P;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B52/2898;
1 : 1 : AB4/2740;
2 : 2 : B52/2898;
3 : 3 : B80/2944;
4 : 4 : B7E/2942;
5 : 5 : B6E/2926;
ROM F/W version……………………. : 0015001B;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0006;

;

WD10TPVT-00HT5T1, DCM HBBV2HNB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXC1AB0W0029;
Model: WD10TPVT-00HT5T1;
Date: 06 DEC 2010;
DCM: HBBV2HNB;
Product of: Thailand;
PCB Sticker: 2061-771572-L04 02P;
PCB Revision: 2060-771672-004 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BCE/3022;
1   : 1   : AB2/2738;
2   : 2   : BE6/3046;
3   : 3   : A94/2708;
4   : 4   : BC2/3010;
5   : 5   : ABA/2746;
ROM F/W version……………………. : 00150018;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0006;

;

WD10TPVT-00HT5T1, DCM HBBV2HBB, Western Digital 1TB SATA 2.5 Hard Drive

HDD #1 Specs:;
Serial Number: WX81AA0U6131;
Model: WD10TPVT-00HT5T1;
Date: 28 OCT 2010;
DCM: HBBV2HBB;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 02P;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B9A/2970;
1   : 1   : B60/2912;
2   : 2   : B8C/2956;
3   : 3   : B2E/2862;
4   : 4   : BDE/3038;
5   : 5   : BAA/2986;
ROM F/W version……………………. : 00150014;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0006;
;
;
;
;

;

WD10TPVT-00HT5T1, DCM HBBV2BBB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WX61AB0J6112;
Model: WD10TPVT-00HT5T1;
Date: 20 NOV 2010;
DCM: HBBV2BBB;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 03P;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BD2/3026;
1   : 1   : AD6/2774;
2   : 2   : BF2/3058;
3   : 3   : AF6/2806;
4   : 4   : BDE/3038;
5   : 5   : B04/2820;
ROM F/W version……………………. : 00150094;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0006;
;
;
;

;

WD10TPVT-00HT5T1, DCM EHBV2BBB, Western Digital 1TB SATA 2.5 Hard Drive

HDD #1 Specs:;
Serial Number: WX61C8003371;
Model: WD10TPVT-00HT5T1;
Date: 28 OCT 2010;
DCM: EHBV2BBB;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 02P;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B78/2936;
1   : 1   : B6A/2922;
2   : 2   : B96/2966;
3   : 3   : BB2/2994;
4   : 4   : B5A/2906;
5   : 5   : B68/2920;

;

Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0006;
;

;

WD10TPVT-00HT5T1, DCM EBBV2HBB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXR1EA0XEM42;
Model: WD10TPVT-00HT5T1;
Date: 06 DEC 2010;
DCM: EBBV2HBB;
Product of: Thailand;
PCB Sticker: 2061-771672-L04 02P;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B98/2968;
1   : 1   : BB0/2992;
2   : 2   : B7A/2938;
3   : 3   : B6C/2924;
4   : 4   : B76/2934;
5   : 5   : B42/2882;
ROM F/W version……………………. : 00150098;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0006;

;
