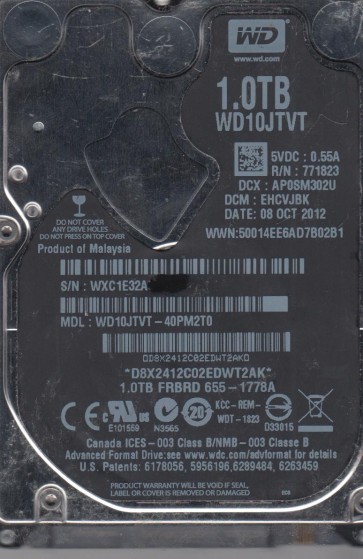

WD10JTVT-40PM2T0, DCM EHCVJBK, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXC1E32AUPS2;
Model: WD10JTVT-40PM2T0;
Date: 08 OCT 2012;
DCM: EHCVJBK;
Product of: Malaysia;
PCB Sticker: 771823-E00 01P;
PCB Revision: 2060-771823-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 103B/4155;
1   : 1   : 1006/4102;
2   : 2   : 1041/4161;
3   : 3   : FED/4077;
ROM F/W version……………………. : 0001003G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;

;

HDD with Serial Number: WXC1E32AUPK7;
Model: WD10JTVT-40PM2T0;
Date: 08 OCT 2012;
DCM: EHCVJBK;
Product of: Malaysia;
PCB Sticker: 771823-E00 01P;
PCB Revision: 2060-771823-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 1015/4117;
1   : 1   : FA8/4008;
2   : 2   : 100F/4111;
3   : 3   : FEE/4078;
ROM F/W version……………………. : 0001003G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;

;

HDD with Serial Number: WXC1E32AUPF1;
Model: WD10JTVT-40PM2T0;
Date: 08 OCT 2012;
DCM: EHCVJBK;
Product of: Malaysia;
PCB Sticker: 771823-E00 01P;
PCB Revision: 2060-771823-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : F26/3878;
1   : 1   : FE1/4065;
2   : 2   : F31/3889;
3   : 3   : FCF/4047;
ROM F/W version……………………. : 0001003G;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;

;

WD10JPVX-80JC3T0, DCM SBKTJHK, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WX81E73KPMM6;

;

Model: WD10JPVX-80JC3T0;
Date: 02 NOV 2013;
DCM: SBKTJHK;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;

;

ROM F/W: 0016000T;
Heads map: 0,1,2,3;
Preamp vendor: 0x0001;
Preamp revision: 0x0000;

;

WD10JPVX-80JC3T0, DCM HBMT2HK, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXE1E559T6DH;
Model: WD10JPVX-80JC3T0;
Date: 12 SEP 2015;
DCM: HBMT2HK;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;

;

ROM F/W version 0016006M Heads map: 0,1,2,3 Preamp vendor: x000 Preamp revision: x0000 Micro Jogs —————————— LH : PH : Micro Jog (Hex/Dec) —————————— 0 : 0 : 00/0 1 : 1 : 00/0 2 : 2 : 00/0 3 : 3 : 00/0;

;

WD10JPVX-80JC3T0, DCM EHMT2HB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXH1E25DY9LK;
Model: WD10JPVX-80JC3T0;
Date: 11 SEP 2015;
DCM: EHMT2HB;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
2 : 2 : 00/0;
3 : 3 : 00/0;
ROM F/W version……………………. : 0016006M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0000;

;

WD10JPVX-80JC3T0, DCM EBMT2HK, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXE1E55CJCEV;
Model: WD10JPVX-80JC3T0;
Date: 12 DEC 2015;
DCM: EBMT2HK;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0016006M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0000;
;
;
;

;

WD10JPVX-80JC3T0, DCM EBMT2HB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WXE1E552JDP9;
Model: WD10JPVX-80JC3T0;
Date: 12 SEP 2015;
DCM: EBMT2HB;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;

;

ROM F/W version 0016006M Heads map: : 0,1,2,3 Preamp vendor: x000 Preamp revision: x0000 Micro Jogs —————————— LH : PH : Micro Jog (Hex/Dec) —————————— 0 : 0 : 00/0 1 : 1 : 00/0 2 : 2 : 00/0 3 : 3 : 00/0;

;

WD10JPVX-75JC3T0, DCM SHOT2HB, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WX41E44ADAF2;
Model: WD10JPVX-75JC3T0;
Date: 06 JUL 2014;
DCM: SHOT2HB;
Product of: Malaysia;
PCB Sticker: 771960-100 AE;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0016001C;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0000;
;
;
;

;

WD10JPVX-75JC3T0, DCM SHOT2BK, Western Digital 1TB SATA 2.5 Hard Drive

HDD with Serial Number: WX31E63TH153;
Model: WD10JPVX-75JC3T0;
Date: 13 OCT 2013;
DCM: SHOT2BK;
Product of: Malaysia;
PCB Sticker: 771960-100 AAD22;
PCB Revision: 2060-771960-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0016000T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0000;

;
