HDD with Serial Number: WX61A45NT4UA;
Model: WD10JCCW-63D4FY2;
Date: 11 JUN 2015;
DCM: HBMTJBK;
Product of: Malaysia;
PCB Sticker: 771961-N01 AA;
PCB Revision: 2060-771961-001 REV B;
;

;

HDD with Serial Number: WXB1E25FD82Y;
Model: WD10JCCW-63D4FY2;
Date: 27 AUG 2015;
DCM: EHMTJHB;
Product of: Malaysia;
PCB Sticker: 771961-N01 AA;
PCB Revision: 2060-771961-001 REV B;
;

;

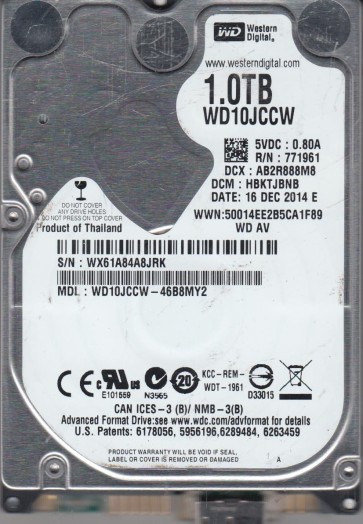

HDD with Serial Number: WX61A84A8JRK;
Model: WD10JCCW-46B8MY2;
Date: 16 DEC 2014;
DCM: HBKTJBNB;
Product of: Thailand;
PCB Sticker: 771961-N01 02P;
PCB Revision: 2060-771961-001 REV A;
;

;

HDD with Serial Number: WXV1E94AH2VX;
Model: WD10J31X-00U3VT0;
Date: 23 MAY 2015;
DCM: SBOT2BB;
Product of: Malaysia;
PCB Sticker: 800044-301 01PD8;
PCB Revision: 2060-800044-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0000000M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0000;

;

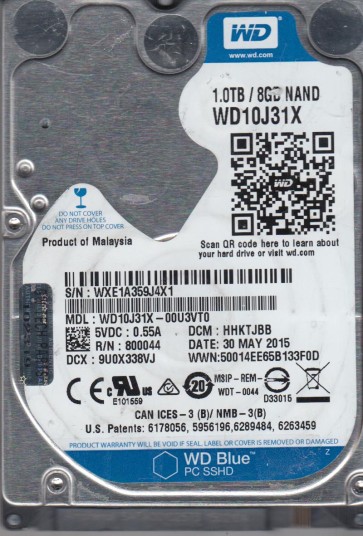

HDD with Serial Number: WXE1A359J4X1;
Model: WD10J31X-00U3VT0;
Date: 30 MAY 2015;
DCM: HHKTJBB;
Product of: Malaysia;
PCB Sticker: 800044-301 01P;
PCB Revision: 2060-800044-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 00000010;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD with Serial Number: WX41A359R6P1;
Model: WD10J31X-00U3VT0;
Date: 23 MAY 2015;
DCM: HBKTJBB;
Product of: Malaysia;
PCB Sticker: 800044-301 01PD8;
PCB Revision: 2060-800044-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0000000M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXN1EC4FSAE9;
Model: WD10J31X-00U3VT0;
Date: 23 MAY 2015;
DCM: EBKTJBB;
Product of: Malaysia;
PCB Sticker: 800044-301 01PD3;
PCB Revision: 2060-800044-001 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
ROM F/W version……………………. : 0000000M;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

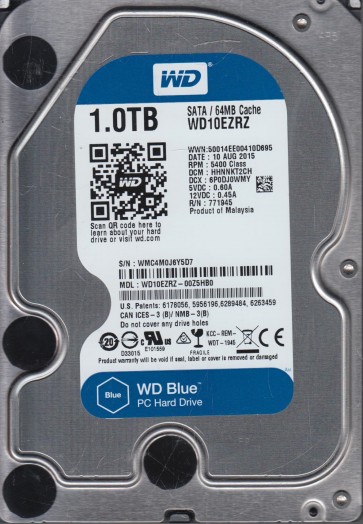

HDD with Serial Number: WMC4M0J6Y5D7;
Model: WD10EZRZ-00Z5HB0;
Date: 10 AUG 2015;
DCM: HHNNKT2CH;
Product of: Malaysia;
PCB Sticker: 771945-202 AB;
PCB Revision: 2060-771945-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 4   : 00/0;
1   : 5   : 00/0;
ROM F/W version……………………. : 00150003;
Heads map…………………………. : 4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

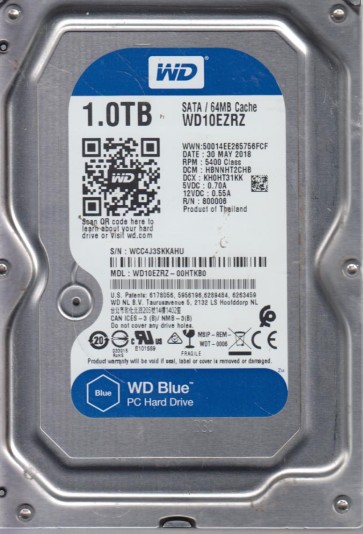

HDD with Serial Number: WCC4J3SKKAHU;
Model: WD10EZRZ-00HTKB0;
Date: 30 MAY 2018;
DCM: HBNNHT2CHB;
Product of: Thailand;
PCB Sticker: 800006-A01 AB;
PCB Revision: 2060-800006-001 REV P1;
;

;

HDD with Serial Number: WCC4J0026295;
Model: WD10EZRX-00L4HB0;
Date: 23 MAY 2013;
DCM: HHRNHT2MEB;
Product of: Thailand;
PCB Sticker: 771945-400 04P;
PCB Revision: 2060-771945-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 00010026;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;
;
;
;

;
