HDD with Serial Number: WMAV52273211;
Model: WD10EVDS-63U8B0;
Date: 03 MAY 2010;
DCM: DBNNNT2CGB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 AD;
PCB Revision: 2060-701640-001 REV A;
;

ROM F/W version 00900084 ;
Heads map   0,1,2,3;
Preamp vendor: x0000;
Preamp revision: x0002;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C97/3223;
1   : 1   : BF2/3058;
2   : 2   : CD7/3287;
3   : 3   : D0D/3341

;

HDD with Serial Number: WMAV52284435;
Model: WD10EVDS-63U8B0;
Date: 03 MAY 2010;
DCM: DBNNHT2CGB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 AD;
PCB Revision: 2060-701640-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C94/3220;
1 : 1 : CC6/3270;
2 : 2 : C64/3172;
3 : 3 : C54/3156;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
ROM F/W version……………………. : 00900084;

;

HDD with Serial Number: WCAV5E999804;
Model: WD10EVDS-63U8B0;
Date: 13 JUL 2010;
DCM: DANNNV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 AD;
PCB Revision: 2060-701640-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACB/2763;
1 : 1 : B60/2912;
2 : 2 : B0E/2830;
3 : 3 : B09/2825;
;
ROM F/W version……………………. : 00900099;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAV58564109;
Model: WD10EVDS-63U8B0;
Date: 12 FEB 2010;
DCM: DANCNV2MBB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD2;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C43/3139;
1   : 1   : B48/2888;
2   : 2   : C46/3142;
3   : 3   : B85/2949;
ROM F/W version……………………. : 00900072;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV52277204;
Model: WD10EVDS-63U8B0;
Date: 25 SEP 2009;
DCM: DANCHV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD2;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B79/2937;
1   : 1   : B7D/2941;
2   : 2   : B2F/2863;
3   : 3   : B70/2928;
ROM F/W version……………………. : 0090002A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

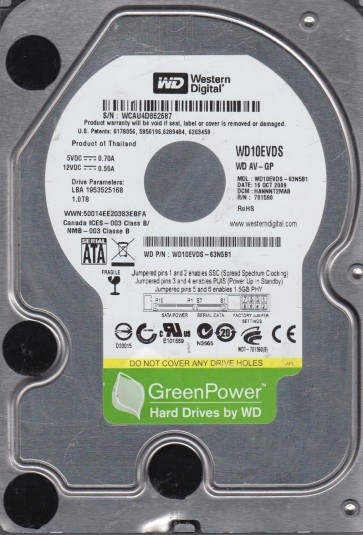

HDD with Serial Number: WCAU4D862687;
Model: WD10EVDS-63N5B1;
Date: 16 OCT 2009;
DCM: HANNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AE;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 9C1/2497;
1 : 3 : A4C/2636;
2 : 4 : 9A6/2470;
3 : 5 : A2B/2603;
4 : 6 : 9AE/2478;
5 : 7 : A4E/2638;
ROM F/W version……………………. : 000500DG;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

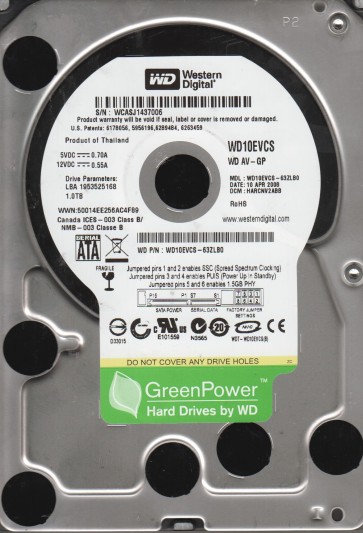

HDD #1 Specs:;
SN: WCASJ1437006;
Model: WD10EVCS-63ZLB0;
Date: 10 APR 2008;
DCM: HARCNV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-701474-600 01P;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9CE/2510;
1   : 1   : 9F2/2546;
2   : 2   : A00/2560;
3   : 3   : 9D2/2514;
4   : 4   : 9E4/2532;
5   : 5   : 9E2/2530;
6   : 6   : 9DA/2522;
7   : 7   : 9D4/2516;

;

ROM F/W version……………………. : 005C0036;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
SN: WCASJ1122995;
Model: WD10EVCS-63ZLB0;
Date: 27 JAN 2008;
DCM: HARCNV2AAB ;
Product of: Thailand;
PCB Sticker: 2061-701474-600 01P;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 950/2384;
1   : 1   : 9F8/2552;
2   : 2   : 960/2400;
3   : 3   : 9BA/2490;
4   : 4   : 98E/2446;
5   : 5   : 9BE/2494;
6   : 6   : 936/2358;
7   : 7   : A70/2672;
ROM F/W version……………………. : 005C0032;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WMC1U7737987;
Model: WD10EURX-73FH1Y0;
Date: 09 NOV 2012;
DCM: HHRNHV2CH;
Product of: Malaysia;
PCB Sticker: 771824-G05 AD;
PCB Revision: 2060-771824-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 128B/4747;
1   : 1   : 1301/4865;
ROM F/W version……………………. : 0030003C;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;
;
;
;

;

HDD with  Serial Number: WCC1U1512554;
Model: WD10EURX-73FH1Y0;
Date: 23 FEB 2013;
DCM: HHRNHT2MHB;
Product of: Thailand;
PCB Sticker: 771824-G05 AD;
PCB Revision: 2060-771824-005 REV A;

;

;
