WD10EURX-61C57Y0, DCM HANNNT2AGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC4JKSP4CHV;
Model: WD10EURX-61C57Y0;
Date: 08 JUL 2014;
DCM: HANNNT2AGB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0001004S;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

WD10EURX-61C57Y0, DCM HANNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC4J4DKE84C;
Model: WD10EURX-61C57Y0;
Date: 14 JAN 2015;
DCM: HANNHT2CHB;
Product of: Thailand;
PCB Sticker: 771945-001 AB;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0001004S;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

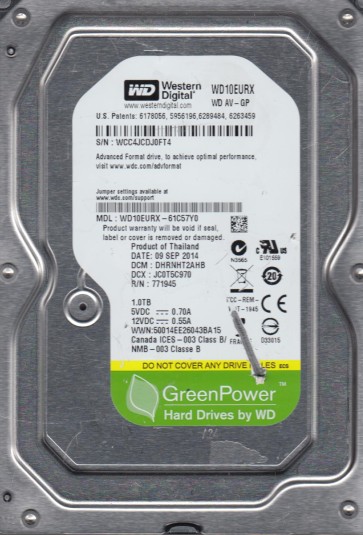

WD10EURX-61C57Y0, DCM DHRNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC4JCDJ0FT4;
Model: WD10EURX-61C57Y0;
Date: 09 SEP 2014;
DCM: DHRNHT2AHB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
ROM F/W version……………………. : 0001004S;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

WD10EURX-61C57Y0, DCM DBNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCC4J2KLRH8H;
Model: WD10EURX-61C57Y0;
Date: 29 JAN 2015;
DCM: DBNNHT2CHB;
Product of: Thailand;
PCB Sticker: 771945-601 AD;
PCB Revision: 2060-771945-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 00/0;
1 : 1 : 00/0;
ROM F/W version……………………. : 0001004S;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

WD10EURS-730AB1, DCM HARNHV2CAB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WMAV52463129;
Model: WD10EURS-730AB1;
Date: 21 DEC 2011;
DCM: HARNHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AE;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B5C/2908;
1   : 1   : B18/2840;
2   : 2   : BFB/3067;
3   : 3   : B66/2918;
ROM F/W version……………………. : 0015004A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

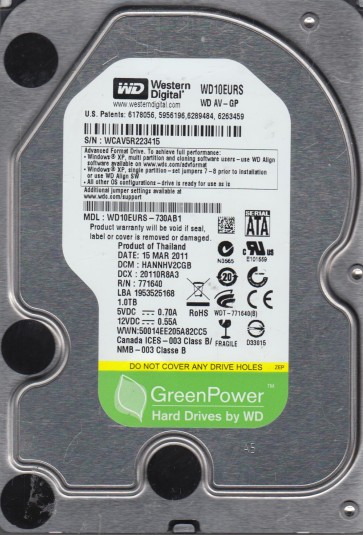

WD10EURS-730AB1, DCM HANNHV2CGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5R223415;
Model: WD10EURS-730AB1;
Date: 15 MAR 2011;
DCM: HANNHV2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ADB/2779;
1 : 1 : B68/2920;
2 : 2 : B5E/2910;
3 : 3 : B76/2934;
ROM F/W version……………………. : 0015003Q;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

WD10EURS-630AB1, DCM HHNNHV2CHB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WMAV52535238;
Model: WD10EURS-630AB1;
Date: 17 DEC 2011;
DCM: HHNNHV2CHB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AE;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BF6/3062;
1   : 1   : B5D/2909;
2   : 2   : BCF/3023;
3   : 3   : AF9/2809;
ROM F/W version……………………. : 0015004A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD10EURS-630AB1, DCM HARCHV2CGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5U693540;
Model: WD10EURS-630AB1;
Date: 20 JUN 2011;
DCM: HARCHV2CGB;
Product of: Thailand;
PCB Sticker: 771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B1A/2842;
1 : 1 : B65/2917;
2 : 2 : B47/2887;
3 : 3 : B17/2839;

;

ROM F/W version:0015003W;
Preamp vendor:0x0000;
Preamp revision:0x0002;

;

WD10EURS-630AB1, DCM HANNHV2CGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WMAV52534548;
Model: WD10EURS-630AB1;
Date: 17 DEC 2011;
DCM: HANNHV2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AE;
PCB Revision: 2060-771640-003 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B7C/2940;
1   : 1   : B51/2897;
2   : 2   : B63/2915;
3   : 3   : B66/2918;
ROM F/W version……………………. : 0015004A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;
