HDD with Serial Number: WCAV55578741;
Model: WD10EAVS-98M4B0;
Date: 11 DEC 2009;
DCM: DHNNNV2MHB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD3;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BF6/3062;
1 : 1 : A96/2710;
2 : 2 : C0B/3083;
3 : 3 : A9E/2718;
ROM F/W version……………………. : 0090005T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAV55720777;
Model: WD10EAVS-98M4B0;
Date: 11 DEC 2009;
DCM: DANNHV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-700 02PD3;
PCB Revision: 2060-701640-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B5B/2907;
1 : 1 : AE3/2787;
2 : 2 : AD7/2775;
3 : 3 : B1E/2846;
ROM F/W version……………………. : 0090005T;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU42263612;
Model: WD10EAVS-98D7B0;
Date: 31 AUG 2008;
DCM: HHRNHT2CBB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AC5/2757;
1 : 3 : 9CE/2510;
2 : 4 : A9C/2716;
3 : 5 : 9F5/2549;
4 : 6 : AAF/2735;
5 : 7 : A0A/2570;
ROM F/W version……………………. : 0005005P;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor…………………….. : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU42207414;
Model: WD10EAVS-98D7B0;
Date: 03 SEP 2008;
DCM: HARNHT2CBB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A95/2709;
1 : 3 : A82/2690;
2 : 4 : AA1/2721;
3 : 5 : A6F/2671;
4 : 6 : AAF/2735;
5 : 7 : A76/2678;
ROM F/W version……………………. : 0005005P;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU42207225;
Model: WD10EAVS-98D7B0;
Date: 03 SEP 2008;
DCM: HARNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A37/2615;
1 : 3 : A1F/2591;
2 : 4 : A3C/2620;
3 : 5 : A3D/2621;
4 : 6 : A62/2658;
5 : 7 : A31/2609;

;

ROM F/W version……………………. : 0005005P;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU47931518;
Model: WD10EAVS-98D7B0;
Date: 08 MAR 2009;
DCM: HANNHT2MFB;
Product of: Thailand;
PCB Sticker: 2061-701537-Q00 AF;
PCB Revision: 2060-701537-004 REV A;

;



;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A30/2608;
1 : 3 : A1B/2587;
2 : 4 : A32/2610;
3 : 5 : A2E/2606;
4 : 6 : AA2/2722;
5 : 7 : A2E/2606;

;



;

ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

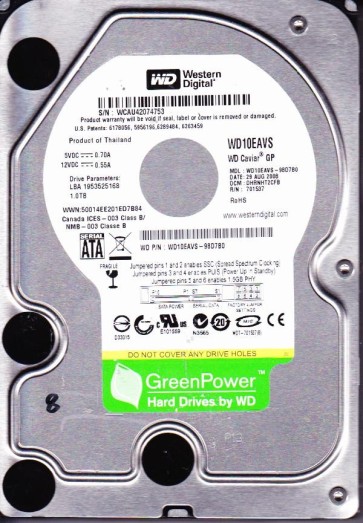

Specifications:;
SN WCAU42074753;
MDL WD10EAVS-98D7B0;
DATE 29 AUG 2008;
DCM DHRNHT2CFB;
Product of Thailand;
PCB Sticker: 2061-701537-Q00 AD;
PCB Revision: 2060-701537-004 REV A;

;

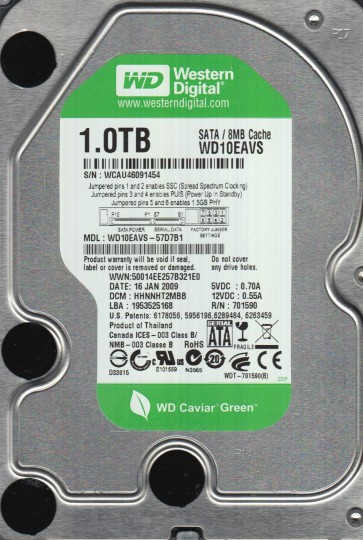

HDD #1 Specs:;
Serial Number: WCAU46091454;
Model: WD10EAVS-57D7B1;
Date: 16 JAN 2009;
DCM: HHNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 AC;
PCB Revision: 2060-701590-000 REV A;

Micro Jogs
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;

;

;

HDD with Serial Number: WCAU44451650;
Model: WD10EAVS-57D7B1;
Date: 07 NOV 2008;
DCM: DBNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 05P;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : ABD/2749;
1 : 3 : 9CE/2510;
2 : 4 : A82/2690;
3 : 5 : 9E8/2536;
4 : 6 : A96/2710;
5 : 7 : 9F2/2546;

;

ROM F/W version……………………. : 000500AP;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
SN: WCAU46751508;
Model: WD10EAVS-55D7B1;
Date: 03 FEB 2009;
DCM: HBRNNT2MFB ;
Product of: Thailand;
PCB Sticker: 2061-701590-A00 05P;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : AB4/2740;
1   : 3   : A9C/2716;
2   : 4   : AE1/2785;
3   : 5   : A85/2693;
4   : 6   : AFC/2812;
5   : 7   : A85/2693;
ROM F/W version……………………. : 000500BG;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;
