HDD with Serial Number: WMC0T1018364;
Model: WD10EARX-00N0YB0;
Date: 24 JUN 2012;
DCM: EANNHT2CHB;
Product of: Thailand;
PCB Sticker: 771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CBC/3260;
1 : 1 : D4D/3405;
2 : 2 : CD9/3289;
;
ROM F/W version: 00510053;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;
;
HDD with Serial Number: WCC0S0435614;
Model: WD10EARX-00N0YB0;
Date: 14 SEP 2011;
DCM: DHNNHT2CHB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AB;
PCB Revision: 2060-771698-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C93/3219;
1 : 1 : D3E/3390;
2 : 3 : D1E/3358;
ROM F/W version……………………. : 00510022;
Heads map…………………………. : 0,1,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0005;
;
HDD with Serial Number: WMC0T0288745;
Model: WD10EARX-00N0YB0;
Date: 06 FEB 2012;
DCM: DBNNHT2MBB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AE;
PCB Revision: 2060-771698-004 REV A;
;
;
HDD with Serial Number: WCC0T0904004;
Model: WD10EARX-00N0YB0;
Date: 30 AUG 2012;
DCM: DARNNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;
ROM F/W 00510053;
Heads map 0,1,2;
Preamp Vendor: x000;
Preamp revision: x005;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CE0/3296;
1 : 1 : C77/3191;
2 : 2 : C7A/3194
;
HDD with Serial Number: WMC0S0954400;
Model: WD10EARX-00N0YB0;
Date: 19 JUN 2012;
DCM: DARNHT2MHB;
Product of: Thailand;
PCB Sticker: 771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C9B/3227;
1 : 1 : CCA/3274;
2 : 3 : CBF/3263;
;
ROM F/W version: 00510053;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;
;
HDD with Serial Number: WCAV5W390320;
Model: WD10EARS-67Y5B1;
Date: 15 DEC 2011;
DCM: HHRCNV2CHB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AE;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B74/2932;
1 : 1 : B59/2905;
2 : 2 : B7D/2941;
3 : 3 : B0A/2826;
ROM F/W version……………………. : 0015004A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
HDD with Serial Number: WCAV5W315009;
Model: WD10EARS-67Y5B1;
Date: 13 DEC 2011;
DCM: HGRNHT2CGB;
Product of: Thailand;
PCB Sticker: 771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D28/3368;
1 : 1 : CA9/3241;
2 : 2 : D24/3364;
3 : 3 : C5D/3165;
ROM F/W version……………………. : 0015004A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
HDD with Serial Number: WCAV5W336115;
Model: WD10EARS-67Y5B1;
Date: 15 DEC 2011;
DCM: HGRCHV2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-B03 AE;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BB0/2992;
1 : 1 : B85/2949;
2 : 2 : BAF/2991;
3 : 3 : B73/2931;
;
ROM F/W Version: 0015004A;
Heads Map: 0,1,2,3;
Preamp Vendor:0x0000;
Preamp Revision:0x0002;
;

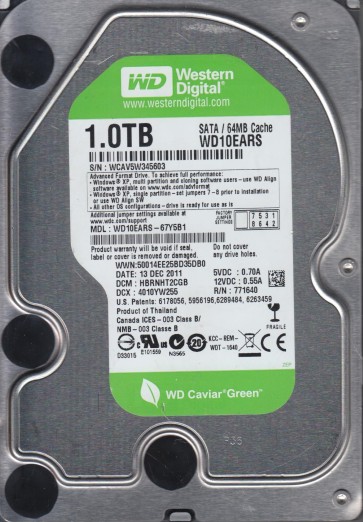

HDD with Serial Number: WCAV5W345603;
Model: WD10EARS-67Y5B1;
Date: 13 DEC 2011;
DCM: HBRNHT2CGB;
Product of: Thailand;
PCB Sticker: 771640-B03 AD;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D00/3328;
1 : 1 : C92/3218;
2 : 2 : CC9/3273;
3 : 3 : D0D/3341;
ROM F/W version……………………. : 0015004A;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;
;
Specifications;

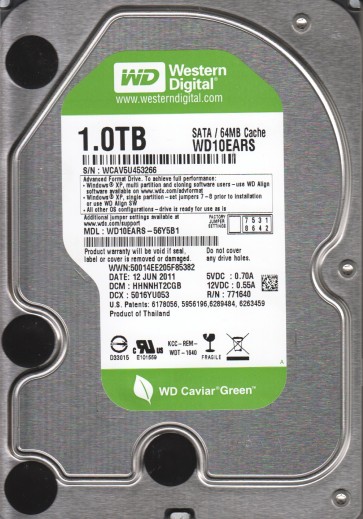

SN: WCAV5U453266;
Model: WD10EARS-56Y5B1;
Date: 12 JUN 2011;
DCM: HHNNHT2CGB ;
Product of: Thailand;
PCB Sticker: 771640-B03 AA;
PCB Revision: 2060-771640-003 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C90/3216;
1 : 1 : CF7/3319;
2 : 2 : C84/3204;
3 : 3 : D38/3384;
ROM F/W version……………………. : 0015003W;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;
