HDD with Serial Number: WMAV51489089;
Model: WD10EADS-65M2B0;
Date: 10 JAN 2010;
DCM: HARNHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-701640-202 04PD5;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CAC/3244;
1 : 1 : C5F/3167;
2 : 2 : C8B/3211;
3 : 3 : C41/3137;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAV58054971;
Model: WD10EADS-65M2B0;
Date: 31 JAN 2010;
DCM: HARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-202 04PD4;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BC2/3010;
1 : 1 : C9E/3230;
2 : 2 : BE5/3045;
3 : 3 : C7B/3195;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV55292824;
Model: WD10EADS-65M2B0;
Date: 09 DEC 2009;
DCM: HANNHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B9A/2970;
1 : 1 : B57/2903;
2 : 2 : B8B/2955;
3 : 3 : B0B/2827;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV57972903;
Model: WD10EADS-65M2B0;
Date: 31 JAN 2010;
DCM: HANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-202 04PD4;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C1F/3103;
1   : 1   : C7C/3196;
2   : 2   : C53/3155;
3   : 3   : C64/3172;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAV51216944;
Model: WD10EADS-65M2B0;
Date: 02 JAN 2010;
DCM: HANNHT2MA;
Product of: Malaysia;
PCB Sticker: 2061-701640-202 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C70/3184;
1 : 1 : CDF/3295;
2 : 2 : C7A/3194;
3 : 3 : CDC/3292;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAV56291316;
Model: WD10EADS-65M2B0;
Date: 26 DEC 2009;
DCM: HANCNT2MGB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C57/3159;
1 : 1 : D0F/3343;
2 : 2 : C48/3144;
3 : 3 : CF2/3314;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAV54569130;
Model: WD10EADS-65M2B0;
Date: 20 NOV 2009;
DCM: HANCNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C5D/3165;
1 : 1 : CDC/3292;
2 : 2 : CB6/3254;
3 : 3 : CA5/3237;
ROM F/W version……………………. : 00700038;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WCAV55074154;
Model: WD10EADS-65M2B0;
Date: 04 DEC 2009;
DCM: DHRCHV2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B55/2901;
1   : 1   : AC7/2759;
2   : 2   : B66/2918;
3   : 3   : AFA/2810;
ROM F/W version……………………. : 0070003G;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

HDD with Serial Number: WCAV54982019;
Model: WD10EADS-65M2B0;
Date: 30 NOV 2009;
DCM: DGRNHT2MHB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C3C/3132;
1 : 1 : C7E/3198;
2 : 2 : CF7/3319;
3 : 3 : C0A/3082;
ROM F/W version……………………. : 0010002J;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………… : 0x0000;
Preamp revision…………………. : 0x0002;

;

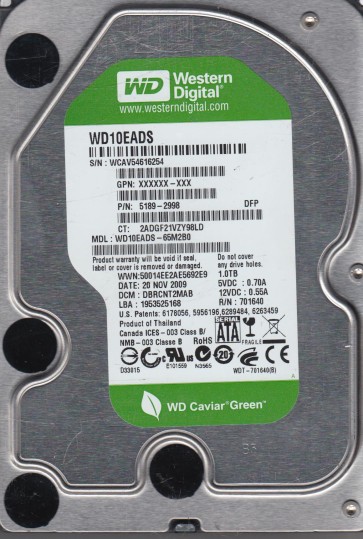

HDD with Serial Number: WCAV54616254;
Model: WD10EADS-65M2B0;
Date: 20 NOV 2009;
DCM: DBRCNT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-502 02PD3;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B90/2960;
1 : 1 : C0E/3086;
2 : 2 : C92/3218;
3 : 3 : C08/3080;
ROM F/W version……………………. : 00700038;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
