HDD with Serial Number: WCAU4C840974;
Model: WD10EADS-65L5B1;
Date: 10 AUG 2009;
DCM: DHNNNT2MFN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A21/2593;
1 : 3 : A97/2711;
2 : 4 : A19/2585;
3 : 5 : A99/2713;
4 : 6 : A19/2585;
5 : 7 : AAE/2734;
ROM F/W version……………………. : 000500CE;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

Specifications;

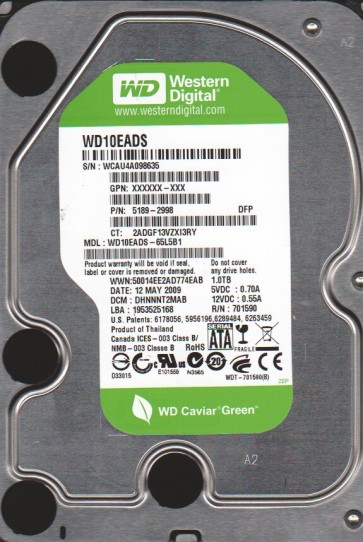

SN: WCAU4A098635;
Model: WD10EADS-65L5B1;
Date: 12 MAY 2009;
DCM: DHNNNT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 Ad;
PCB Revision: 2060-701590-000 REV A;

;

;

HDD with Serial Number: WCAU4C843886;
Model: WD10EADS-65L5B1;
Date: 11 AUG 2009;
DCM: DHNNHT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : AB3/2739;
1 : 3 : A36/2614;
2 : 4 : AC6/2758;
3 : 5 : A29/2601;
4 : 6 : A9F/2719;
5 : 7 : A38/2616;
ROM F/W version……………………. : 000500CE;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU4C129661;
Model: WD10EADS-65L5B1;
Date: 23 JUN 2009;
DCM: DBNNNT2MBN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A36/2614;
1   : 3   : A2E/2606;
2   : 4   : A4D/2637;
3   : 5   : A34/2612;
4   : 6   : A43/2627;
5   : 7   : A17/2583;
ROM F/W version……………………. : 000500CE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAU4C119721;
Model: WD10EADS-65L5B1;
Date: 21 JUN 2009;
DCM: DANNNT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A05/2565;
1   : 3   : A18/2584;
2   : 4   : A16/2582;
3   : 5   : A2F/2607;
4   : 6   : 9EC/2540;
5   : 7   : A3A/2618;
ROM F/W version……………………. : 000500CE;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;
;
;

;

HDD with Serial Number: WCAU4C851696;
Model: WD10EADS-65L5B1;
Date: 11 AUG 2009;
DCM: DANNHT2MAN;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A8A/2698;
1 : 3 : A1F/2591;
2 : 4 : A89/2697;
3 : 5 : 9BF/2495;
4 : 6 : A6A/2666;
5 : 7 : A46/2630;
ROM F/W version……………………. : 000500CE;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD #1 Specs:;
SN: WCAV52788173;
Model: WD10EADS-42P6B0;
Date: 04 OCT 2009;
DCM: HHRCNV2MAB ;
Product of: Thailand;
PCB Sticker: 2061-771640-A00 05PD2;
PCB Revision: 2060-771640-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B41/2881;
1   : 1   : AE0/2784;
2   : 2   : B6C/2924;
3   : 3   : A81/2689;
ROM F/W version……………………. : 0090002A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WCAV52822544;
Model: WD10EADS-42P6B0;
Date: 05 OCT 2009;
DCM: HHNCHV2MHB;
Product of: Thailand;
PCB Sticker: 2061-771640-A00 05PD2;
PCB Revision: 2060-771640-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : AFE/2814;
1   : 1   : BBF/3007;
2   : 2   : B25/2853;
3   : 3   : BAA/2986;
ROM F/W version……………………. : 0090002A;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAV52669730;
Model: WD10EADS-42P6B0;
Date: 03 OCT 2009;
DCM: HGNCNV2MAB;
Product of: Thailand;
PCB Sticker: 2061-771640-A00 05PD2;
PCB Revision: 2060-771640-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ADF/2783;
1 : 1 : AED/2797;
2 : 2 : B00/2816;
3 : 3 : B8E/2958;

;

ROM F/W Version: 0090002A;
Heads Map: 0,1,2,3;
Preamp Vendor: 0x0000;
Preamp Revision: 0x0002;

;

HDD with Serial Number: WCAV5A959030;
Model: WD10EADS-42P6B0;
Date: 04 APR 2010;
DCM: HGNCNV2CGB;
Product of: Thailand;
PCB Sticker: 2061-771640-A00 05PD2;
PCB Revision: 2060-771640-000 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B50/2896;
1   : 1   : AE3/2787;
2   : 2   : B5C/2908;
3   : 3   : B55/2901;
ROM F/W version……………………. : 0090006C;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
