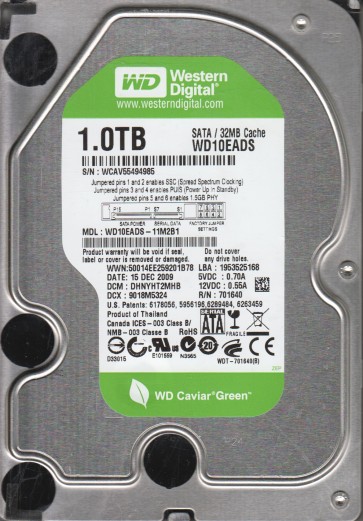

WD10EADS-11M2B1, DCM DGRNHT2MAB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV54021738;
Model: WD10EADS-11M2B1;
Date: 06 NOV 2009;
DCM: DGRNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-402 01PD6;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D08/3336;
1 : 1 : C65/3173;
2 : 2 : CF4/3316;
3 : 3 : C3B/3131;

;

ROM F/W version: 0080007P;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

WD10EADS-11M2B1, DCM DARYHT2MAB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV54823739;
Model: WD10EADS-11M2B1;
Date: 25 NOV 2009;
DCM: DARYHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D0B/3339;
1 : 1 : C63/3171;
2 : 2 : CA4/3236;
3 : 3 : C49/3145;
ROM F/W version……………………. : 008000BE;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD10EADS-114BB1, DCM HHRNNT2MA, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5L510893;
Model: WD10EADS-114BB1;
Date: 03 NOV 2011;
DCM: HHRNNT2MA;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C23/3107;
1 : 1 : CD5/3285;
2 : 2 : C03/3075;
3 : 3 : C5B/3163;

;

;
ROM F/W version: 00000036;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

WD10EADS-114BB1, DCM HHNNHT2CGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5K961580;
Model: WD10EADS-114BB1;
Date: 23 NOV 2010;
DCM: HHNNHT2CGB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CEA/3306;
1 : 1 : C6A/3178;
2 : 2 : D1D/3357;
3 : 3 : C8E/3214;
ROM F/W version……………………. : 00000036;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

WD10EADS-114BB1, DCM HGRNHT2MGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5L737873;
Model: WD10EADS-114BB1;
Date: 09 DEC 2010;
DCM: HGRNHT2MGB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C6C/3180;
1 : 1 : C36/3126;
2 : 2 : CD3/3283;
3 : 3 : CFF/3327;
ROM F/W version……………………. : 00000036;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

WD10EADS-114BB1, DCM HBRNNT2MGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5L926982;
Model: WD10EADS-114BB1;
Date: 10 DEC 2010;
DCM: HBRNNT2MGB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P2;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE1/3041;
1   : 1   : DB2/3506;
2   : 2   : BE5/3045;
3   : 3   : D6D/3437

;

WD10EADS-114BB1, DCM HBNNNT2CHB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5K611822;
Model: WD10EADS-114BB1;
Date: 16 NOV 2010;
DCM: HBNNNT2CHB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 05PD1;
PCB Revision: 2060-771698-002 REV P2;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C73/3187;
1 : 1 : D27/3367;
2 : 2 : C70/3184;
3 : 3 : D57/3415;

;

ROM F/W version: 0000002C;
Heads map: 0,1,2,3;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

WD10EADS-114BB1, DCM HARNHV2CGB, Western Digital 1TB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAV5K885763;
Model: WD10EADS-114BB1;
Date: 20 NOV 2010;
DCM: HARNHV2CGB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BE1/3041;
1   : 1   : BA1/2977;
2   : 2   : BF4/3060;
3   : 3   : B99/2969;

;

Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;

;

WD10EADS-114BB1, DCM HANNHT2CAB, Western Digital 1TB SATA 3.5 Hard Drive

HDD with Serial Number: WCAV5K775113;
Model: WD10EADS-114BB1;
Date: 19 NOV 2010;
DCM: HANNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-771698-702 AD;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C91/3217;
1 : 1 : CEB/3307;
2 : 2 : CAB/3243;
3 : 3 : CB8/3256;
ROM F/W version……………………. : 0000002C;
Heads map…………………………. : 0,1,2,3;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0002;

;
