HDD with Serial Number: WCASJ2275594;
Model: WD10EACS-14ZJB0;
Date: 30 JAN 2009;
DCM: HBRCNV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-600 AD;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A36/2614;
1   : 1   : 9F2/2546;
2   : 2   : 9EE/2542;
3   : 3   : A08/2568;
4   : 4   : 9FC/2556;
5   : 5   : 9FC/2556;
6   : 6   : 980/2432;
7   : 7   : 9EA/2538;
ROM F/W version……………………. : 005C003M;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCASJ2278836;
Model: WD10EACS-14ZJB0;
Date: 15 JAN 2009;
DCM: HARCNV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-600 AE;
PCB Revision: 2060-701474-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 964/2404;
1   : 1   : 9EC/2540;
2   : 2   : 9E0/2528;
3   : 3   : 9F2/2546;
4   : 4   : 9C2/2498;
5   : 5   : 9EC/2540;
6   : 6   : 99A/2458;
7   : 7   : A02/2562;
ROM F/W version……………………. : 005C003M;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

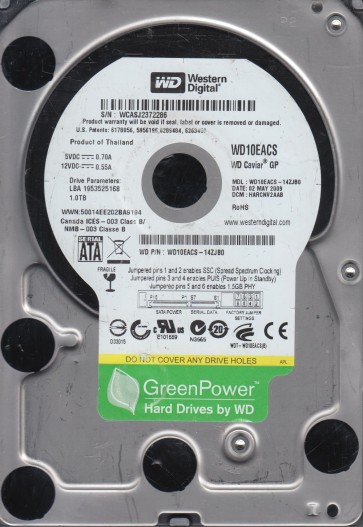

HDD with Serial Number: WCASJ2372286;
Model: WD10EACS-14ZJB0;
Date: 02 MAY 2009;
DCM: HARCNV2AAB;
Product of: Thailand;
PCB Sticker: 2061-701474-600 AG;
PCB Revision: 2060-701474-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 9E6/2534;
1   : 1   : 98A/2442;
2   : 2   : 9EE/2542;
3   : 3   : 96E/2414;
4   : 4   : 9B0/2480;
5   : 5   : 9A6/2470;
6   : 6   : A22/2594;
7   : 7   : 976/2422;
ROM F/W version……………………. : 005C003M;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

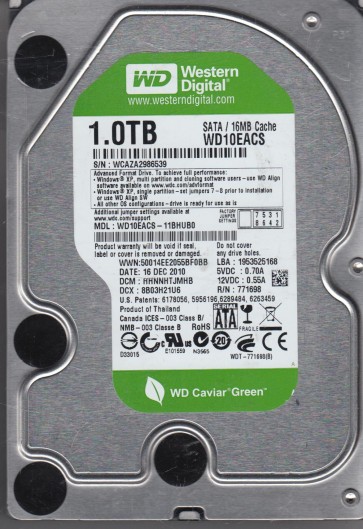

HDD with Serial Number: WCAZA2986539;
Model: WD10EACS-11BHUB0;
Date: 16 DEC 2010;
DCM: HHNNHTJMHB;
Product of: Thailand;
PCB Sticker: 771698-R02 AA;
PCB Revision: 2060-771698-002 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C44/3140;
1 : 1 : C3B/3131;
2 : 2 : C6E/3182;
3 : 5 : C99/3225;
4 : 7 : C0A/3082;
ROM F/W version……………………. : 0020000P;
Heads map…………………………. : 0,1,2,5,7;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0001;

;

HDD with Serial Number: WCAU45994676;
Model: WD10EACS-07D6B0;
Date: 07 JAN 2009;
DCM: HHNNNT2CFB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : ACD/2765;
1 : 3 : A39/2617;
2 : 4 : AE6/2790;
3 : 5 : A2B/2603;
4 : 6 : ADA/2778;
5 : 7 : A22/2594;
ROM F/W version……………………. : 000500BG;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

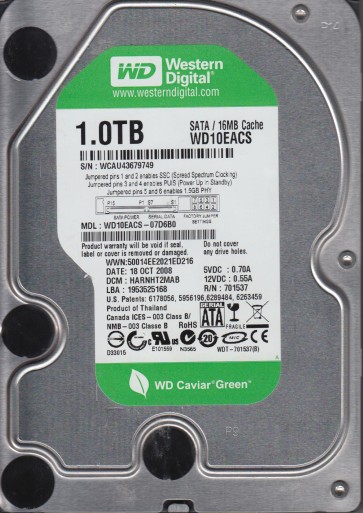

HDD #1 Specs:;
SN: WCAU43679749;
Model: WD10EACS-07D6B0;
Date: 18 OCT 2008;
DCM: HARNHT2MAB ;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A89/2697;
1 : 3 : A96/2710;
2 : 4 : A8E/2702;
3 : 5 : A74/2676;
4 : 6 : A8E/2702;
5 : 7 : A5C/2652;

;

ROM F/W version……………………. : 000500AP;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WCAU45994928;
Model: WD10EACS-07D6B0;
Date: 07 JAN 2009;
DCM: DHNNNT2MFB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 9F6/2550;
1 : 3 : 973/2419;
2 : 4 : 9DB/2523;
3 : 5 : 969/2409;
4 : 6 : 9F2/2546;
5 : 7 : 95A/2394;

;

;
ROM F/W version: 000500BG;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
SN: WCASJ1370716;
Model: WD10EACS-00ZJB0;
Date: 14 MAR 2008;
DCM: HBRCNV2ABB ;
Product of: Thailand;
PCB Sticker: 2061-701474-600 01P;
PCB Revision: 2060-701474-004 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A1E/2590;
1   : 1   : A20/2592;
2   : 2   : A4C/2636;
3   : 3   : A26/2598;
4   : 4   : A20/2592;
5   : 5   : 9EC/2540;
6   : 6   : A44/2628;
7   : 7   : 9CE/2510;
;
;

;

HDD with Serial Number: WCASJ0421660;
Model: WD10EACS-00ZJB0;
Date: 02 OCT 2007;
DCM: HBRCNT2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-300 AA;
PCB Revision: 2060-701474-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C08/3080;
1 : 1 : C88/3208;
2 : 2 : BE6/3046;
3 : 3 : C82/3202;
4 : 4 : BB0/2992;
5 : 5 : C64/3172;
6 : 6 : BB2/2994;
7 : 7 : C7E/3198;
ROM F/W version……………………. : 005B000E;
Heads map…………………………. : 0,1,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMASJ0017767;
Model: WD10EACS-00ZJB0;
Date: 22 AUG 2007;
DCM: HBRCNT2AB;
Product of: Malaysia;
PCB Sticker: 2061-701474-300 04P;
PCB Revision: 2060-701474-002 REV A;
ROM F/W: 0000002A;
Heads map: 0,1,2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BCC/3020;
1   : 1   : C58/3160;
2   : 2   : BA6/2982;
3   : 3   : C7A/3194;
4   : 4   : B38/2872;
5   : 5   : C32/3122;
6   : 6   : BB0/2992;
7   : 7   : C58/3160;
;
;
;

;

HDD with Serial Number: WCASJ1860485;
Model: WD10EACS-00ZJB0;
Date: 01 APR 2008;
DCM: HBRCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-701474-600 AB;
PCB Revision: 2060-701474-004 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 95C/2396;
1 : 1 : 9FA/2554;
2 : 2 : 968/2408;
3 : 3 : 9FC/2556;
4 : 4 : 99C/2460;
5 : 5 : 9D0/2512;
6 : 6 : 986/2438;
7 : 7 : 9F0/2544;

;

ROM F/W version: 5C.3HG;
Heads map: 0,1,2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;
