HDD #1 Specs:;
SN: WCAU44788408;
Model: WD10EACS-00D6B1;
Date: 20 NOV 2008;
DCM: HANNHT2CBB ;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A80/2688;
1   : 3   : A32/2610;
2   : 4   : A5A/2650;
3   : 5   : A12/2578;
4   : 6   : 9DC/2524;
5   : 7   : A06/2566;
ROM F/W version……………………. : 000500AS;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

Specifications;
SN: WCAU45968076;
Model: WD10EACS-00D6B1;
Date: 07 JAN 2009;
DCM: DHRNNT2MFB
R/N 701590;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;

;

;

HDD #1 Specs:;
Serial Number: WCAU44688667;
Model: WD10EACS-00D6B1;
Date: 15 NOV 2008;
DCM: DHNNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A56/2646;
1   : 3   : 9D1/2513;
2   : 4   : A41/2625;
3   : 5   : 9C9/2505;
4   : 6   : A43/2627;
5   : 7   : 9A7/2471;
ROM F/W version……………………. : 000500AS;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAU49461923;
Model: WD10EACS-00D6B1;
Date: 19 APR 2009;
DCM: DHNNHT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701590-J00 AD;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A5E/2654;
1   : 3   : A55/2645;
2   : 4   : 9FD/2557;
3   : 5   : A44/2628;
4   : 6   : A18/2584;
5   : 7   : A4E/2638;
ROM F/W version……………………. : 000500C2;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A5E/2654;
1   : 3   : A55/2645;
2   : 4   : 9FD/2557;
3   : 5   : A44/2628;
4   : 6   : A18/2584;
5   : 7   : A4E/2638;
;
;

;

HDD with Serial Number: WCAU43076382;
Model: WD10EACS-00D6B1;
Date: 07 DEC 2008;
DCM: DARNHT2CFB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A2B/2603;
1 : 3 : A7B/2683;
2 : 4 : A3F/2623;
3 : 5 : A64/2660;
4 : 6 : 9F8/2552;
5 : 7 : A76/2678;
ROM F/W version……………………. : 000500AP;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

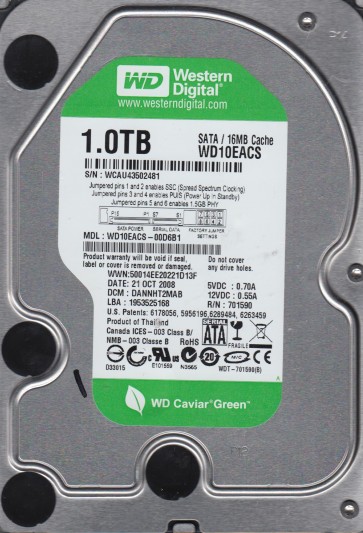

HDD with Serial Number: WCAU43502481;
Model: WD10EACS-00D6B1;
Date: 21 OCT 2008;
DCM: DANNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-701590-B00 02P;
PCB Revision: 2060-701590-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 9EE/2542;
1   : 3   : 9D3/2515;
2   : 4   : 9E2/2530;
3   : 5   : 9EB/2539;
4   : 6   : A52/2642;
5   : 7   : 9D7/2519;
ROM F/W version……………………. : 000500AP;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 9EE/2542;
1   : 3   : 9D3/2515;
2   : 4   : 9E2/2530;
3   : 5   : 9EB/2539;
4   : 6   : A52/2642;
5   : 7   : 9D7/2519;
;
;

;

HDD with Serial Number: WCAU41069408;
Model: WD10EACS-00D6B0;
Date: 16 JUL 2008;
DCM: HHRNNT2CFB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A8F/2703;
1   : 3   : AA0/2720;
2   : 4   : AA9/2729;
3   : 5   : A30/2608;
4   : 6   : AA0/2720;
5   : 7   : A2F/2607;
ROM F/W version……………………. : 00050053;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCAU40493307;
Model: WD10EACS-00D6B0;
Date: 02 JUN 2008;
DCM: HHRNNT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AC;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A8C/2700;
1   : 3   : ABD/2749;
2   : 4   : A89/2697;
3   : 5   : AAA/2730;
4   : 6   : A65/2661;
5   : 7   : AD1/2769;
ROM F/W version……………………. : 00050053;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;
;

;

HDD with Serial Number: WCAU41048914;
Model: WD10EACS-00D6B0;
Date: 13 JUL 2008;
DCM: HHRNHV2CAB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 AD;
PCB Revision: 2060-701537-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 94C/2380;
1   : 3   : 98D/2445;
2   : 4   : 8EB/2283;
3   : 5   : 9A0/2464;
4   : 6   : 933/2355;
5   : 7   : 97F/2431;
ROM F/W version……………………. : 00050053;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD with Serial Number: WCAU40839889;
Model: WD10EACS-00D6B0;
Date: 29 JUN 2008;
DCM: HHRNHT2MFB;
Product of: Thailand;
PCB Sticker: 2061-701537-R00 ADD3;
PCB Revision: 2060-701537-004 REV A;

;



;

ROM F/W version……………………. : 00050053;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
Heads map…………………………. : 2,3,4,5,6,7;

;



;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A2C/2604;
1 : 3 : A98/2712;
2 : 4 : A25/2597;
3 : 5 : AC1/2753;
4 : 6 : A3F/2623;
5 : 7 : AB0/2736;

;



;
