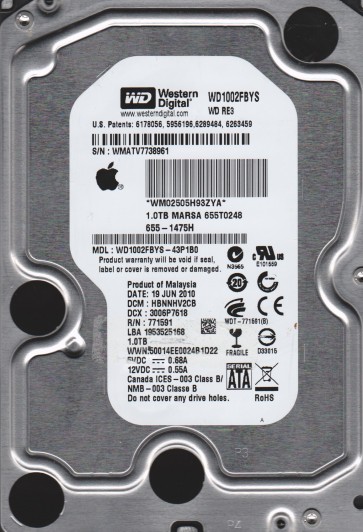

HDD #1 Specs:;
SN: WMATV7738187;
Model: WD1002FBYS-43P1B0;
Date: 19 JUN 2010;
DCM: HANNHV2CB;
R/N 771591;
Product of: Malaysia;
PCB Sticker: 2061-771591-200 13P;
PCB Revision: 2060-771591-000 REV P1;

;

ROM F/W version……………………. : 0005009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 2,3,4,5,6,7;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 924/2340;
1   : 3   : 89E/2206;
2   : 4   : 8E8/2280;
3   : 5   : 92A/2346;
4   : 6   : 909/2313;
5   : 7   : 90D/2317;
;
;

;

HDD #2 Specs:;
SN: WMATV7737753;
Model: WD1002FBYS-43P1B0;
Date: 19 JUN 2010;
DCM: HANNHV2CB;
R/N 771591;
Product of: Malaysia;
PCB Sticker: 2061-771591-200 13P;
PCB Revision: 2060-771591-000 REV P1;

;

ROM F/W version……………………. : 0005009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
Heads map…………………………. : 2,3,4,5,6,7;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 995/2453;
1   : 3   : 901/2305;
2   : 4   : 95D/2397;
3   : 5   : 92F/2351;
4   : 6   : 94B/2379;
5   : 7   : 8CA/2250;
;
;

;

HDD with Serial Number: WMATV1811399;
Model: WD1002FBYS-43P1B0;
Date: 23 MAY 2009;
DCM: HANNHV2AB;
Product of: Malaysia;
PCB Sticker: 2061-771591-200 09P;
PCB Revision: 2060-771591-000 REV P1;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 919/2329;
1 : 3 : 8CD/2253;
2 : 4 : 955/2389;
3 : 5 : 8E1/2273;
4 : 6 : 937/2359;
5 : 7 : 879/2169;
ROM F/W version……………………. : 0005008V;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0003;

;

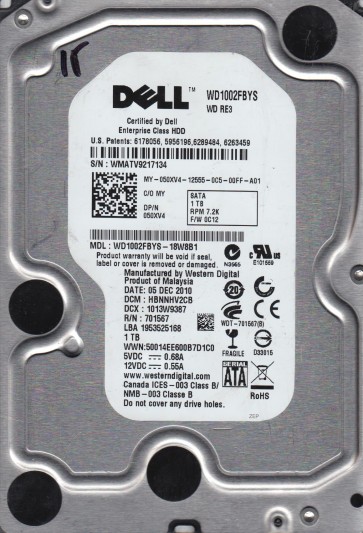

HDD with Serial Number: WMATV9217134;
Model: WD1002FBYS-18W8B1;
Date: 05 DEC 2010;
DCM: HBNNHV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 902/2306;
1   : 3   : 8B7/2231;
2   : 4   : 907/2311;
3   : 5   : 8B8/2232;
4   : 6   : 8F0/2288;
5   : 7   : 8A4/2212;
ROM F/W version……………………. : 00070055;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMATV6770031;
Model: WD1002FBYS-18W8B1;
Date: 25 APR 2010;
DCM: HARNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AF;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A22/2594;
1   : 3   : 9F5/2549;
2   : 4   : A20/2592;
3   : 5   : A13/2579;
4   : 6   : 9EB/2539;
5   : 7   : A03/2563;
ROM F/W version……………………. : 0005009U;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMATV5086267;
Model: WD1002FBYS-18W8B0;
Date: 28 DEC 2009;
DCM: HANNHT2CB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AD;
PCB Revision: 2060-701567-000 REV A;
;

;

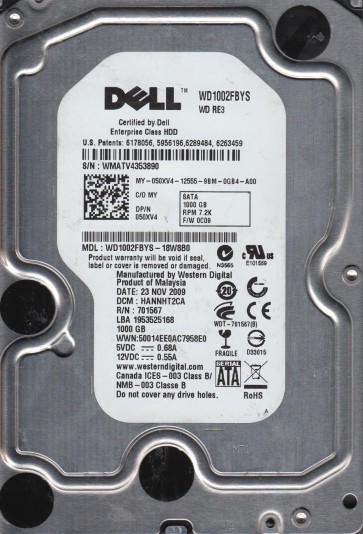

HDD #1 Specs:;
SN: WMATV4353890;
Model: WD1002FBYS-18W8B0;
Date: 23 NOV 2009;
DCM: HANNHT2CA ;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AE;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : A2C/2604;
1   : 3   : A84/2692;
2   : 4   : A0C/2572;
3   : 5   : A8C/2700;
4   : 6   : A0F/2575;
5   : 7   : A7C/2684;
ROM F/W version……………………. : 00070045;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

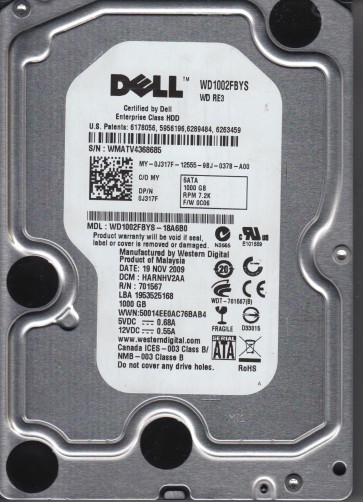

HDD #1 Specs:;
SN: WMATV4368685;
Model: WD1002FBYS-18A6B0;
Date: 19 NOV 2009;
DCM: HARNHV2AA ;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AE;
PCB Revision: 2060-701567-000 REV A;

;
;

;

HDD with Serial Number: WMATV2796654;
Model: WD1002FBYS-18A6B0;
Date: 15 AUG 2009;
DCM: HANNNV2CB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AD;
PCB Revision: 2060-701567-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : 944/2372;
1   : 3   : 90D/2317;
2   : 4   : 931/2353;
3   : 5   : 935/2357;
4   : 6   : 931/2353;
5   : 7   : 901/2305;
ROM F/W version……………………. : 0005009H;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMATV9302033;
Model: WD1002FBYS-12A6B0;
Date: 10 JAN 2011;
DCM: HBRNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : A12/2578;
1 : 3 : 9C9/2505;
2 : 4 : A29/2601;
3 : 5 : 9C5/2501;
4 : 6 : A07/2567;
5 : 7 : 9E2/2530;
ROM F/W version……………………. : 00070055;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMATV8181842;
Model: WD1002FBYS-12A6B0;
Date: 21 JUL 2010;
DCM: HBNNHT2AB;
Product of: Malaysia;
PCB Sticker: 2061-701567-400 AG;
PCB Revision: 2060-701567-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : 9A6/2470;
1 : 3 : 9F0/2544;
2 : 4 : 9BA/2490;
3 : 5 : 9E0/2528;
4 : 6 : 99C/2460;
5 : 7 : 9C3/2499;
ROM F/W version……………………. : 00070055;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0003;

;
