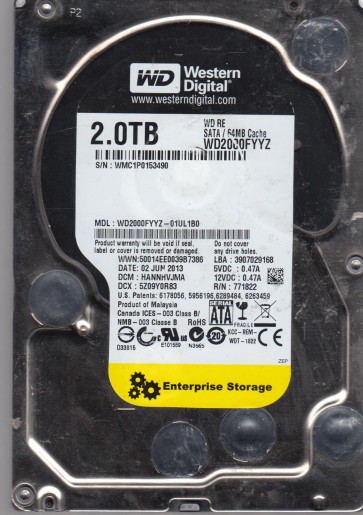

HDD with Serial Number: WMC1P0153490;
Model: WD2000FYYZ-01UL1B0;
Date: 02 JUN 2013;
DCM: HANNHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AA;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 106A/4202;
1 : 1 : 1054/4180;
2 : 2 : 1090/4240;
3 : 3 : 1174/4468;
4 : 4 : 10B7/4279;
5 : 5 : 11F4/4596;

;

ROM F/W: 000700FC;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

HDD with Serial Number: WCC1P0197612;
Model: WD2000FYYZ-01UL1B0;
Date: 14 MAY 2013;
DCM: EANCHVJAA;
Product of: Malaysia;
PCB Sticker: 771822-D02 04P;
PCB Revision: 2060-771822-002 REV P1;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 114B/4427;
1 : 1 : 1098/4248;
2 : 2 : 10A6/4262;
3 : 3 : 10A7/4263;
4 : 4 : 10C7/4295;
5 : 5 : 114C/4428;

;

ROM F/W version: 000700F3;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;

;

;

;

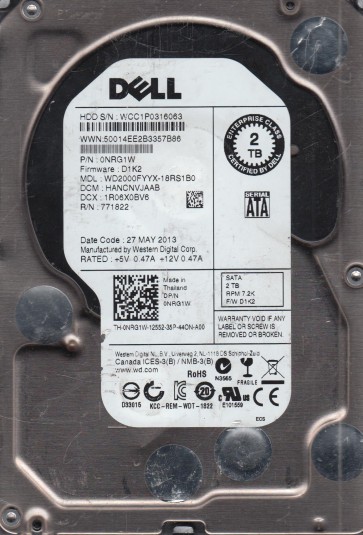

HDD with Serial Number: WCC1P0316063;
Model: WD2000FYYX-18RS1B0;
Date: 27 MAY 2013;
DCM: HANCNVJAAB;
Product of: Thailand;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1090/4240;
1 : 1 : 10D0/4304;
2 : 2 : 1083/4227;
3 : 3 : 108F/4239;
4 : 4 : 106E/4206;
5 : 5 : 10BF/4287;
ROM F/W version……………………. : 000700FC;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMC5C0D5F0CR;
Model: WD2000F9YZ-09N20L1;
Date: 18 JAN 2015;
DCM: HBNNNTJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 1145/4421;
1   : 1   : 115C/4444;
2   : 2   : 1160/4448;
3   : 3   : 1180/4480;
4   : 4   : 1130/4400;
5   : 5   : 117E/4478;
ROM F/W version……………………. : 00O1009E;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WMC5C0D6RDE3;
Model: WD2000F9YZ-09N20L1;
Date: 30 APR 2015;
DCM: HARNNTJMA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 106E/4206;
1 : 1 : 1180/4480;
2 : 2 : 10AC/4268;
3 : 3 : 1116/4374;
4 : 4 : 1079/4217;
5 : 5 : 111D/4381;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WMC5C0D6E1T0;
Model: WD2000F9YZ-09N20L1;
Date: 22 JUN 2015;
DCM: HARNNTJAA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 120C/4620;
1 : 1 : 111D/4381;
2 : 2 : 123C/4668;
3 : 3 : 1117/4375;
4 : 4 : 11B6/4534;
5 : 5 : 1186/4486;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

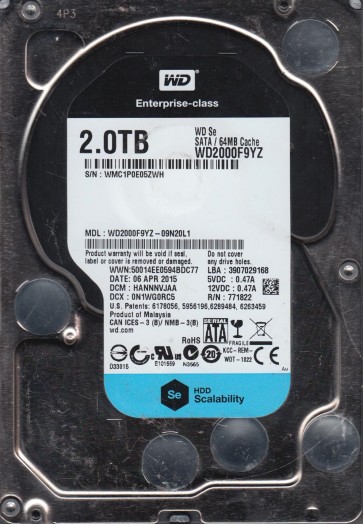

HDD with Serial Number: WMC1P0E05ZWH;
Model: WD2000F9YZ-09N20L1;
Date: 06 APR 2015;
DCM: HANNNVJAA;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 10C6/4294;
1   : 1   : 10B6/4278;
2   : 2   : 1020/4128;
3   : 3   : 1096/4246;
4   : 4   : 10B4/4276;
5   : 5   : 106E/4206;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;
;
;
;

;

HDD with Serial Number: WMC5C0D7MP7C;
Model: WD2000F9YZ-09N20L1;
Date: 23 MAY 2015;
DCM: HANNNTJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 112C/4396;
1   : 1   : 10FA/4346;
2   : 2   : 1102/4354;
3   : 3   : 10E0/4320;
4   : 4   : 1114/4372;
5   : 5   : 1064/4196;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

HDD with Serial Number: WCC1P1252078;
Model: WD2000F9YZ-09N20L0;
Date: 29 MAR 2014;
DCM: HBRNNVJAAB;
Product of: Thailand;
PCB Sticker: 771822-D02 AH;
PCB Revision: 2060-771822-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1184/4484;
1 : 1 : 1145/4421;
2 : 2 : 1114/4372;
3 : 3 : 112C/4396;
4 : 4 : 1122/4386;
5 : 5 : 1162/4450;
ROM F/W version……………………. : 00010088;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

HDD with Serial Number: WMC1P0192444;
Model: WD2000F9YZ-09N20L0;
Date: 20 AUG 2013;
DCM: HANNHVJMA;
Product of: Malaysia;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;

;
