HDD with Serial Number: WCC5C0017432;
Model: WD2000F9YZ-09N20L0;
Date: 19 SEP 2013;
DCM: HANNHTJAAB;
Product of: Thailand;
PCB Sticker: 771822-D02 AF;
PCB Revision: 2060-771822-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10AC/4268;
1 : 1 : 1027/4135;
2 : 2 : 1072/4210;
3 : 3 : 1007/4103;
4 : 4 : 100E/4110;
5 : 5 : 1030/4144;
;
ROM F/W Version: 00010028;
Heads Map: 0,1,2,3,4,5;
Preamp Vendor: 0x0001;
Preamp Revision: 0x0003;
;
HDD with Serial Number: WMC5C0D74WLX;
Model: WD2000F9MZ-76NVPL0;
Date: 14 DEC 2014;
DCM: HBNNNVJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1032/4146;
1 : 1 : 114D/4429;
2 : 2 : FFE/4094;
3 : 3 : 1169/4457;
4 : 4 : 107E/4222;
5 : 5 : 113A/4410;
;
ROM F/W version:00O1009E;
Preamp vendor: 0x0001;
Preamp revision:0x0003;
;
HDD with Serial Number: WMC5C0D2XR48;
Model: WD2000F9MZ-76NVPL0;
Date: 15 DEC 2014;
DCM: HARNNVJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AE;
PCB Revision: 2060-771822-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10AC/4268;
1 : 1 : 11CE/4558;
2 : 2 : 10C5/4293;
3 : 3 : 11F4/4596;
4 : 4 : 10E6/4326;
5 : 5 : 11D6/4566;
;
ROM F/W version: 0001009E;
Heads map: 0,1,2,3,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0003;
;
HDD with Serial Number: WCC5C0037050;
Model: WD2000F9MZ-76NVPL0;
Date: 19 MAR 2014;
DCM: HANNNVJMBB;
Product of: Thailand;
PCB Sticker: 771822-H02 AC;
PCB Revision: 2060-771822-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 10A5/4261;
1 : 1 : 1117/4375;
2 : 2 : 1176/4470;
3 : 3 : 1211/4625;
4 : 4 : 11A1/4513;
5 : 5 : 10B4/4276;
ROM F/W version……………………. : 00010070;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;

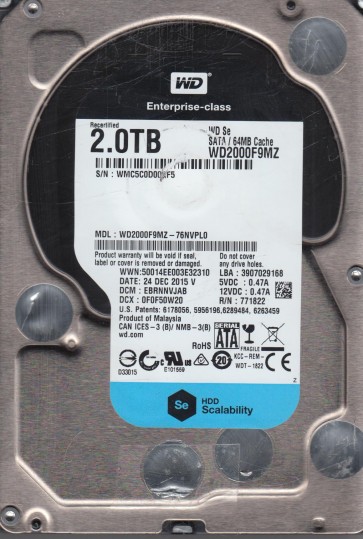

HDD with Serial Number: WMC5C0D00KF5;
Model: WD2000F9MZ-76NVPL0;
Date: 24 DEC 2015;
DCM: EBRNNVJAB;
Product of: Malaysia;
PCB Sticker: 771822-H02 AD;
PCB Revision: 2060-771822-002 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 1118/4376;
1 : 1 : 1157/4439;
2 : 2 : 1106/4358;
3 : 3 : 1146/4422;
4 : 4 : 110A/4362;
5 : 5 : 1140/4416;
ROM F/W version……………………. : 000100C2;
Heads map…………………………. : 0,1,2,3,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;
;

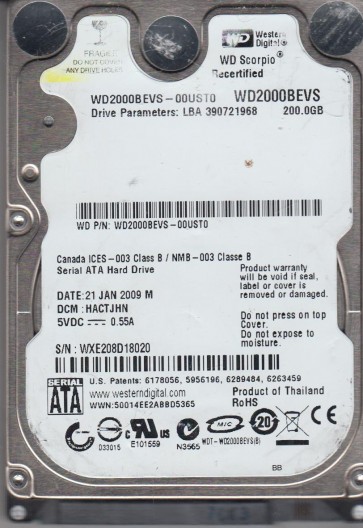

HDD with Serial Number: WXE208D18020;
Model: WD2000BEVS-00UST0;
Date: 21 JAN 2009;
DCM: HACTJHN;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AD;
PCB Revision: 2060-701499-000 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AF5/2805;
1 : 1 : B56/2902;
2 : 2 : B1A/2842;
3 : 3 : AE6/2790;
;
ROM F/W version……………………. : 00040014;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;

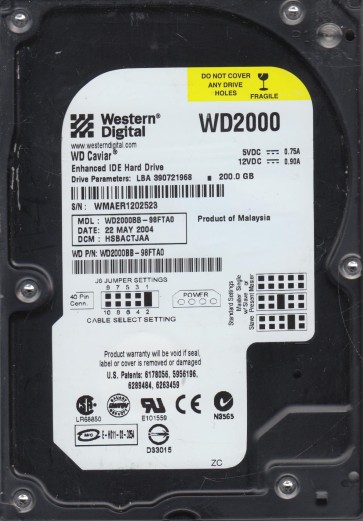

HDD with Serial Number: WMAER1202523;
Model: WD2000BB-98FTA0;
Date: 22 MAY 2004;
DCM: HSBACTJAA;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DJ;
PCB Revision: 2060-001173-004 REV A;
;
ROM version……………………….. : 15.4C.;
Head map………………………….. : 0,1,3,4,5;
;
;
;

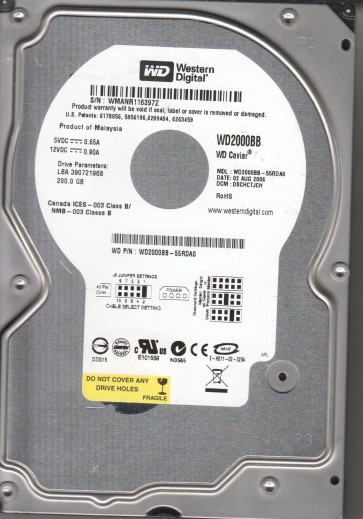

HDD #1 Specs:;
SN: WMANR1163972;
Model: WD2000BB-55RDA0;
Date: 02 AUG 2006;
DCM: DSCHCTJCH ;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 44A/1098;
1 : 1 : 44C/1100;
2 : 2 : 454/1108;
3 : 4 : 46C/1132;
4 : 5 : 460/1120;
;
ROM F/W version……………………. : 20A5M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

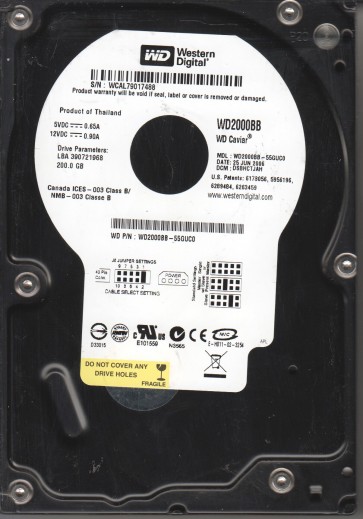

HDD #1 Specs:;
SN: WCAL79017488;
Model: WD2000BB-55GUC0;
Date: 25 JUN 2006;
DCM: DSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-701265-200 AM;
PCB Revision: 2060-701265-001 REV A;
;
ROM version……………………….. : 21.DP.;
Head map………………………….. : 0,1,2,4,5;
;

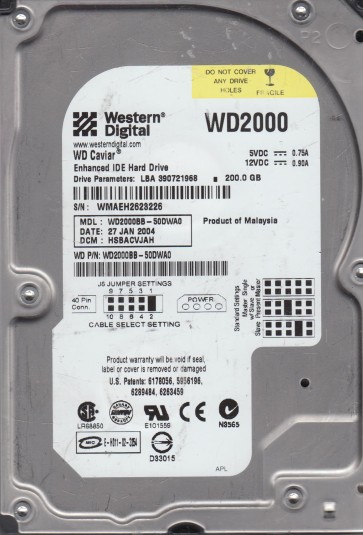

HDD with Serial Number: WMAEH2623226;
Model: WD2000BB-50DWA0;
Date: 27 JAN 2004;
DCM: HSBACVJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;
;
;
