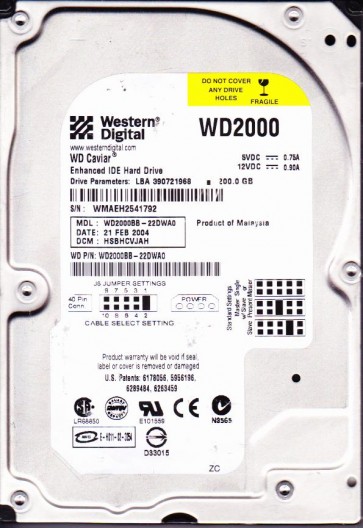

Specifications:;
WD2000BB-22DWA0;
DATE 21 FEB 2004;
DCM HSBHCVJAH;
SN WMAEH2541792;
Product of Malaysia;
PCB Sticker: 2061-001173-000 DH;
PCB Revision: 2060-001173-004 REV A;

;

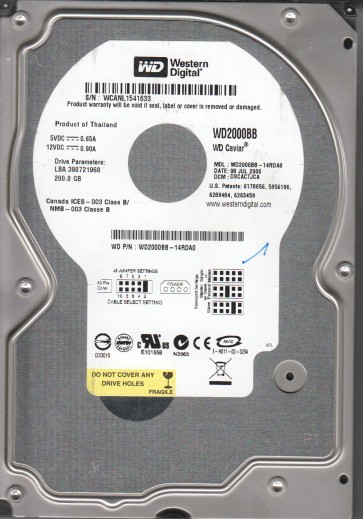

HDD #1 Specs:;
SN: WCANL1541633;
Model: WD2000BB-14RDA0;
Date: 08 JUL 2006;
DCM: DSCACTJCA ;
Product of: Thailand;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4BC/1212;
1   : 1   : 4A8/1192;
2   : 3   : 464/1124;
3   : 4   : 4B2/1202;
4   : 5   : 4B2/1202;

;

ROM F/W version……………………. : 201UM;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

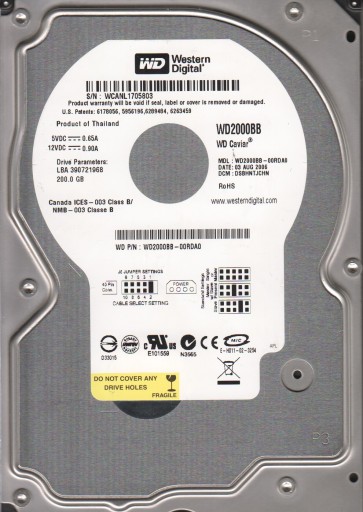

Specifications;
SN: WCANL1705803;
Model: WD2000BB-00RDA0;
Date: 03 AUG 2006;
DCM: DSBHNTJCHN ;
Product of: Thailand;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 414/1044;
1   : 1   : 4AE/1198;
2   : 3   : 4AE/1198;
3   : 4   : 44A/1098;
4   : 5   : 4B4/1204;
ROM F/W version……………………. : 20A5M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WMANK4830611;
Model: WD2000BB-00RDA0;
Date: 08 OCT 2006;
DCM: DSBACTJCA;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 ADD8;
PCB Revision: 2060-701292-002 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 450/1104;
1   : 2   : 408/1032;
2   : 3   : 44A/1098;
3   : 4   : 48E/1166;
4   : 5   : 44C/1100;
ROM F/W version……………………. : 20A8M;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;

;

HDD #1 Specs:;
SN: WMALL1276128;
Model: WD2000BB-00GUC0;
Date: 08 MAR 2006;
DCM: DSCANT2CH ;
Product of: Malaysia;
PCB Sticker: 2061-701266-200 AK;
PCB Revision: 2060-701266-001 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 5;
Head map………………………….. : 0,1,2,4,5;
ROM version……………………….. : 21.DP.;
;
;
;

;

Specifications;
SN: WMAL73921061;
Model: WD2000BB-00GUC0;
Date: 15 FEB 2006;
DCM: DSCANT2CA ;
Product of: Malaysia;
PCB Sticker: 2061-701266-200 AK;
PCB Revision: 2060-701266-001 REV A;

;

ROM version……………………….. : 21.1P.;
Head map………………………….. : 0,1,2,3,4;

;

;
;

;

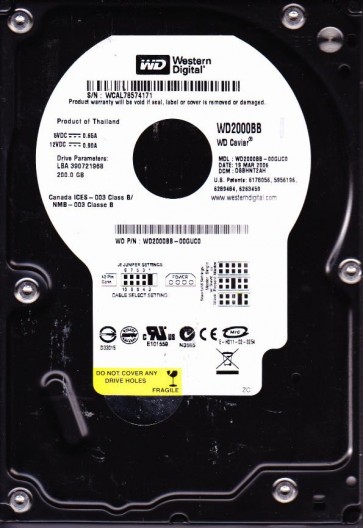

Specifications:;
WD2000BB-00GUC0;
DATE 19 MAR 2006;
DCM DSBHNT2AH;
SN WCAL78574171;
Product of Thailand;
PCB Sticker: 2061-701266-200 AK;
PCB Revision: 2060-701266-001 REV A;

;

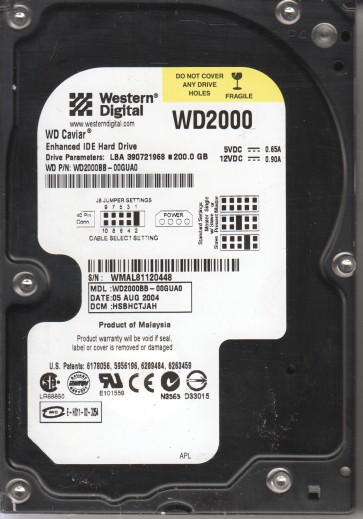

HDD #1 Specs:;
SN: WMAL81120448;
Model: WD2000BB-00GUA0;
Date: 05 AUG 2004;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001266-100 AB;
PCB Revision: 2060-001266-001 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 5;
Head map………………………….. : 0,1,3,4,5;
;
;

;

HDD with Serial Number: WCALL1256860;
Model: WD2000BB-00GUA0;
Date: 22 NOV 2004;
DCM: HSBACTJAA;
Product of: Thailand;
PCB Sticker: 2061-001266-200 AD;
PCB Revision: 2060-001266-001 REV A;
;

ROM version……………………….. : 08.DW.;
Head map………………………….. : 0,1,2,4,5;

;

HDD #1 Specs:;
SN: WCAL81703861;
Model: WD2000BB-00GUA0;
Date: 23 DEC 2004;
DCM: DSBHNTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001266-200 AF;
PCB Revision: 2060-001266-001 REV A;

;

ROM version……………………….. : 08.9W.;
Head map………………………….. : 0,1,3,4,5;
;
;
;

;
