HDD #1 Specs:;
SN: WMANL1385990;
Model: WD2000BB-22RDA0;
Date: 07 MAY 2006;
DCM: DSCHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B0/1200;
1   : 1   : 46E/1134;
2   : 3   : 476/1142;
3   : 4   : 4A0/1184;
4   : 5   : 490/1168;
ROM F/W version……………………. : 201UM;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

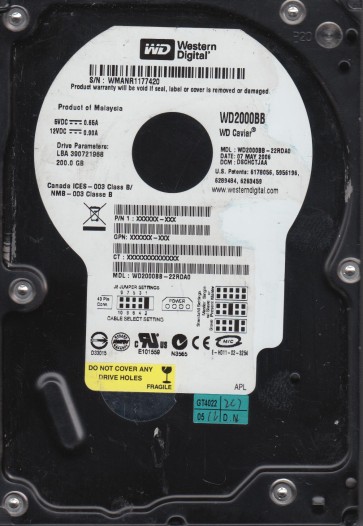

HDD #1 Specs:;
SN: WMANR1177420;
Model: WD2000BB-22RDA0;
Date: 07 MAY 2006;
DCM: DSCHCTJAA ;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AA;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 414/1044;
1   : 1   : 47E/1150;
2   : 2   : 42C/1068;
3   : 4   : 468/1128;
4   : 5   : 44E/1102;
ROM F/W version……………………. : 209UM;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

;
;

;

;
;
;

;

HDD with Serial Number: WMANK4085231;
Model: WD2000BB-22RDA0;
Date: 23 AUG 2006;
DCM: DSBAYT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701292-B00 AD;
PCB Revision: 2060-701292-001 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 490/1168;
1 : 1 : 4DE/1246;
2 : 2 : 4C2/1218;
3 : 4 : 4C0/1216;
4 : 5 : 4CA/1226;
ROM F/W version……………………. : 20A7M;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

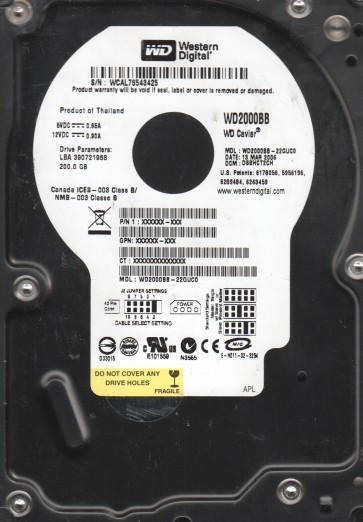

HDD #1 Specs:;
SN: WCAL78543425;
Model: WD2000BB-22GUC0;
Date: 13 MAR 2006;
DCM: DSBHCT2CH ;
Product of: Thailand;
PCB Sticker: 2061-701266-200 AK;
PCB Revision: 2060-701266-001 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 5;
Head map………………………….. : 0,1,2,3,4;
ROM version……………………….. : 21.DP.;
;
;
;

;

HDD with Serial Number: WCAL83156354;
Model: WD2000BB-22GUC0;
Date: 22 OCT 2005;
DCM: DSBACTJCA;
Product of: Thailand;
PCB Sticker: 2061-701266-200 AH;
PCB Revision: 2060-701266-001 REV A;
;

;

HDD with Serial Number: WCAL82624496;
Model: WD2000BB-22GUC0;
Date: 13 JUN 2005;
DCM: DSBACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701266-200 AG;
PCB Revision: 2060-701266-001 REV A;
;

;

HDD #1 Specs:;
SN: WCALL1046885;
Model: WD2000BB-22GUA0;
Date: 21 SEP 2004;
DCM: HSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001266-100 AC;
PCB Revision: 2060-001266-001 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 5;
Head map………………………….. : 0,1,2,4,5;
;
;

;

HDD with Serial Number: WCAL71433937;
Model: WD2000BB-22GUA0;
Date: 27 SEP 2004;
DCM: HSBHCTJAA;
Product of: Thailand;
PCB Sticker: 2061-001266-100 AC;
PCB Revision: 2060-001266-001 REV A;
;

ROM version……………………….. : 08.1T.;
Head map………………………….. : 1,2,3,4,5;

;

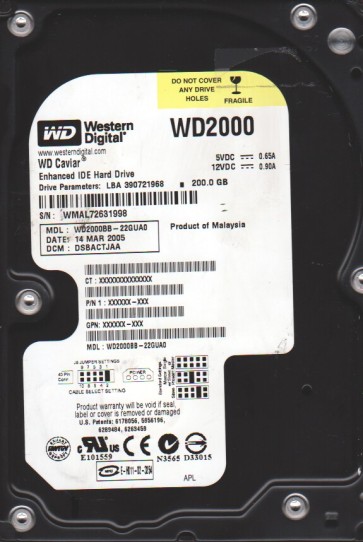

Specifications;
SN: WMAL72631998;
Model: WD2000BB-22GUA0;
Date: 14 MAR 2005;
DCM: DSBACTJAA ;
Product of: Malaysia;
PCB Sticker: 2061-001265-200 AH;
PCB Revision: 2060-001265-001 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 5;
Head map………………………….. : 1,2,3,4,5;
ROM version……………………….. : 08.24.;
;
;
;
;

;

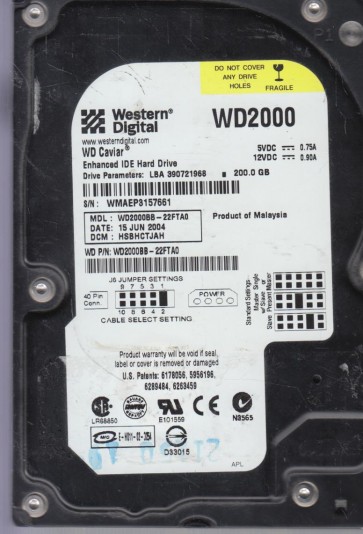

HDD with Serial Number: WMAEP3157661;
Model: WD2000BB-22FTA0;
Date: 15 JUN 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DK;
PCB Revision: 2060-001173-004 REV 4;
;

;
