WD1601ABYS-18C0A0, DCM DBNNNTJEBN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS25678082;
Model: WD1601ABYS-18C0A0;
Date: 20 JUL 2008;
DCM: DBNNNTJEBN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 99E/2462;
1   : 1   : A1C/2588;
ROM F/W version……………………. : 005C008H;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

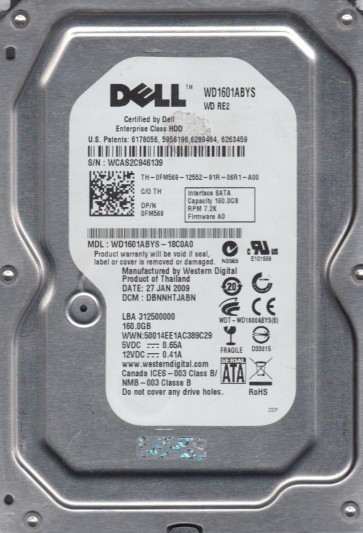

WD1601ABYS-18C0A0, DCM DBNNHTJABN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS2C946139;
Model: WD1601ABYS-18C0A0;
Date: 27 JAN 2009;
DCM: DBNNHTJABN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A36/2614;
1   : 1   : 9E4/2532;
ROM F/W version……………………. : 005C008H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;
;
;
;
;

;

WD1601ABYS-01C0A0, DCM HHRNHTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS2C690566;
Model: WD1601ABYS-01C0A0;
Date: 19 JAN 2009;
DCM: HHRNHTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A70/2672;
1 : 1 : A3C/2620;

;

ROM F/W version……………………. : 005C008H;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

WD1601ABYS-01C0A0, DCM HHNNHT2AAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS29971231;
Model: WD1601ABYS-01C0A0;
Date: 03 NOV 2008;
DCM: HHNNHT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A32/2610;
1   : 1   : 9F0/2544;
ROM F/W version……………………. : 005C008H;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0005;
;
;
;
;

;

WD1601ABYS-01C0A0, DCM HGRNHTJEAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS24106774;
Model: WD1601ABYS-01C0A0;
Date: 11 JUN 2008;
DCM: HGRNHTJEAN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AG;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9E4/2532;
1 : 1 : A3A/2618;
ROM F/W version……………………. : 005C008H;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

WD1601ABYS-01C0A0, DCM HGRNHTJAAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS23781306;
Model: WD1601ABYS-01C0A0;
Date: 11 JUN 2008;
DCM: HGRNHTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AG;
PCB Revision: 2060-701477-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9EA/2538;
1 : 1 : A9A/2714;
ROM F/W version……………………. : 005C008H;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0003;

;

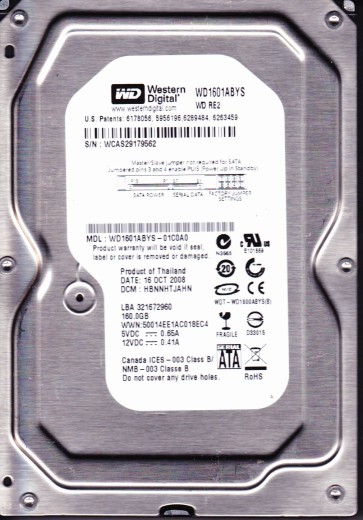

WD1601ABYS-01C0A0, DCM HBNNHTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

Specifications:;
SN WCAS29179562;
Model WD1601ABYS-01C0A0;
Date 16 OCT 2008;
DCM HBNNHTJAHN ;
Product of Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A58/2648;
1   : 1   : A06/2566;
;
;

;

WD1601ABYS-01C0A0, DCM DGRNHT2AGN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAS29935836;
Model: WD1601ABYS-01C0A0;
Date: 03 NOV 2008;
DCM: DGRNHT2AGN;
Product of: Thailand;
PCB Sticker: 2061-701477-900 AGD10;
PCB Revision: 2060-701477-002 REV A;
;

ROM F/W versionn 005C008H;
Heads map:  :   0,1;
Preamp vendor: x000;
Preamp revision: x0005;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A70/2672;
1   : 1   : A9A/2714

;

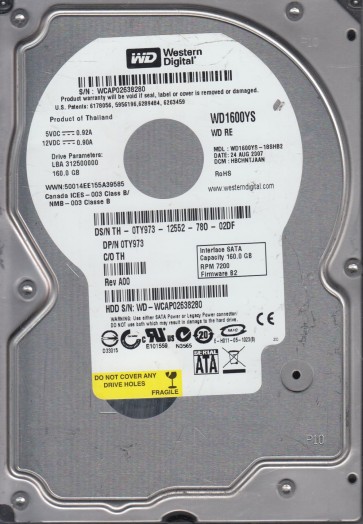

WD1600YS-18SHB2, DCM HBCHNTJAAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAP02638280;
Model: WD1600YS-18SHB2;
Date: 24 AUG 2007;
DCM: HBCHNTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B6/1206;
1   : 1   : 488/1160;
2   : 4   : 4C2/1218;
3   : 5   : 498/1176;
ROM F/W version……………………. : 0815C;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;
