HDD with Serial Number: WCAP02463806;
Model: WD1600YS-18SHB1;
Date: 03 JUL 2007;
DCM: HSBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A4/1188;
1 : 1 : 47A/1146;
2 : 4 : 49E/1182;
3 : 5 : 472/1138;

;

ROM F/W version:0893C;
Preamp vendor:0x0001;
Preamp revision:0x0004;

;

HDD with Serial Number: WCAP02511117;
Model: WD1600YS-18SHB1;
Date: 07 JUL 2007;
DCM: HSBANTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B4/1204;
1   : 1   : 478/1144;
2   : 4   : 4BC/1212;
3   : 5   : 454/1108;
ROM F/W version……………………. : 0893C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

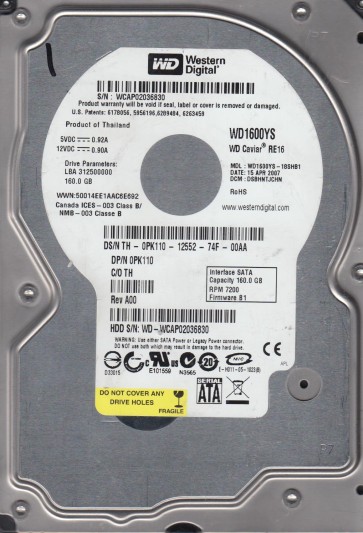

HDD with Serial Number: WCAP02036830;
Model: WD1600YS-18SHB1;
Date: 15 APR 2007;
DCM: DSBHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 464/1124;
1   : 1   : 4C0/1216;
2   : 4   : 472/1138;
3   : 5   : 504/1284;
ROM F/W version……………………. : 0813C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCAP02035263;
Model: WD1600YS-18SHB1;
Date: 13 APR 2007;
DCM: DSBANT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AE;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 47E/1150;
1 : 1 : 4E6/1254;
2 : 4 : 47E/1150;
3 : 5 : 49E/1182;
ROM F/W version……………………. : 0893C;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCAP01404513;
Model: WD1600YS-18SHB0;
Date: 23 NOV 2006;
DCM: DSBHCT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AC;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4B2/1202;
1 : 1 : 4FA/1274;
2 : 4 : 4E4/1252;
3 : 5 : 4EE/1262;
ROM F/W version……………………. : 080NC;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

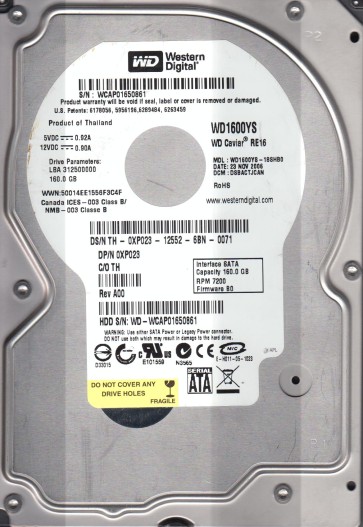

HDD #2 Specs:;
SN: WCAP01650861;
Model: WD1600YS-18SHB0;
Date: 23 NOV 2006;
DCM: DSBACTJCAN ;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AC;
PCB Revision: 2060-701335-005 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 49E/1182;
1   : 1   : 4A6/1190;
2   : 4   : 494/1172;
3   : 5   : 4BC/1212;
ROM F/W version……………………. : 0813C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;

;

HDD with Serial Number: WCAP02132402;
Model: WD1600YS-01SHB1;
Date: 16 APR 2007;
DCM: HSBANTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A0/1184;
1 : 1 : 4C6/1222;
2 : 4 : 494/1172;
3 : 5 : 53E/1342;

;

ROM F/W version……………………. : 0813C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCAP02587406;
Model: WD1600YS-01SHB1;
Date: 27 AUG 2007;
DCM: HBCHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 49A/1178;
1 : 1 : 4A0/1184;
2 : 4 : 4AE/1198;
3 : 5 : 494/1172;
ROM F/W version……………………. : 0813C;
Heads map…………………………. : 0,1,4,5;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0004;

;

HDD #1 Specs:;
Serial Number: WCAP02414856;
Model: WD1600YS-01SHB1;
Date: 19 JUN 2007;
DCM: DSBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A6/1190;
1   : 1   : 4A6/1190;
2   : 4   : 4C8/1224;
3   : 5   : 4E2/1250;
;
;

HDD with Serial Number: WCAP03435124;
Model: WD1600YS-01SHB1;
Date: 17 JUN 2008;
DCM: DSBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B6/1206;
1   : 1   : 484/1156;
2   : 4   : 488/1160;
3   : 5   : 488/1160;
ROM F/W version……………………. : 0895C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;

;

HDD #1 Specs:;
Serial Number: WCAP02980730;
Model: WD1600YS-01SHB1;
Date: 24 NOV 2007;
DCM: DBBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 0893C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1,4,5;

;

Micro Jogs;

;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A4/1188;
1   : 1   : 482/1154;
2   : 4   : 4A6/1190;
3   : 5   : 464/1124;
;
;

;

HDD 2;
Serial Number: WCAP03447457;
Model: WD1600YS-01SHB1;
Date: 17 JUN 2008;
DCM: DBBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-200 AF;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 0815C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1,4,5;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4E8/1256;
1 : 1 : 4AE/1198;
2 : 4 : 502/1282;
3 : 5 : 4A6/1190;

;



;
