WD1600JS-75NCB3, DCM HSCACT2CAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5855920;
Model: WD1600JS-75NCB3;
Date: 27 AUG 2006;
DCM: HSCACT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A2/1186;
1   : 1   : 49E/1182;
2   : 4   : 476/1142;
3   : 5   : 4A0/1184;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

WD1600JS-75NCB3, DCM HSBHCTJCH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM4795974;
Model: WD1600JS-75NCB3;
Date: 22 JUN 2006;
DCM: HSBHCTJCH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 109BE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1,4,5;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 496/1174;
1 : 1 : 420/1056;
2 : 4 : 45A/1114;
3 : 5 : 42E/1070;

;

;
;

;

WD1600JS-75NCB3, DCM HSBHCTJCAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5373879;
Model: WD1600JS-75NCB3;
Date: 25 JUL 2006;
DCM: HSBHCTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AG;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4AC/1196;
1 : 1 : 492/1170;
2 : 4 : 4B6/1206;
3 : 5 : 494/1172;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

WD1600JS-75NCB3, DCM HSBANTJAAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD #2 Specs:;
Serial Number: WCANM7053744;
Model: WD1600JS-75NCB3;
Date: 13 OCT 2006;
DCM: HSBANTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AL;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 464/1124;
1   : 1   : 4AC/1196;
2   : 4   : 45A/1114;
3   : 5   : 4B6/1206;
;
ROM F/W version……………………. : 101BE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;

HDD with Serial Number: WCANM6660351;
Model: WD1600JS-75NCB3;
Date: 12 OCT 2006;
DCM: HSBANTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4B2/1202;
1   : 1   : 492/1170;
2   : 4   : 4B6/1206;
3   : 5   : 4A0/1184;
;
ROM F/W version……………………. : 101BE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

WD1600JS-75NCB3, DCM DSCHNT2AHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WCANMH816824;
Model: WD1600JS-75NCB3;
Date: 31 MAY 2007;
DCM: DSCHNT2AHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AS;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43A/1082;
1   : 1   : 480/1152;
2   : 4   : 43C/1084;
3   : 5   : 480/1152;
ROM F/W version……………………. : 105ME;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

WD1600JS-75NCB3, DCM DSBHNTJCHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM9004313;
Model: WD1600JS-75NCB3;
Date: 02 JAN 2007;
DCM: DSBHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 488/1160;
1 : 1 : 4A4/1188;
2 : 4 : 478/1144;
3 : 5 : 49C/1180;
ROM F/W version……………………. : 109GE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

WD1600JS-75NCB3, DCM DSBHNTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5584151;
Model: WD1600JS-75NCB3;
Date: 05 OCT 2006;
DCM: DSBHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 41E/1054;
1 : 1 : 44C/1100;
2 : 4 : 41E/1054;
3 : 5 : 466/1126;
ROM F/W version……………………. : 109BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

WD1600JS-75NCB3, DCM DSBACT2AAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM6265582;
Model: WD1600JS-75NCB3;
Date: 12 SEP 2006;
DCM: DSBACT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 494/1172;
1 : 1 : 462/1122;
2 : 4 : 4A0/1184;
3 : 5 : 468/1128;

;

ROM F/W version……………………. : 109BE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

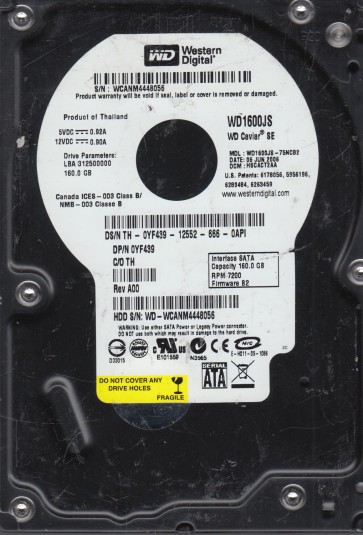

WD1600JS-75NCB2, DCM HSCACT2AA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM4448056;
Model: WD1600JS-75NCB2;
Date: 06 JUN 2006;
DCM: HSCACT2AA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4C0/1216;
1 : 1 : 4E0/1248;
2 : 4 : 4A6/1190;
3 : 5 : 4E4/1252;
ROM F/W version……………………. : 101AE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision…………………… : 0x0003;

;
