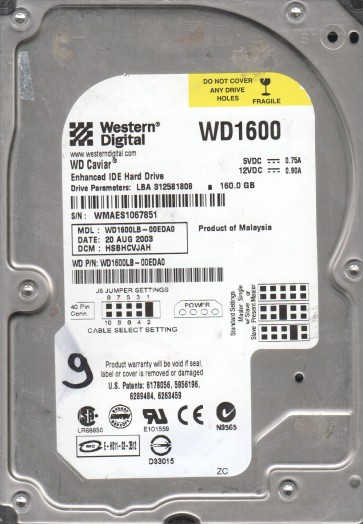

WD1600LB-00EDA0, DCM HSBHCVJAH, Western Digital 160GB IDE 3.5 Hard Drive

Specifications;
SN: WMAES1067851;
Model: WD1600LB-00EDA0;
Date: 20 AUG 2003;
DCM: HSBHCVJAH ;
Product of: Malaysia;
PCB Sticker: 2061-001173-000 DA;
PCB Revision: 2060-001173-004 REV A;

;

Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,4,5;
ROM version……………………….. : 15.31.;
;
;
;
;

;

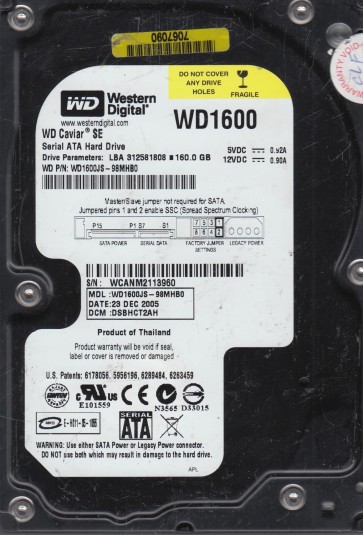

WD1600JS-98MHB0, DCM DSBHCT2AH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM2113960;
Model: WD1600JS-98MHB0;
Date: 23 DEC 2005;
DCM: DSBHCT2AH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 482/1154;
1 : 1 : 492/1170;
2 : 4 : 480/1152;
3 : 5 : 488/1160;
ROM F/W version……………………. : 02A7C;
Heads map…………………………. : 0,1,4,5;
Preamp vendor…………………….. : 0x0000;
Preamp revision…………………… : 0x0004;

;

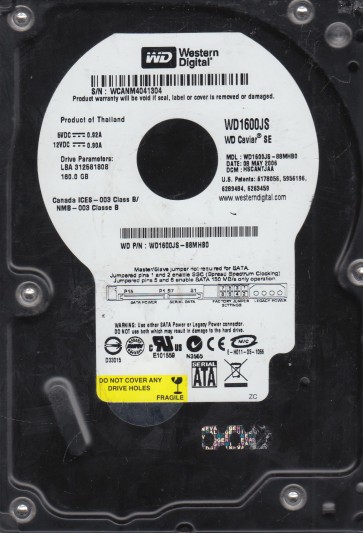

WD1600JS-88MHB0, DCM HSCANTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM4041304;
Model: WD1600JS-88MHB0;
Date: 08 MAY 2006;
DCM: HSCANTJAA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44C/1100;
1   : 1   : 460/1120;
2   : 4   : 448/1096;
3   : 5   : 468/1128;
ROM F/W version……………………. : 02AEC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

WD1600JS-75NCB3, DCM HSCHNT2AH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM4848029;
Model: WD1600JS-75NCB3;
Date: 02 JUL 2006;
DCM: HSCHNT2AH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 44A/1098;
1 : 1 : 494/1172;
2 : 4 : 456/1110;
3 : 5 : 486/1158;
ROM F/W version……………………. : 109BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

WD1600JS-75NCB3, DCM HSCHCTJCH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM4632758;
Model: WD1600JS-75NCB3;
Date: 20 JUN 2006;
DCM: HSCHCTJCH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 49A/1178;
1 : 1 : 438/1080;
2 : 4 : 4AE/1198;
3 : 5 : 460/1120;

;

ROM F/W version……………………. : 109BE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

WD1600JS-75NCB3, DCM HSCHCTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5495078;
Model: WD1600JS-75NCB3;
Date: 22 AUG 2006;
DCM: HSCHCTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 434/1076;
1 : 1 : 438/1080;
2 : 4 : 43E/1086;
3 : 5 : 43E/1086;
ROM F/W version……………………. : 109BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

WD1600JS-75NCB3, DCM HSCHCT2CAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5854860;
Model: WD1600JS-75NCB3;
Date: 27 AUG 2006;
DCM: HSCHCT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 47C/1148;
1 : 1 : 456/1110;
2 : 4 : 498/1176;
3 : 5 : 448/1096;
ROM F/W version……………………. : 109BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

WD1600JS-75NCB3, DCM HSCANT2AAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WCANMF067570;
Model: WD1600JS-75NCB3;
Date: 08 APR 2007;
DCM: HSCANT2AAN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45A/1114;
1   : 1   : 486/1158;
2   : 4   : 452/1106;
3   : 5   : 47E/1150;
ROM F/W version……………………. : 109ME;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

WD1600JS-75NCB3, DCM HSCACT2CHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5858779;
Model: WD1600JS-75NCB3;
Date: 27 AUG 2006;
DCM: HSCACT2CHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4E2/1250;
1 : 1 : 482/1154;
2 : 4 : 4A0/1184;
3 : 5 : 48A/1162;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;
