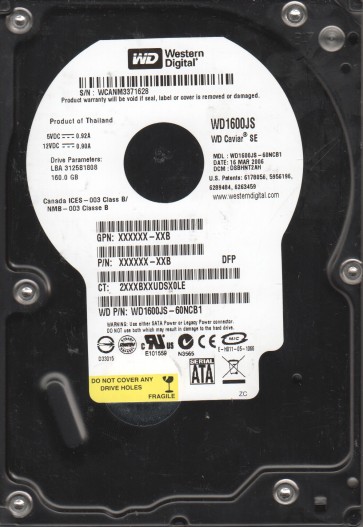

HDD #1 Specs:;
SN: WCANM3371628;
Model: WD1600JS-60NCB1;
Date: 16 MAR 2006;
DCM: DSBHNT2AH ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AG;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43A/1082;
1   : 1   : 440/1088;
2   : 4   : 426/1062;
3   : 5   : 42E/1070;
ROM F/W version……………………. : 1058E;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD with Serial Number: WCANME842017;
Model: WD1600JS-60NCB1;
Date: 06 APR 2007;
DCM: DSBHCT2CHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 43C/1084;
1 : 1 : 45C/1116;
2 : 4 : 43C/1084;
3 : 5 : 484/1156;
ROM F/W version……………………. : 105ME;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCANM6206601;
Model: WD1600JS-60MHB5;
Date: 07 SEP 2006;
DCM: HSCHNTJCAB;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 446/1094;
1 : 1 : 432/1074;
2 : 4 : 48C/1164;
3 : 5 : 428/1064;
ROM F/W version……………………. : 408NE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0004;

;

HDD #1 Specs:;
Serial Number: WCANMD250741;
Model: WD1600JS-60MHB5;
Date: 09 MAR 2007;
DCM: HSBHNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 448/1096;
1   : 1   : 480/1152;
2   : 4   : 460/1120;
3   : 5   : 4B6/1206;
ROM F/W version……………………. : 404TE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WCANMD711455;
Model: WD1600JS-60MHB5;
Date: 09 MAR 2007;
DCM: HBBHYT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 47A/1146;
1   : 1   : 48C/1164;
2   : 4   : 44E/1102;
3   : 5   : 45A/1114;
ROM F/W version……………………. : 408TE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

Specifications;

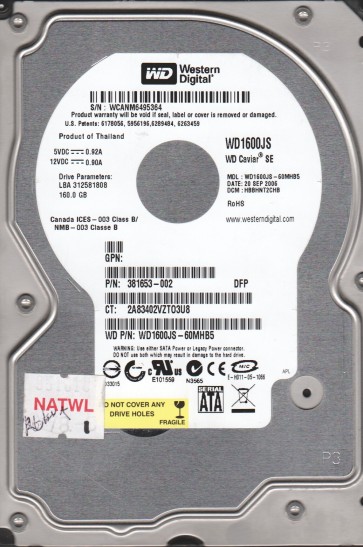

SN: WCANM6495364;
Model: WD1600JS-60MHB5;
Date: 20 SEP 2006;
DCM: HBBHNT2CHB ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

ROM F/W version……………………. : 408QE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
Heads map…………………………. : 0,1,4,5;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 488/1160;
1   : 1   : 4B4/1204;
2   : 4   : 486/1158;
3   : 5   : 4C4/1220;
;
;

;

HDD #1 Specs:;
SN: WCANMH657336;
Model: WD1600JS-60MHB5;
Date: 19 MAY 2007;
DCM: HBBHNT2AHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AS;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48A/1162;
1   : 1   : 4A8/1192;
2   : 4   : 49E/1182;
3   : 5   : 4A2/1186;
ROM F/W version……………………. : 404WE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD #1 Specs:;
SN: WCANME331818;
Model: WD1600JS-60MHB5;
Date: 22 MAR 2007;
DCM: DSBHNT2AHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4CE/1230;
1   : 1   : 4AC/1196;
2   : 4   : 4C4/1220;
3   : 5   : 4D2/1234;
ROM F/W version……………………. : 400WE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;

;

;
;

;

HDD with Serial Number: WCANMK387885;
Model: WD1600JS-60MHB5;
Date: 12 JUL 2007;
DCM: DBCHYTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AT;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 46C/1132;
1   : 1   : 4B4/1204;
2   : 4   : 472/1138;
3   : 5   : 4C4/1220;
ROM F/W version……………………. : 408WE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

HDD #1 Specs:;
SN: WCANME331222;
Model: WD1600JS-60MHB5;
Date: 22 MAR 2007;
DCM: DBBHNT2CHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44A/1098;
1   : 1   : 47E/1150;
2   : 4   : 490/1168;
3   : 5   : 4CC/1228;
ROM F/W version……………………. : 400WE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;
