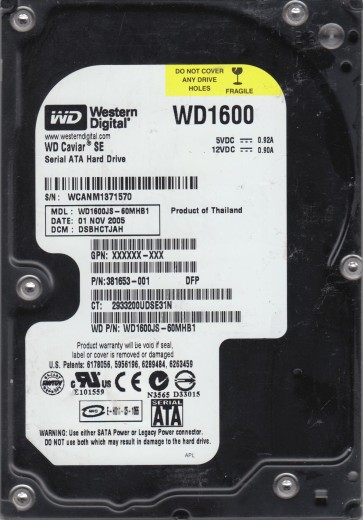

HDD with Serial Number: WCANM1371570;
Model: WD1600JS-60MHB1;
Date: 01 NOV 2005;
DCM: DSBHCTJAH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AE;
PCB Revision: 2060-701335-005 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 440/1088;
1   : 1   : 492/1170;
2   : 4   : 442/1090;
3   : 5   : 498/1176;
;
ROM F/W Version: 108TE;
Heads map:  0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004

;

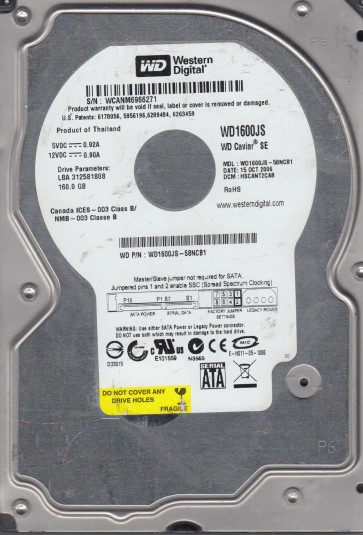

HDD with Serial Number: WCANM6966271;
Model: WD1600JS-58NCB1;
Date: 15 OCT 2006;
DCM: HSCANT2CAB;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AL;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 430/1072;
1 : 1 : 48A/1162;
2 : 4 : 3DC/988;
3 : 5 : 490/1168;
ROM F/W version……………………. : 408QE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

Specifications;

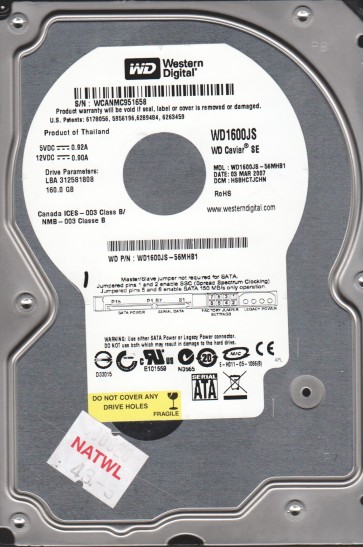

SN: WCANMC951658;
Model: WD1600JS-56MHB1;
Date: 03 MAR 2007;
DCM: HSBHCTJCHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

;

HDD with Serial Number: WCANMA414291;
Model: WD1600JS-55NCB1;
Date: 03 FEB 2007;
DCM: HSCHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 46C/1132;
1 : 1 : 498/1176;
2 : 4 : 470/1136;
3 : 5 : 484/1156;

;

;
ROM F/W version: 109GE;
Heads map: 0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

HDD with Serial Number: WCANM2611719;
Model: WD1600JS-55NCB1;
Date: 01 FEB 2006;
DCM: HSCHCT2AH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 490/1168;
1 : 1 : 4AC/1196;
2 : 4 : 49E/1182;
3 : 5 : 4A4/1188;

;

ROM F/W version……………………. : 1096E;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCANMD566022;
Model: WD1600JS-55NCB1;
Date: 16 MAR 2007;
DCM: HSBHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 47A/1146;
1 : 1 : 48C/1164;
2 : 4 : 494/1172;
3 : 5 : 47E/1150;

;

;
ROM F/W version: 105ME;
Heads map: 0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

HDD with Serial Number: WCANMA213294;
Model: WD1600JS-55NCB1;
Date: 01 FEB 2007;
DCM: HSBHCT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A0/1184;
1 : 1 : 516/1302;
2 : 4 : 496/1174;
3 : 5 : 53E/1342;

;

;
ROM F/W version: 101GE;
Heads map: 0,1,4,5;
Preamp vendor: 0x0000;
Preamp revision: 0x0004;

;

HDD #1 Specs:;
SN: WCANM2921506;
Model: WD1600JS-55NCB1;
Date: 13 OCT 2004;
DCM: HSBHCT2AA ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;

;

;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44E/1102;
1   : 1   : 456/1110;
2   : 4   : 45A/1114;
3   : 5   : 45C/1116;
ROM F/W version……………………. : 1096E;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCANMA738296;
Model: WD1600JS-55NCB1;
Date: 03 FEB 2007;
DCM: HSBANTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 45A/1114;
1 : 1 : 410/1040;
2 : 4 : 440/1088;
3 : 5 : 408/1032;

;

;
ROM F/W version: 109GE;
Heads map: 0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

HDD #1 Specs:;

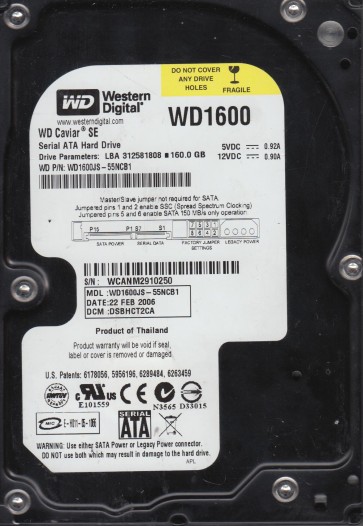

SN: WCANM2910250;
Model: WD1600JS-55NCB1;
Date: 22 FEB 2006;
DCM: DSBHCT2CA ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AG;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 46E/1134;
1   : 1   : 48A/1162;
2   : 4   : 452/1106;
3   : 5   : 48A/1162;
ROM F/W version……………………. : 1016E;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;

;
