HDD #1 Specs:;
Serial Number: WCANM9440586;
Model: WD1600JS-55MHB1;
Date: 09 JAN 2007;
DCM: HSCHNTJCHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4F0/1264;
1 : 1 : 4B8/1208;
2 : 4 : 4FA/1274;
3 : 5 : 4D2/1234;

;

ROM F/W version……………………. : 101GE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD #1 Specs:;

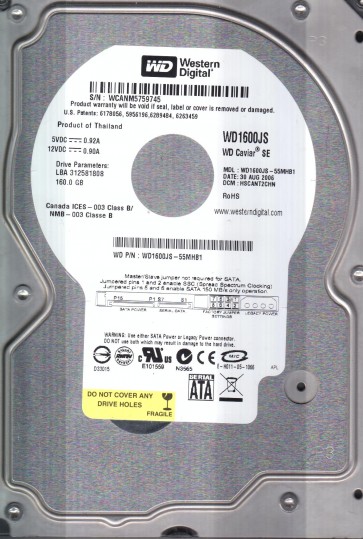

SN: WCANM5759745;
Model: WD1600JS-55MHB1;
Date: 30 AUG 2006;
DCM: HSCANT2CHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4C8/1224;
1 : 1 : 4DE/1246;
2 : 4 : 4C8/1224;
3 : 5 : 4DC/1244;

;

ROM F/W version……………………. : 101BE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCANM6845473;
Model: WD1600JS-55MHB1;
Date: 01 OCT 2006;
DCM: HBBHNT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 484/1156;
1 : 1 : 4A2/1186;
2 : 4 : 484/1156;
3 : 5 : 494/1172;

;

ROM F/W version……………………. : 109BE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCANM7439132;
Model: WD1600JS-55MHB1;
Date: 31 OCT 2006;
DCM: HBBANTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AM;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4AA/1194;
1 : 1 : 474/1140;
2 : 4 : 4A2/1186;
3 : 5 : 46C/1132;
ROM F/W version……………………. : 109GE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

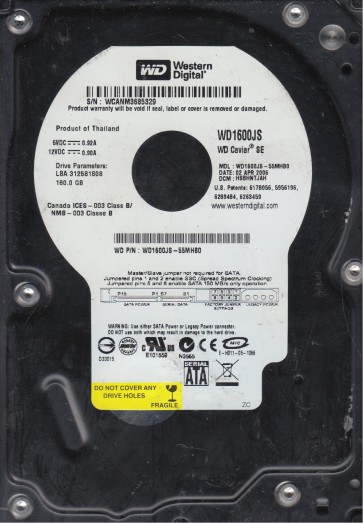

HDD with Serial Number: WCANM3685329;
Model: WD1600JS-55MHB0;
Date: 02 APR 2006;
DCM: HSBHNTJAH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AH;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 48C/1164;
1 : 1 : 45E/1118;
2 : 4 : 4A0/1184;
3 : 5 : 440/1088;

;

ROM F/W version……………………. : 02ADC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

Specifications;

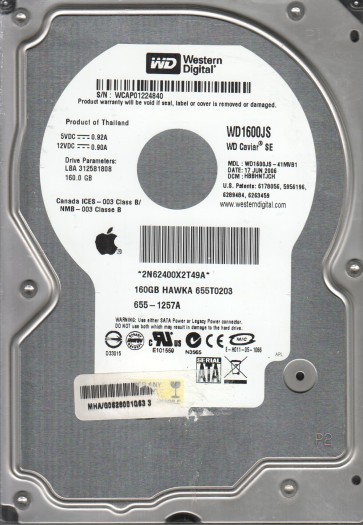

SN: WCAP01224840;
Model: WD1600JS-41MVB1;
Date: 17 JUN 2006;
DCM: HBBHNTJCH ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 488/1160;
1   : 1   : 454/1108;
2   : 4   : 4A4/1188;
3   : 5   : 450/1104;
ROM F/W version……………………. : 101BE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD with Serial Number: WCAP01787009;
Model: WD1600JS-40TGB0;
Date: 28 JAN 2007;
DCM: HSCANT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AD;
PCB Revision: 2060-701335-005 REV A;


Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 44A/1098;
1   : 1   : 4AA/1194;
2   : 4   : 442/1090;
3   : 5   : 4D4/1236;
ROM F/W version……………………. : 088VC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCAP01691629;
Model: WD1600JS-40TGB0;
Date: 10 JAN 2007;
DCM: HSCACTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AD;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4DC/1244;
1 : 1 : 4FE/1278;
2 : 4 : 4E0/1248;
3 : 5 : 4DC/1244;
ROM F/W version……………………. : 080RC;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

HDD #1 Specs:;
SN: WCAP01895890;
Model: WD1600JS-40TGB0;
Date: 21 FEB 2007;
DCM: HSBAYT2AAN ;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AD;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 470/1136;
1   : 1   : 482/1154;
2   : 4   : 472/1138;
3   : 5   : 47C/1148;
ROM F/W version……………………. : 088VC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD #2 Specs:;
SN: WCAP02187686;
Model: WD1600JS-40TGB0;
Date: 05 MAY 2007;
DCM: HSBANTJAHN ;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AE;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45E/1118;
1   : 1   : 4A6/1190;
2   : 4   : 476/1142;
3   : 5   : 4BA/1210;

ROM F/W version……………………. : 0853C;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;

;
;

;
