HDD with Serial Number: WCAP01766497;
Model: WD1600JS-40TGB0;
Date: 19 JAN 2007;
DCM: DBBANTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AD;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 43C/1084;
1 : 1 : 47A/1146;
2 : 4 : 452/1106;
3 : 5 : 4AC/1196;
ROM F/W version……………………. : 088VC;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

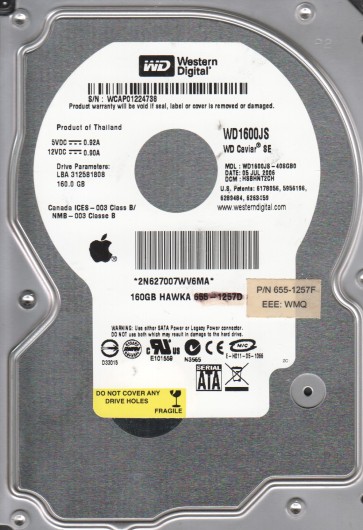

HDD #1 Specs:;
SN: WCAP01224738;
Model: WD1600JS-40SGB0;
Date: 05 JUL 2006;
DCM: HSBHNT2CH ;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AA;
PCB Revision: 2060-701335-005 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4A0/1184;
1   : 1   : 4F2/1266;
2   : 4   : 49C/1180;
3   : 5   : 4F8/1272;

ROM F/W version……………………. : 080AC;

Preamp vendor……………………… : 0x0000;

Preamp revision……………………. : 0x0004;

;
;
;

;

HDD #1 Specs:;
SN: WCAP01249520;
Model: WD1600JS-40SGB0;
Date: 10 JUL 2006;
DCM: HSBHNT2AA ;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AA;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48E/1166;
1   : 1   : 500/1280;
2   : 4   : 482/1154;
3   : 5   : 4CE/1230;
ROM F/W version……………………. : 080AC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

HDD #2 Specs:;
SN: WCAP01246183;
Model: WD1600JS-40SGB0;
Date: 09 JUL 2006;
DCM: HSBANT2AA ;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AA;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 40E/1038;
1   : 1   : 474/1140;
2   : 4   : 404/1028;
3   : 5   : 46A/1130;
;
ROM F/W version……………………. : 088AC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;

;

HDD with Serial Number: WCAP01074383;
Model: WD1600JS-40NGB2;
Date: 03 FEB 2006;
DCM: HSBHNTJAH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 466/1126;
1 : 1 : 432/1074;
2 : 4 : 44E/1102;
3 : 5 : 462/1122;

;

Heads map: 0,1,4;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

HDD with Serial Number: WCAP01035406;
Model: WD1600JS-40NGB2;
Date: 17 JAN 2006;
DCM: HSBHCTJCA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 476/1142;
1 : 1 : 432/1074;
2 : 4 : 46A/1130;
3 : 5 : 432/1074;
ROM F/W version……………………. : 1096E;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCAP01048824;
Model: WD1600JS-40NGB2;
Date: 09 JAN 2006;
DCM: HSBANTJCA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 46A/1130;
1 : 1 : 490/1168;
2 : 4 : 44C/1100;
3 : 5 : 48C/1164;
ROM F/W version……………………. : 1096E;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCAP01475514;
Model: WD1600JS-40NGB2;
Date: 17 AUG 2006;
DCM: HBCACT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4BE/1214;
1 : 1 : 4AC/1196;
2 : 4 : 4B2/1202;
3 : 5 : 4B4/1204;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCAP01181280;
Model: WD1600JS-40NGB2;
Date: 05 JUL 2006;
DCM: HBBHNT2CH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4F0/1264;
1 : 1 : 4BA/1210;
2 : 4 : 4E6/1254;
3 : 5 : 4B6/1206;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

HDD with Serial Number: WCAP01181780;
Model: WD1600JS-40NGB2;
Date: 05 JUL 2006;
DCM: HBBHNT2CH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 49C/1180;
1 : 1 : 4B2/1202;
2 : 4 : 4BE/1214;
3 : 5 : 4BA/1210;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

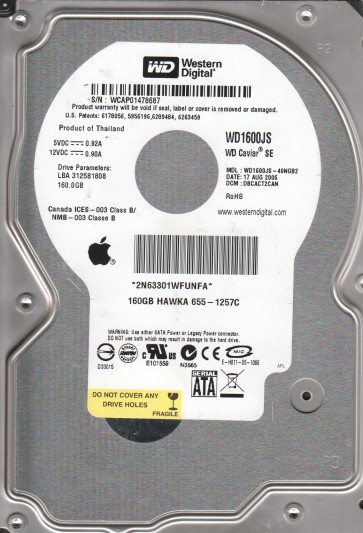

HDD #1 Specs:;
SN: WCAP01478687;
Model: WD1600JS-40NGB2;
Date: 17 AUG 2006;
DCM: DBCACT2CAN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 492/1170;
1   : 1   : 466/1126;
2   : 4   : 4A2/1186;
3   : 5   : 448/1096;
ROM F/W version……………………. : 101BE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;
