HDD with Serial Number: WMAP01192123;
Model: WD1600JS-40MVB1;
Date: 23 OCT 2005;
DCM: HSBHNTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AE;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 46E/1134;
1 : 1 : 48E/1166;
2 : 4 : 494/1172;
3 : 5 : 45C/1116;
ROM F/W version……………………. : 108TE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor…………………… : 0x0001;
Preamp revision…………………. : 0x0004;

;

HDD #1 Specs:;
Serial Number: WMAP01091699;
Model: WD1600JS-40MVB1;
Date: 28 SEP 2005;
DCM: HSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AD;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 420/1056;
1   : 1   : 458/1112;
2   : 4   : 41C/1052;
3   : 5   : 45C/1116;
ROM F/W version……………………. : 108RE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;
;

;

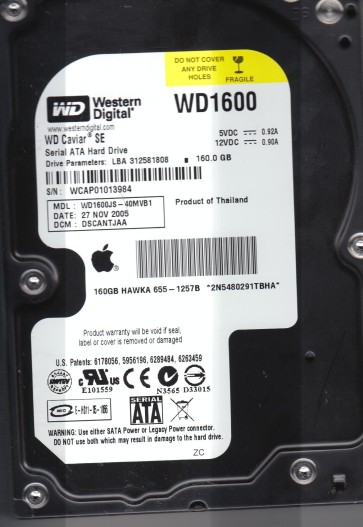

HDD #1 Specs:;
SN: WCAP01013984;
Model: WD1600JS-40MVB1;
Date: 27 NOV 2005;
DCM: DSCANTJAA ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 42A/1066;
1   : 1   : 490/1168;
2   : 4   : 430/1072;
3   : 5   : 494/1172;
ROM F/W version……………………. : 108VE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD #2 Specs:;
SN: WCAP01017039;
Model: WD1600JS-40MVB1;
Date: 28 NOV 2005;
DCM: DSBANTJCA ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 47A/1146;
1   : 1   : 444/1092;
2   : 4   : 48A/1162;
3   : 5   : 442/1090;
ROM F/W version……………………. : 108VE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WMAP01196629;
Model: WD1600JS-40MVB1;
Date: 25 OCT 2005;
DCM: DSBANTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AE;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 41C/1052;
1   : 1   : 440/1088;
2   : 4   : 430/1072;
3   : 5   : 446/1094;
ROM F/W version……………………. : 104WE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCAP01146211;
Model: WD1600JS-40HGB2;
Date: 13 APR 2006;
DCM: HSBANTJAH;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AH;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 45C/1116;
1 : 1 : 470/1136;
2 : 4 : 43A/1082;
3 : 5 : 40A/1034;

;

ROM F/W version: 1098E;
Preamp vendor: 0x0001;
Preamp revision: 0x00024;

;

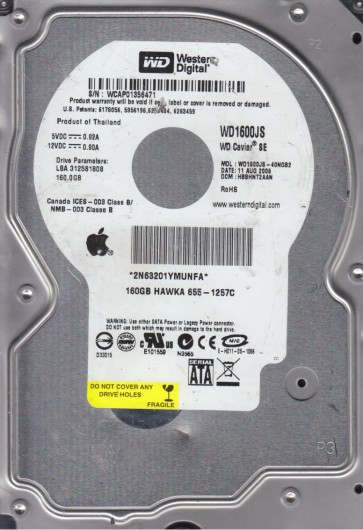

HDD with Serial Number: WCAP01356471;
Model: WD1600JS-40HGB2;
Date: 11 AUG 2006;
DCM: HBBHNT2AAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 470/1136;
1 : 1 : 46C/1132;
2 : 4 : 476/1142;
3 : 5 : 432/1074;

;

ROM F/W version: 109BE;
Preamp vendor: 0x0000;
Preamp revision: 0x0004;

;

HDD with Serial Number: WCANMH198689;
Model: WD1600JS-22NCB1;
Date: 06 MAY 2007;
DCM: HSCHCTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AR;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 514/1300;
1   : 1   : 4E6/1254;
2   : 4   : 4EC/1260;
3   : 5   : 4E8/1256;
ROM F/W version……………………. : 101ME;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCANM8118378;
Model: WD1600JS-22NCB1;
Date: 26 NOV 2006;
DCM: HSCANT2AAB;
Product of: Thailand;
PCB Sticker: 2061-701335-B0 AP;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 466/1126;
1 : 1 : 484/1156;
2 : 4 : 43A/1082;
3 : 5 : 482/1154;
ROM F/W version……………………. : 109GE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD #1 Specs:;
Serial Number: WCANMA442793;
Model: WD1600JS-22NCB1;
Date: 31 JAN 2007;
DCM: HSCACT2CHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A4/1188;
1 : 1 : 4A8/1192;
2 : 4 : 4B2/1202;
3 : 5 : 4AA/1194;

;

ROM F/W version……………………. : 109GE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;
