HDD with Serial Number: WMANM1233893;
Model: WD1600JS-08MHB0;
Date: 03 SEP 2005;
DCM: DSBHCTJCH;
Product of: Malaysia;
PCB Sticker: 2061-701335-800 AG;
PCB Revision: 2060-701335-003 REV B;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 43E/1086;
1   : 1   : 48A/1162;
2   : 4   : 41A/1050;
3   : 5   : 48C/1164;
ROM F/W version……………………. : 029RC;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

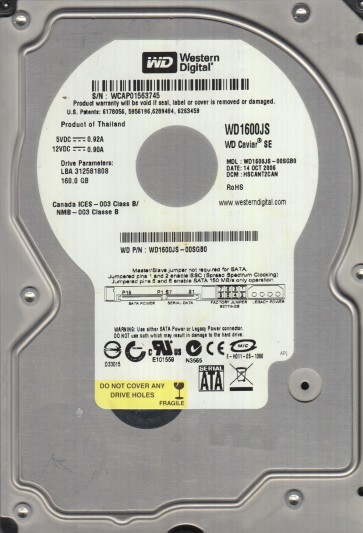

HDD #1 Specs:;
Serial Number: WCAP01563745;
Model: WD1600JS-00SGB0;
Date: 14 OCT 2006;
DCM: HSCANT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AB;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 480/1152;
1   : 1   : 4A4/1188;
2   : 4   : 46C/1132;
3   : 5   : 4A4/1188;
ROM F/W version……………………. : 088GC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

HDD with Serial Number: WCAP02835422;
Model: WD1600JS-00SGB0;
Date: 27 OCT 2007;
DCM: HSBHNTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-100 AG;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 49C/1180;
1 : 1 : 494/1172;
2 : 4 : 4A0/1184;
3 : 5 : 484/1156;

;

ROM F/W: 0895C;
Heads map: 0,1,4,5;
Preamp vendor: 0x0001;
Preamp revision: 0x0004;

;

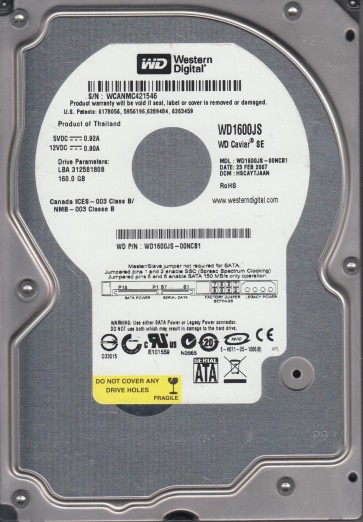

HDD with Serial Number: WCANMC421546;
Model: WD1600JS-00NCB1;
Date: 23 FEB 2007;
DCM: HSCAYTJAAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 4CC/1228;
1   : 1   : 4CE/1230;
2   : 3   : 4BA/1210;
3   : 5   : 4F2/1266;
ROM F/W version……………………. : 101GE;
Heads map…………………………. : 0,1,3,5;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0004;
;
;
;

;

HDD with Serial Number: WCANM7284454;
Model: WD1600JS-00NCB1;
Date: 20 OCT 2006;
DCM: HBCAYT2AHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AM;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4A6/1190;
1 : 1 : 4D0/1232;
2 : 4 : 4A0/1184;
3 : 5 : 4DC/1244;
ROM F/W version……………………. : 101GE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCANM7857084;
Model: WD1600JS-00NCB1;
Date: 09 NOV 2006;
DCM: HBBHNTJCAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AM;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 48C/1164;
1 : 1 : 4BE/1214;
2 : 4 : 4A6/1190;
3 : 5 : 4AC/1196;

;

ROM F/W version……………………. : 101GE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

HDD with Serial Number: WCANMC795242;
Model: WD1600JS-00NCB1;
Date: 27 FEB 2007;
DCM: HBBHNT2CAN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 468/1128;
1 : 1 : 498/1176;
2 : 4 : 4D4/1236;
3 : 5 : 4BC/1212;
ROM F/W version……………………. : 101GE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0004;

;

HDD with Serial Number: WCANM7368954;
Model: WD1600JS-00NCB1;
Date: 19 OCT 2006;
DCM: HBBANTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AL;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 450/1104;
1 : 1 : 4CE/1230;
2 : 4 : 462/1122;
3 : 5 : 4C4/1220;
ROM F/W version……………………. : 101BE;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;

;

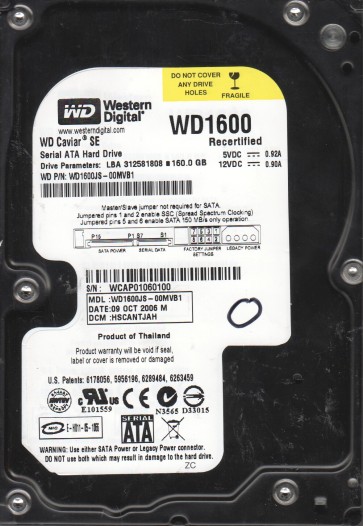

Specifications;
SN: WCAP01060100;
Model: WD1600JS-00MVB1;
Date: 09 OCT 2006;
DCM: HSCANTJAH ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 45E/1118;
1   : 1   : 49A/1178;
2   : 4   : 486/1158;
3   : 5   : 462/1122;
ROM F/W version……………………. : 109AE;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

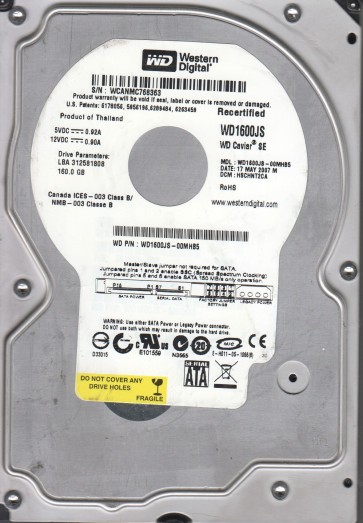

Specifications;
SN: WCANMC768363;
Model: WD1600JS-00MHB5;
Date: 17 MAY 2007;
DCM: HSCHNT2CA ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 48A/1162;
1   : 1   : 4B0/1200;
2   : 4   : 4DA/1242;
3   : 5   : 4A6/1190;
ROM F/W version……………………. : 408WE;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;

;
