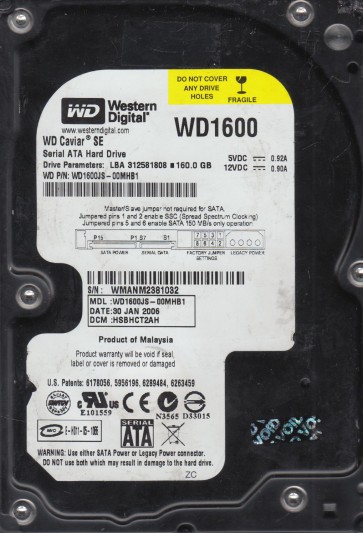

WD1600JS-00MHB1, DCM HSBHCT2AH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMANM2381032;
Model: WD1600JS-00MHB1;
Date: 30 JAN 2006;
DCM: HSBHCT2AH;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 482/1154;
1   : 1   : 482/1154;
2   : 4   : 45E/1118;
3   : 5   : 470/1136;
ROM F/W version……………………. : 1096E;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;

;

WD1600JS-00MHB1, DCM DSBHNTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM1789038;
Model: WD1600JS-00MHB1;
Date: 13 DEC 2005;
DCM: DSBHNTJAA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 47C/1148;
1 : 1 : 45C/1116;
2 : 4 : 47A/1146;
3 : 5 : 468/1128;
ROM F/W version……………………. : 1092E;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………… : 0x0004;

;

WD1600JS-00MHB1, DCM DSBHCTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM1907852;
Model: WD1600JS-00MHB1;
Date: 13 DEC 2005;
DCM: DSBHCTJAA;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AF;
PCB Revision: 2060-701335-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 454/1108;
1 : 1 : 446/1094;
2 : 4 : 45C/1116;
3 : 5 : 44C/1100;
ROM F/W version……………………. : 1092E;
Heads map…………………………. : 0,1,4,5;
Preamp vendor……………………… : 0x0001;
Preamp revision…………………….. : 0x0004;

;

WD1600JS-00MHB0, DCM HSCHNTJAHN, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCANM5967235;
Model: WD1600JS-00MHB0;
Date: 09 SEP 2006;
DCM: HSCHNTJAHN;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;
;

;

WD1600JS-00MHB0, DCM HSBANT2CA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMANM5531461;
Model: WD1600JS-00MHB0;
Date: 10 SEP 2006;
DCM: HSBANT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 480/1152;
1 : 1 : 4DE/1246;
2 : 4 : 46C/1132;
3 : 5 : 4C4/1220;
;
ROM F/W version……………………. : 02AEC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

WD1600JS-00MHB0, DCM DSCANT2AA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMANM5520302;
Model: WD1600JS-00MHB0;
Date: 10 SEP 2006;
DCM: DSCANT2AA;
Product of: Malaysia;
PCB Sticker: 2061-701335-B00 AJ;
PCB Revision: 2060-701335-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : A20/2592;
1 : 1 : 98C/2444;

;

ROM F/W version……………………. : 005500AS;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0003;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 4B2/1202;
1 : 1 : 442/1090;
2 : 4 : 4B8/1208;
3 : 5 : 44C/1100;

;

ROM F/W version……………………. : 02AEC;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;

;

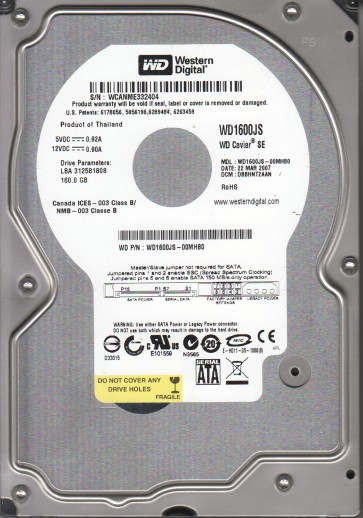

WD1600JS-00MHB0, DCM DBBHNT2AAN, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WCANME332404;
Model: WD1600JS-00MHB0;
Date: 22 MAR 2007;
DCM: DBBHNT2AAN ;
Product of: Thailand;
PCB Sticker: 2061-701335-B00 AQ;
PCB Revision: 2060-701355-005 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 512/1298;
1   : 1   : 4F4/1268;
2   : 4   : 516/1302;
3   : 5   : 50E/1294;
ROM F/W version……………………. : 101ME;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0004;
;
;
;
;
;
;

;

WD1600JD-75HBB0, DCM HSBHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD #2 Specs:;
SN: WCAL93146519;
Model: WD1600JD-75HBB0;
Date: 29 JAN 2005;
DCM: HSBHCTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001267-200 AJ;
PCB Revision: 2060-001267-001 REV A ;

Read ROM………………………….. : Ok;
ROM version……………………….. : 08.DWD;
ROM generation…………………….. : 08.DWD;
Link table version…………………. : 02.GA.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
;
;

HDD with Serial Number: WMAL92134736;
Model: WD1600JD-75HBB0;
Date: 01 OCT 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001267-200 AC;
PCB Revision: 2060-001267-001 REV A;

Read ROM………………………….. : Ok;
ROM version……………………….. : 08.DTD;
ROM generation…………………….. : 08.DTD;
Link table version…………………. : 02.GA.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
;
;

HDD with Serial Number: WMAL92120091;
Model: WD1600JD-75HBB0;
Date: 01 OCT 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001267-200 AC;
PCB Revision: 2060-001267-001 REV A;

HDD with Serial Number: WMAL92135195;
Model: WD1600JD-75HBB0;
Date: 01 OCT 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001267-200 AC;
PCB Revision: 2060-001267-001 REV A;

HDD with Serial Number: WMAL92180472;
Model: WD1600JD-75HBB0;
Date: 01 OCT 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001267-200 AC;
PCB Revision: 2060-001267-001 REV A;

Read ROM………………………….. : Ok;
ROM version……………………….. : 08.1TD;
ROM generation…………………….. : 08.1TD;
Link table version…………………. : 02.AA.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
;
;

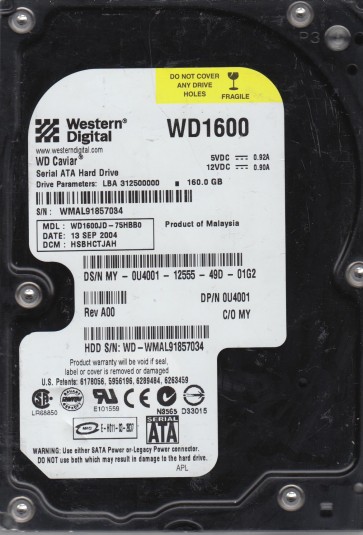

HDD with Serial Number: WMAL91857034;
Model: WD1600JD-75HBB0;
Date: 13 SEP 2004;
DCM: HSBHCTJAH;
Product of: Malaysia;
PCB Sticker: 2061-001267-200 AB;
PCB Revision: 2060-001267-001 REV A;
;

;

WD1600JD-75HBB0, DCM DSBHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAL92263278;
Model: WD1600JD-75HBB0;
Date: 17 NOV 2004;
DCM: DSBHCTJAH;
Product of: Thailand;
PCB Sticker: 2061-001267-200 AG;
PCB Revision: 2060-001267-001 REV A;

;

WD1600JD-55HBB0, DCM DSBHNTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WCAL94089392;
Model: WD1600JD-55HBB0;
Date: 23 MAR 2005;
DCM: DSBHNTJAH ;
Product of: Thailand;
PCB Sticker: 2061-001267-200 AJ;
PCB Revision: 2060-001267-001 REV A;

;

ROM version……………………….. : 21.8WJ;
Head map………………………….. : 0,1,4,5;

;

;
;

;
