WD1600JD-55HBB0, DCM DSBHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAL93808800;
Model: WD1600JD-55HBB0;
Date: 12 MAR 2005;
DCM: DSBHCTJAH;
Product of: Thailand;
PCB Sticker: 2061-001267-200 AJ;
PCB Revision: 2060-001267-001 REV A;

;

ROM version……………………….. : 08.E4D;
Head map………………………….. : 0,1,4,5;
;
;
;

;

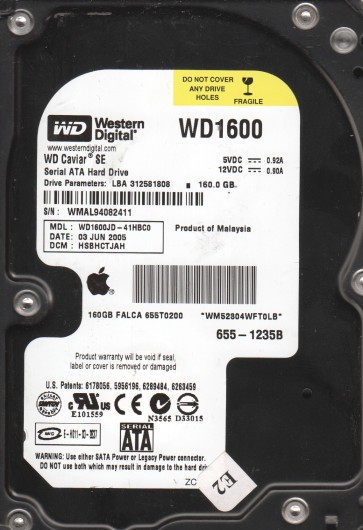

WD1600JD-41HBC0, DCM HSBHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
SN: WMAL94082411;
Model: WD1600JD-41HBC0;
Date: 03 JUN 2005;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-701267-200 AK;
PCB Revision: 2060-701267-001 REV A;

;

Read ROM………………………….. : Ok;
ROM version……………………….. : 21.D8J;
ROM generation…………………….. : 21.D8J;
Link table version…………………. : 02.GA.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
;
;

;

HDD #2 Specs:;
SN: WMAL94071005;
Model: WD1600JD-41HBC0;
Date: 01 JUN 2005;
DCM: HSBHCTJAH ;
Product of: Malaysia;
PCB Sticker: 2061-701267 200 AK;
PCB Revision: 2060-701267-001 REV A;

;

Read ROM………………………….. : Ok;
ROM version……………………….. : 21.D8J;
ROM generation…………………….. : 21.D8J;
Link table version…………………. : 02.GA.;
Heads configuration………………… : From map;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Disabled heads…………………….. : Yes;
Head map………………………….. : 0,1,4,5;
;
;

;

WD1600JD-40HBC0, DCM HSBACTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAL93798488;
Model: WD1600JD-40HBC0;
Date: 04 MAY 2005;
DCM: HSBACTJAH;
Product of: Malaysia;
PCB Sticker: 2061-701267-200 AK;
PCB Revision: 2060-701267-001 REV A;

;

ROM version……………………….. : 21.D7J;
Head map………………………….. : 0,1,4,5;
;
;
;
;

;

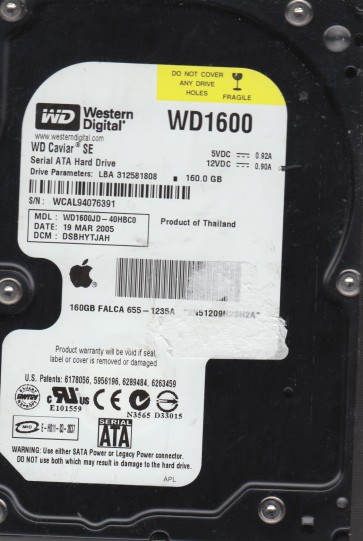

WD1600JD-40HBC0, DCM DSBHYTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAL94076391;
Model: WD1600JD-40HBC0;
Date: 19 MAR 2005;
DCM: DSBHYTJAH;
Product of: Thailand;
PCB Sticker: 2061-701267-200 AH;
PCB Revision: 2060-701267-001 REV A;

;

ROM version……………………….. : 21.8WJ;
Head map………………………….. : 0,1,4,5;
;
;
;

;

WD1600JD-40HBC0, DCM DSBACTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WCAL95884135;
Model: WD1600JD-40HBC0;
Date: 19 JUN 2007;
DCM: DSBACTJAA;
Product of: Thailand;
PCB Sticker: 2061-701267-200 AL;
PCB Revision: 2060-701267-001 REV A;

;

ROM version……………………….. : 21.1PJ;
Head map………………………….. : 0,1,4,5;
;
;
;

;

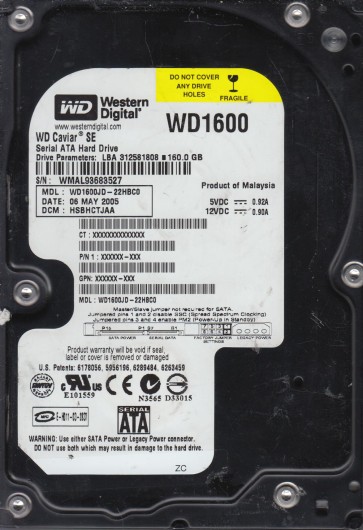

WD1600JD-22HBC0, DCM HSBHCTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD #1 Specs:;
Serial Number: WMAL93683527;
Model: WD1600JD-22HBC0;
Date: 06 MAY 2005;
DCM: HSBHCTJAA;
Product of: Malaysia;
PCB Sticker: 2061701267-200 AK;
PCB Revision: 2060-701267-001 REV A;

;

ROM version……………………….. : 21.D7J;
Head map………………………….. : 0,1,4,5;
;
;
;

;

WD1600JD-22HBC0, DCM HSBACTJAA, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WMAL93685919;
Model: WD1600JD-22HBC0;
Date: 05 MAY 2005;
DCM: HSBACTJAA;
Product of: Malaysia;
PCB Sticker: 2061-701267-200 AK;
PCB Revision: 2060-701267-001 REV A;

;

;
ROM version……………………….. : 21.97J ;
Head map………………………….. : 0,1,4,5;

;

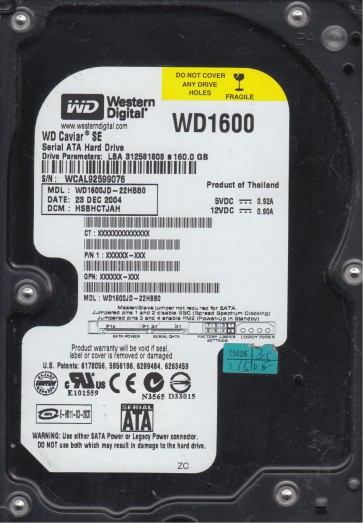

WD1600JD-22HBB0, DCM HSBHCTJAH, Western Digital 160GB SATA 3.5 Hard Drive

HDD with Serial Number: WCAL92599076;
Model: WD1600JD-22HBB0;
Date: 23 DEC 2004;
DCM: HSBHCTJAH;
Product of: Thailand;
PCB Sticker: 2061-001267-200 AJ;
PCB Revision: 2060-001267-001 REV A;
ROM version……………………….. : 08.DWD;
ROM generation…………………….. : 08.DWD;
Link table version…………………. : 02.GA.;
Heads number………………………. : 6;
The number of heads in use………….. : 4;
Head map………………………….. : 0,1,4,5;

;
