HDD with Serial Number: WXE708AZ1439;
Model: WD1600BJKT-75F4T0;
Date: 29 AUG 2008;
DCM: HACVJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 85D/2141;
1 : 1 : 7FC/2044;
ROM F/W version……………………. : 0007002C;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

HDD with Serial Number: WXM908SF7227;
Model: WD1600BJKT-75F4T0;
Date: 05 OCT 2008;
DCM: HACVJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 82A/2090;
1 : 1 : 847/2119;

;

ROM F/W: 0007003A;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WXM209LM9605;
Model: WD1600BJKT-75F4T0;
Date: 26 FEB 2009;
DCM: HACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AB;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 990/2448;
1 : 1 : 993/2451;

;

ROM F/W version:0007003E;
Preamp vendor:0x0001;
Preamp revision:0x0002;

;

HDD #1 Specs:;
SN: WXM209SM0640;
Model: WD1600BJKT-75F4T0;
Date: 26 FEB 2009;
DCM: HACTJBNB ;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 996/2454;
1   : 1   : 9E2/2530;

;

ROM F/W version……………………. : 0007003E;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

;

HDD #1 Specs:;
Serial Number: WXM309L40502;
Model: WD1600BJKT-00F4T0;
Date: 11 APR 2009;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AB;
PCB Revision: 2060-701574-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8C8/2248;
1   : 1   : 87A/2170;
ROM F/W version……………………. : 0007003S;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WXB1A3007183;
Model: WD1600BJKT-00F4T0;
Date: 13 APR 2010;
DCM: HBNTJBNB;
Product of: Thailand;
PCB Sticker: 2061-771574-A01 01P;
PCB Revision: 2060-771574-001 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 8BA/2234;
1   : 1   : 8DC/2268;
2   : 2   : 8FF/2303;
3   : 3   : 8D7/2263;
ROM F/W version……………………. : 000800BH;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;
;
;
;
;

;

Specifications;

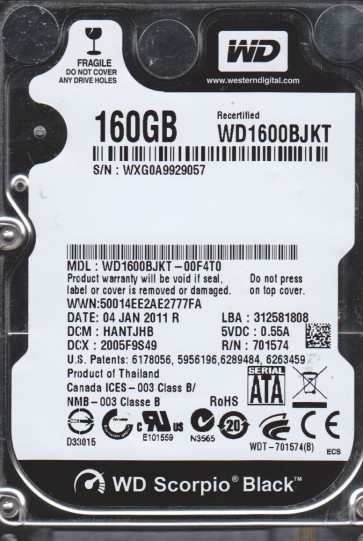

SN: WXG0A9929057;
Model: WD1600BJKT-00F4T0;
Date: 04 JAN 2011 R;
DCM: HANTJHB ;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AC;
PCB Revision: 2060-701574-001 REV A;

;

;

HDD with Serial Number: WXM309RK9490;
Model: WD1600BJKT-00F4T0;
Date: 15 APR 2009;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-A00 AB;
PCB Revision: 2060-701574-001 REV A;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 98D/2445;
1   : 1   : 91A/2330;
;
ROM F/W Version: 000700FS;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0002

;

HDD with Serial Number: WXEX08TX6607;
Model: WD1600BEVT-88ZCT0;
Date: 06 NOV 2008;
DCM: HACT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 913/2323;
1 : 1 : 8E6/2278;
ROM F/W version……………………. : 00080018;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

Specifications;
SN: WXEY08U81592;
Model: WD1600BEVT-88ZCT0;
Date: 14 NOV 2008;
DCM: HACT2BBB ;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 930/2352;
1   : 1   : 979/2425;

;

ROM F/W version……………………. : 0008001D;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXC908646015;
Model: WD1600BEVT-88ZCT0;
Date: 15 NOV 2008;
DCM: FBCTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AF;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 957/2391;
1 : 1 : 8CC/2252;
;
ROM F/W version:0008001D;
Heads map: 0,1;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;
