Specifications;
SN: WXC409J97166;
Model: WD1600BEVS-08VAT2;
Date: 04 MAY 2009;
DCM: FHNT2ABB;
R/N 701499;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8EF/2287;
1 : 1 : 978/2424;
ROM F/W version……………………. : 0008002C;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;
Specifications;

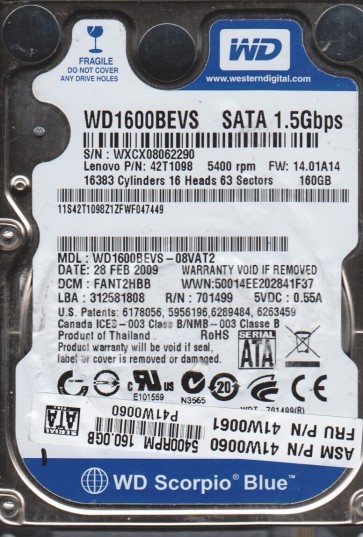

SN: WXCX08062290;
Model: WD1600BEVS-08VAT2;
Date: 28 FEB 2009;
DCM: FANT2HBB;
R/N 701499;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 99B/2459;
1 : 1 : 92D/2349;
ROM F/W version……………………. : 0008001T;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
Specifications;
SN: WXF0EA9ZD055;
Model: WD1600BEVS-08VAT2;
Date: 08 DEC 2009;
DCM: DHNT2HNB ;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8F1/2289;
1 : 1 : 93A/2362;
;
ROM F/W version……………………. : 0008003M;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
HDD with Serial Number: WXL0E8920235;
Model: WD1600BEVS-08VAT2;
Date: 21 SEP 2009;
DCM: DANT2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV A;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 933/2355;
1 : 1 : 920/2336;
ROM F/W version……………………. : 000800FA;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
;
HDD #1 Specs:;
Serial Number: WXEY08T82792;
Model: WD1600BEVS-08VAT1;
Date: 19 NOV 2008;
DCM: HHCTJANB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 03P;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 932/2354;
1 : 1 : 905/2309;
ROM F/W version……………………. : 0008001F;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
HDD #1 Specs:;
SN: WXEY08VY4386;
Model: WD1600BEVS-08VAT1;
Date: 12 DEC 2008;
DCM: HHCT2BBB ;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AB;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 96D/2413;
1 : 1 : 8CC/2252;
;
ROM F/W version……………………. : 0008001S;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
HDD #1 Specs:;

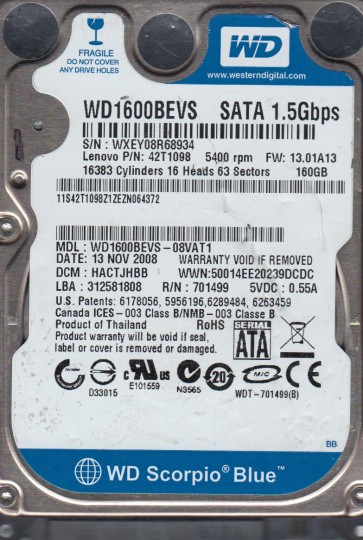

Serial Number: WXEY08R68934;
Model: WD1600BEVS-08VAT1;
Date: 13 NOV 2008;
DCM: HACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 03P;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 94E/2382;
1 : 1 : 90A/2314;
2 : 2 : B00/2816;
3 : 3 : B00/2816;
;
ROM F/W version……………………. : 00040032;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0001;
;
HDD with Serial Number: WXC908376720;
Model: WD1600BEVS-08VAT1;
Date: 29 NOV 2008;
DCM: FHCT2HBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AD;
PCB Revision: 2060-701499-005 REV P1;
;
;
HDD with Serial Number: WXC908604517;
Model: WD1600BEVS-08VAT1;
Date: 29 NOV 2008;
DCM: FBCT2BNB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AB;
PCB Revision: 2060-701499-005 REV P1;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9EB/2539;
1 : 1 : 93C/2364;
ROM F/W version……………………. : 0008001S;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;
;
HDD with Serial Number: WXE608KU1008;
Model: WD1600BEVS-08RST3;
Date: 22 AUG 2008;
DCM: HAYTJABB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AK;
PCB Revision: 2060-701450-001 REV A;
;
;
Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8F2/2290;
1 : 1 : 942/2370;
2 : 2 : 8BA/2234;
3 : 3 : 942/2370;
;
;
ROM F/W version……………………. : 0011008Q;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;
;
