Specifications;
SN: WXC608A67647;
Model: WD1600BEVS-08RST3;
Date: 25 JUL 2008;
DCM: FHYTJHNB ;
Product of: THAILAND;
PCB Sticker: 2061-701450-Z00 AK;
PCB Revision: 2060-701450-001 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 934/2356;
1   : 1   : 918/2328;
2   : 2   : 9D6/2518;
3   : 3   : 8F6/2294;
;

;

ROM F/W version……………………. : 0011008Q;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

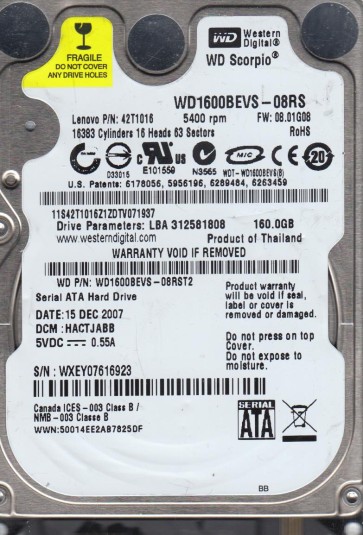

HDD with Serial Number: WXEY07616923;
Model: WD1600BEVS-08RST2;
Date: 15 DEC 2007;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AG;
PCB Revision: 2060-701450-011 REV A;
;

;

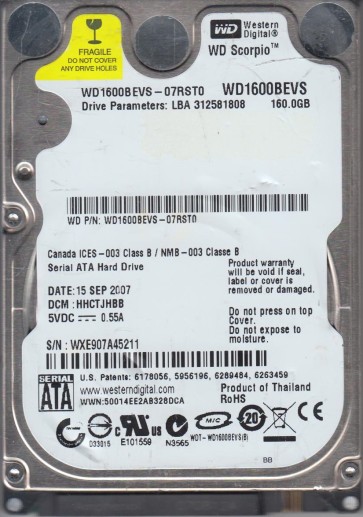

HDD with Serial Number: WXE907A45211;
Model: WD1600BEVS-07RST0;
Date: 15 SEP 2007;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AF;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A15/2581;
1   : 1   : 97D/2429;
2   : 2   : 9F8/2552;
3   : 3   : 934/2356;
ROM F/W version……………………. : 000900B9;
Heads map…………………………. : 0,1,2,3;
Preamp vendor……………………. : 0x0004;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXC507427247;
Model: WD1600BEVS-07RST0;
Date: 16 JUN 2007;
DCM: FANTJANB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AE;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 926/2342;
1   : 1   : 914/2324;
2   : 2   : 94B/2379;
3   : 3   : 9B2/2482

;

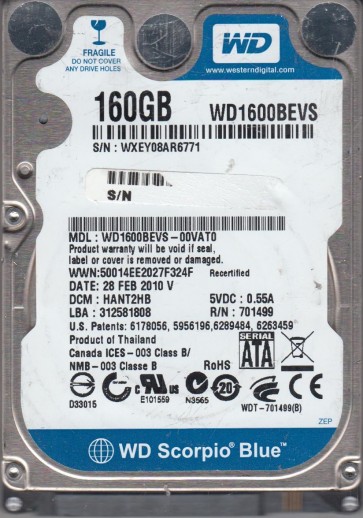

HDD with Serial Number: WXEY08AR6771;
Model: WD1600BEVS-00VAT0;
Date: 28 FEB 2010;
DCM: HANT2HB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AB;
PCB Revision: 2060-701499-005 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 998/2456;
1 : 1 : 8E2/2274;
ROM F/W version……………………. : 0008003P;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0002;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXEZ08RLD789;
Model: WD1600BEVS-00VAT0;
Date: 14 FEB 2009;
DCM: HACT2BBB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AH;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 99A/2458;
1   : 1   : 8D2/2258;
ROM F/W version……………………. : 0008001S;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0X0001;

;

HDD with Serial Number: WX20E59L7337;
Model: WD1600BEVS-00VAT0;
Date: 13 AUG 2009;
DCM: FBNT2BBB;
Product of: Thailand;
PCB Sticker: 2061-701499-E00 AC;
PCB Revision: 2060-701499-005 REV P1;
;

ROM F/W  000800F1;
Heads map 0,1;
Preamp Vendor: x002;
Preamp revision: x001;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 95E/2398;
1   : 1   : 9C0/2496

;

HDD with Serial Number: WXCY08508069;
Model: WD1600BEVS-00VAT0;
Date: 08 MAR 2010;
DCM: FACT2HB;
Product of: Thailand;
PCB Sticker: 2061-701499-500 AG;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 958/2392;
1 : 1 : 948/2376;
ROM F/W version……………………. : 0008002A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WXEY07I26792;
Model: WD1600BEVS-00UST0;
Date: 12 NOV 2007;
DCM: HAYTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AB;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B17/2839;
1   : 2   : B1B/2843;
2   : 3   : AF8/2808;
;
;
;

;

HDD with Serial Number: WXE807046811;
Model: WD1600BEVS-00UST0;
Date: 07 SEP 2007;
DCM: HACVJHBB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AA;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 852/2130;
1   : 2   : 82E/2094;
2   : 3   : 87B/2171;
ROM F/W version……………………. : 00040015;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;
