HDD with Serial Number: WXM908SZ4132;
Model: WD1600BEKT-60F3T0;
Date: 30 NOV 2008;
DCM: HACTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 96E/2414;
1 : 1 : 930/2352;
ROM F/W version……………………. : 0007003A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WXM908SZ3279;
Model: WD1600BEKT-60F3T0;
Date: 30 NOV 2008;
DCM: HACTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9A7/2471;
1 : 1 : 9A2/2466;
ROM F/W version……………………. : 0007003A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WXMY08L22177;
Model: WD1600BEKT-60F3T0;
Date: 25 NOV 2008;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9B4/2484;
1 : 1 : 991/2449;
ROM F/W version……………………. : 0007003A;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0002;

HDD with Serial Number: WXMY08L48581;
Model: WD1600BEKT-60F3T0;
Date: 17 NOV 2008;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AA;
PCB Revision: 2060-701574-001 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 93B/2363;
1   : 1   : 96D/2413;
ROM F/W version……………………. : 0007003A;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0002;
;
;
;

;

HDD with Serial Number: WX11A3092808;
Model: WD1600BEKT-60A25T1;
Date: 19 APR 2010;
DCM: HHCVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9D8/2520;
1 : 1 : 95F/2399;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

HDD with Serial Number: WXA1A70U7228;
Model: WD1600BEKT-60A25T1;
Date: 30 SEP 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A9B/2715;
1   : 1   : AE0/2784;
ROM F/W version……………………. : 0014002D;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

HDD #1 Specs:;
Serial Number: WX81A20K2987;
Model: WD1600BEKT-60A25T1;
Date: 16 APR 2010;
DCM: HHCTJABB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A0D/2573;
1   : 1   : A55/2645;

;

ROM F/W version……………………. : 001400DB;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

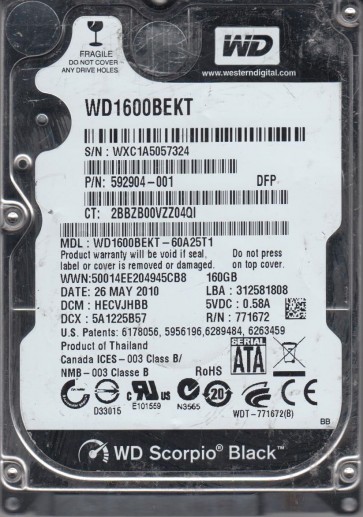

HDD with Serial Number: WXC1A5057324;
Model: WD1600BEKT-60A25T1;
Date: 26 MAY 2010;
DCM: HECVJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 9A0/2464;
1 : 1 : 920/2336;
ROM F/W version……………………. : 001400DB;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXK1A8056479;
Model: WD1600BEKT-60A25T1;
Date: 12 SEP 2010;
DCM: HECTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD1;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : ACF/2767;
1   : 1   : B53/2899;
ROM F/W version……………………. : 0014003G;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;
;
;
;

HDD with Serial Number: WXK1A9034896;
Model: WD1600BEKT-60A25T1;
Date: 20 OCT 2010;
DCM: HECTJHNB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 04PD3;
PCB Revision: 2060-771672-004 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 999/2457;
1   : 1   : A72/2674;
ROM F/W version……………………. : 0014003N;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD #1 Specs:;
Serial Number: WX11A30E3566;
Model: WD1600BEKT-60A25T1;
Date: 28 APR 2010;
DCM: HECTJHBB;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD1;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A97/2711;
1   : 1   : A32/2610;
ROM F/W version……………………. : 001400DB;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;
;
;

;

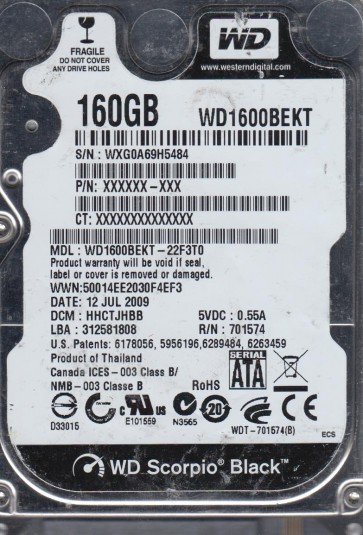

HDD with Serial Number: WXG0A69H5484;
Model: WD1600BEKT-22F3T0;
Date: 12 JUL 2009;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701574-D00 AB;
PCB Revision: 2060-701574-001 REV A;
;

;
