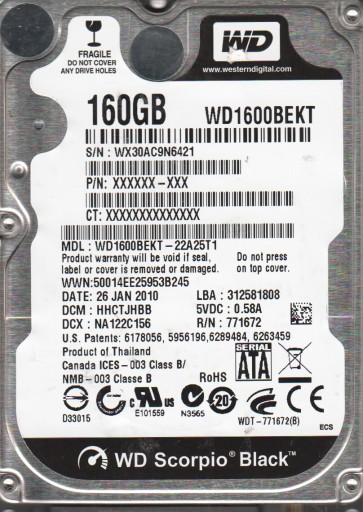

HDD #1 Specs:;
SN: WX30AC9N6421;
Model: WD1600BEKT-22A25T1;
Date: 26 JAN 2010;
DCM: HHCTJHBB ;
Product of: Thailand;
PCB Sticker: 2061-771672-E04 03PD2;
PCB Revision: 2060-771672-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A69/2665;
1   : 1   : A10/2576;
;

;

ROM F/W version……………………. : 001400CD;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

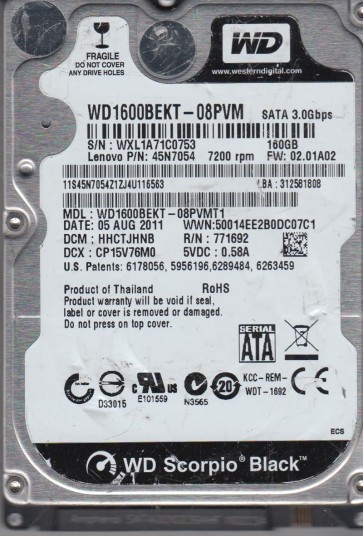

HDD with Serial Number: WXL1A71C0753;
Model: WD1600BEKT-08PVMT1;
Date: 05 AUG 2011;
DCM: HHCTJHNB;
Product of: Thailand;
PCB Sticker: 771692-506 01PD1;
PCB Revision: 2060-771692-006 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : B7E/2942;
1 : 1 : C1D/3101;
ROM F/W version……………………. : 00040011;
Heads map…………………………. : 0,1;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;

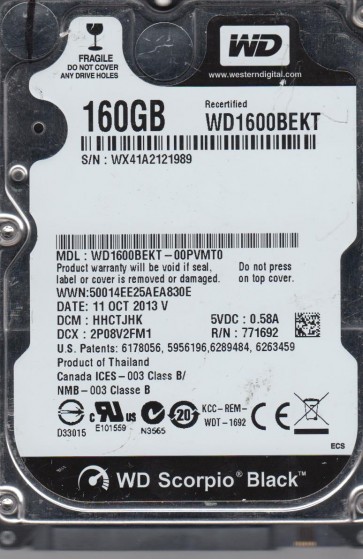

HDD with Serial Number: WX41A2121989;
Model: WD1600BEKT-00PVMT0;
Date: 11 OCT 2013;
DCM: HHCTJHK;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : B00/2816;
ROM F/W version……………………. : 00040027;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;

;

HDD with Serial Number: WX61A9120565;
Model: WD1600BEKT-00PVMT0;
Date: 21 NOV 2013;
DCM: HHCTJHK;
Product of: Malaysia;
PCB Sticker: 771692-506 02PD1;
PCB Revision: 2060-771692-006 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : AE8/2792;
ROM F/W version……………………. : 0004002D;
Heads map…………………………. : 1;
Preamp vendor………………….. : 0x0001;
Preamp revision………………… : 0x0000;

;

HDD #1 Specs:;
SN: WXF1A80M9434;
Model: WD1600BEKT-00PVMT0;
Date: 06 DEC 2010;
DCM: HHCTJHBB ;
Product of: Thailand;
PCB Sticker: 771692-105 04P;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A69/2665;
1   : 1   : AB4/2740;
ROM F/W version……………………. : 00030021;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;
;
;

;

HDD #2 Specs:;
SN: WX11A51R9537;
Model: WD1600BEKT-00PVMT0;
Date: 22 JUN 2011;
DCM: HHCTJHBB ;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : B30/2864;
ROM F/W version……………………. : 0004000A;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

HDD with Serial Number: WX11AC004917;
Model: WD1600BEKT-00PVMT0;
Date: 14 DEC 2010;
DCM: HHCTJHBB;
Product of: Thailand;
PCB Sticker: 771692-105 AC;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B52/2898

;

HDD with Serial Number: WXB1A41X2784;
Model: WD1600BEKT-00PVMT0;
Date: 10 AUG 2013;
DCM: HHCTJHB;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AEA/2794;
;
ROM F/W version……………………. : 00040027;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

HDD with Serial Number: WX51A91K8970;
Model: WD1600BEKT-00PVMT0;
Date: 07 JAN 2012;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 771692-806 02PD2;
PCB Revision: 2060-771692-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : B62/2914;
ROM F/W version……………………. : 00040022;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WX21CC1F2512;
Model: WD1600BEKT-00PVMT0;
Date: 19 JAN 2012;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 771692-806 02PD2;
PCB Revision: 2060-771692-006 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : B08/2824;
ROM F/W version……………………. : 00040022;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WXB1A72J8500;
Model: WD1600BEKT-00PVMT0;
Date: 22 OCT 2014;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 771692-806 AE;
PCB Revision: 2060-771692-006 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : B7A/2938;
ROM F/W version……………………. : 0004002D;
Heads map…………………………. : 1;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

HDD with Serial Number: WX31A71X3603;
Model: WD1600BEKT-00PVMT0;
Date: 21 NOV 2013;
DCM: HHCTJHB;
Product of: Malaysia;
PCB Sticker: 771692-506 02P;
PCB Revision: 2060-771692-006 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B19/2841;
ROM F/W version……………………. : 00040027;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXB1A41X7104;
Model: WD1600BEKT-00PVMT0;
Date: 05 JUL 2011;
DCM: HHCTJANB;
Product of: Thailand;
PCB Sticker: 771692-505 03P;
PCB Revision: 2060-771692-005 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : ACB/2763;
ROM F/W version……………………. : 0004000C;
Heads map…………………………. : 0;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0000;

;

HDD with Serial Number: WXQ1A71W4201;
Model: WD1600BEKT-00PVMT0;
Date: 10 JUL 2014;
DCM: HHCTJAN;
Product of: Malaysia;
PCB Sticker: 771692-506 02PD1;
PCB Revision: 2060-771692-006 REV P1;
;

;

HDD #1 Specs:;
SN: WXD1C22M8747;
Model: WD1600BEKT-00PVMT0;
Date: 15 MAY 2012;
DCM: HHCTJAB ;
Product of: Malaysia;
PCB Sticker: 771692-806 AD;
PCB Revision: 2060-771692-006 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A90/2704;
1   : 1   : B45/2885;

ROM F/W version……………………. : 00040022;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

HDD #2 Specs:;

Serial Number: WX11CC1P8605;
Model: WD1600BEKT-00PVMT0;
Date: 28 MAR 2012;
DCM: HHCTJAB;
Product of: Malaysia;
PCB Sticker: 771692-806 02PD2;
PCB Revision: 2060-771692-006 REV A;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B60/2912;
1   : 1   : B91/2961;

ROM F/W version……………………. : 00040022;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0000;

HDD with Serial Number: WX41A9162611;
Model: WD1600BEKT-00PVMT0;
Date: 23 DEC 2011;
DCM: HHCTJAB;
Product of: Malaysia;
PCB Sticker: 771692-806 02PD2;
PCB Revision: 2060-771692-006 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AFA/2810;

ROM F/W version:00040022;
Preamp vendor:0x0001;
Preamp revision:0x0000;

;

HDD with Serial Number: WX11AA2P3598;
Model: WD1600BEKT-00PVMT0;
Date: 09 DEC 2012;
DCM: HEOTJHB;
Product of: Malaysia;
PCB Sticker: 771692-806 AE;
PCB Revision: 2060-771692-006 REV A;
;

ROM F/W version 00040027;
Heads map:   0,1;
Preamp vendor: x001;
Preamp revision: x0000;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : A7D/2685;
1   : 1   : AE6/2790

;

HDD #1 Specs:;
SN: WXA1AC0L1341;
Model: WD1600BEKT-00PVMT0;
Date: 07 JAN 2011;
DCM: HECTJHB ;
Product of: Malaysia;
PCB Sticker: 771682-105 AC;
PCB Revision: 2060-771692-005 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : B3A/2874;
1   : 1   : B27/2855;

;

ROM F/W version……………………. : 00030021;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0000;

;
