HDD #1 Specs:;
SN: WX81EB2WE578;
Model: WD15NMVW-11W68S0;
Date: 11 MAR 2013;
DCM: EHMTJBKB ;
Product of: Thailand;
PCB Sticker: 771801-002 AG;
PCB Revision: 2060-771801-002 REV A;

;
;
;

;

HDD with  Serial Number: WXK1E72HNVR4;
Model: WD15NMVW-11W68S0;
Date: 28 SEP 2012;
DCM: EHCVJHBB;
Product of: Thailand;
PCB Sticker: 771801-002 AE;
PCB Revision: 2060-771801-002 REV A;

;

;

HDD #1 Specs:;
Serial Number: WX31E92AJU77;
Model: WD15NMVW-11W68S0;
Date: 02 JAN 2013;
DCM: EHCTJHKB;
Product of: Thailand;
PCB Sticker: 771801-002 AE;
PCB Revision: 2060-771801-002 REV A;

Micro Jogs
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;

;

;

HDD with Serial Number: WX21AC2L8345;
Model: WD15NMVW-11W68S0;
Date: 02 MAR 2013;
DCM: EBOTJHKB;
Product of: Thailand;
PCB Sticker: 771801-002 AG;
PCB Revision: 2060-771801-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 1037/4151;
1   : 2   : FE2/4066;
2   : 3   : 107B/4219;
3   : 4   : 1077/4215;
4   : 5   : 10E9/4329;
5   : 6   : FD9/4057;
6   : 7   : 10DA/4314;
ROM F/W version……………………. : 00040024;
Heads map…………………………. : 0,2,3,4,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXB1EA1JXXS8;
Model: WD15NMVW-11W68S0;
Date: 24 APR 2012;
DCM: EBCVJBBB;
Product of: Thailand;
PCB Sticker: 771801-002 AB;
PCB Revision: 2060-771801-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 101F/4127;
1   : 2   : F0A/3850;
2   : 3   : 1006/4102;
3   : 4   : F93/3987;
4   : 5   : 1025/4133;
5   : 6   : F50/3920;
6   : 7   : 1062/4194;
ROM F/W version……………………. : 00040018;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;

;

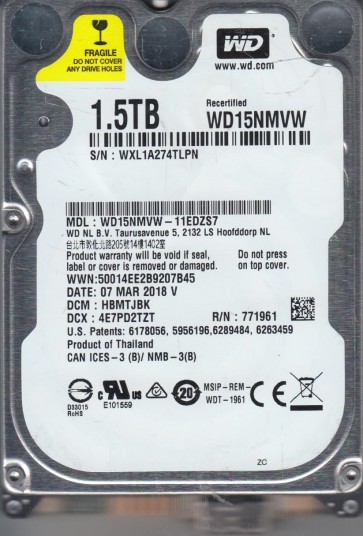

HDD with Serial Number: WXL1A274TLPN;
Model: WD15NMVW-11EDZS7;
Date: 07 MAR 2018;
DCM: HBMTJBK;
Product of: Thailand;
PCB Sticker: 771961-R01 AE;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
ROM F/W version……………………. : 0021004A;
Heads map…………………………. : 0,1,2,3,4,5,6;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

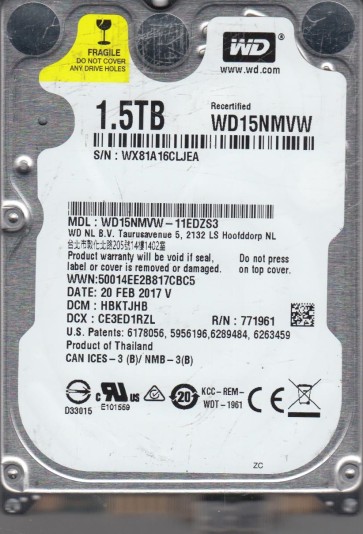

HDD with Serial Number: WX81A16CLJEA;
Model: WD15NMVW-11EDZS3;
Date: 20 FEB 2017;
DCM: HBKTJHB;
Product of: Thailand;
PCB Sticker: 771961-601 AE;
PCB Revision: 2060-771961-001 REV B;
;

;

HDD with Serial Number: WX51AA5L3291;
Model: WD15NMVW-11EDZS2;
Date: 07 NOV 2015;
DCM: HHKTJHKB;
Product of: Thailand;
PCB Sticker: 771961-J01 AC;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 00/0;
1   : 2   : 00/0;
2   : 3   : 00/0;
3   : 5   : 00/0;
4   : 6   : 00/0;
5   : 7   : 00/0;
ROM F/W version……………………. : 0021003A;
Heads map…………………………. : 1,2,3,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WX41AA5KAEAF;
Model: WD15NMVW-11EDZS2;
Date: 08 NOV 2015;
DCM: HHKTJBKB;
Product of: Thailand;
PCB Sticker: 771961-J01 AC;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 5   : 00/0;
5   : 6   : 00/0;
6   : 7   : 00/0;
ROM F/W version……………………. : 0021003A;
Heads map…………………………. : 0,1,2,3,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WX11AA54CN8R;
Model: WD15NMVW-11EDZS2;
Date: 07 NOV 2015;
DCM: HHKTJBBB;
Product of: Thailand;
PCB Sticker: 771961-J01 AC;
PCB Revision: 2060-771961-001 REV B;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : 00/0;
1   : 1   : 00/0;
2   : 2   : 00/0;
3   : 3   : 00/0;
4   : 4   : 00/0;
5   : 5   : 00/0;
6   : 6   : 00/0;
ROM F/W version……………………. : 0021003A;
Heads map…………………………. : 0,1,2,3,4,5,6;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;
