HDD with Serial Number: WMAZA6519233;
Model: WD15EARX-00PASB0;
Date: 12 DEC 2011;
DCM: HANCNV2CAB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AC;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : D47/3399;
1 : 1 : CC5/3269;
2 : 2 : D24/3364;
3 : 5 : CB3/3251;
4 : 6 : D46/3398;
5 : 7 : C60/3168;
;
ROM F/W version: 00270034;
Heads map: 0,1,2,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0005;

;

HDD #1 Specs:;
Serial Number: WCAZAE820028;
Model: WD15EARX-00PASB0;
Date: 14 JUL 2012;
DCM: DARNHT2MAB;
Product of: Thailand;
PCB Sticker: 2061-771698-T04 AA;
PCB Revision: 2060-771698-004 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : C7E/3198;
1   : 2   : C8D/3213;
2   : 5   : C85/3205;
3   : 6   : C7E/3198;
4   : 7   : C9B/3227;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0005;
ROM F/W version……………………. : 0027003R;
;
;
;
;
;

;

HDD with Serial Number: WCAZA6459115;
Model: WD15EARS-60MVWB0;
Date: 22 APR 2011;
DCM: HHRNHTJMAB;
Product of: Thailand;
PCB Sticker: 771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BDF/3039;
1 : 1 : BF4/3060;
2 : 5 : C04/3076;
3 : 6 : BFA/3066;
4 : 7 : BF1/3057;
ROM F/W version……………………. : 00220000;
Heads map…………………………. : 0,1,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAZA6833644;
Model: WD15EARS-60MVWB0;
Date: 30 APR 2011;
DCM: HHRNHTJCBB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C50/3152;
1 : 1 : C9C/3228;
2 : 2 : C20/3104;
3 : 5 : CB0/3248;
4 : 6 : C29/3113;
5 : 7 : CB5/3253;
;
ROM F/W version: 00220000;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAZA3151729;
Model: WD15EARS-60MVWB0;
Date: 20 DEC 2010;
DCM: HHNNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 08P;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C71/3185;
1 : 1 : C38/3128;
2 : 2 : CC5/3269;
3 : 5 : C5E/3166;
4 : 6 : CE5/3301;
5 : 7 : C85/3205;
ROM F/W version……………………. : 0024000C;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor…………………….. : 0x0001;
Preamp revision…………………… : 0x0001;

;

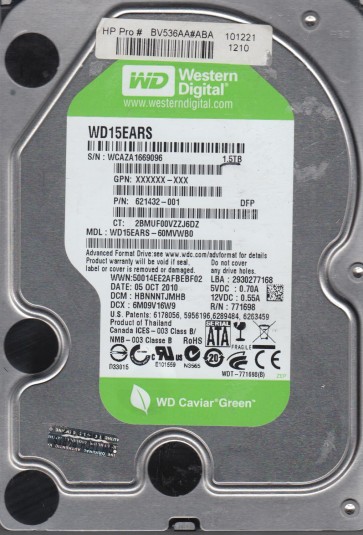

HDD with Serial Number: WCAZA1669096;
Model: WD15EARS-60MVWB0;
Date: 05 OCT 2010;
DCM: HBNNNTJMHB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 05PD10;
PCB Revision: 2060-771698-002 REV P2;
;

;

HDD with Serial Number: WCAZAD038978;
Model: WD15EARS-60MVWB0;
Date: 08 OCT 2011;
DCM: HARNHTJMHB;
Product of: Thailand;
PCB Sticker: 2061-771698-904 AB;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C47/3143;
1 : 1 : CB7/3255;
2 : 2 : C6A/3178;
3 : 5 : CA2/3234;
4 : 6 : C2C/3116;
5 : 7 : CC3/3267;

;

ROM F/W: 002000A6;
Heads map: 0,1,2,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAZA6480653;
Model: WD15EARS-60MVWB0;
Date: 14 APR 2011;
DCM: HARNHTJMBB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BCB/3019;
1 : 1 : CE5/3301;
2 : 2 : C1E/3102;
3 : 5 : CD3/3283;
4 : 6 : BD9/3033;
5 : 7 : CBA/3258;
ROM F/W version……………………. : 00220000;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAZA3867589;
Model: WD15EARS-60MVWB0;
Date: 22 JAN 2011;
DCM: HANNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C43/3139;
1 : 1 : CB4/3252;
2 : 2 : C2E/3118;
3 : 5 : C35/3125;
4 : 6 : C33/3123;
5 : 7 : C87/3207;
ROM F/W version……………………. : 0024000C;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WMAZA6790101;
Model: WD15EARS-60MVWB0;
Date: 26 NOV 2011;
DCM: HANNHTJCA;
Product of: Malaysia;
PCB Sticker: 2061-771698-904 AB;
PCB Revision: 2060-771698-004 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C2C/3116;
1 : 1 : C38/3128;
2 : 2 : C10/3088;
3 : 5 : C0A/3082;
4 : 6 : C06/3078;
5 : 7 : C0D/3085;

;

ROM F/W version: 002000A6;
Heads map: 0,1,2,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;
