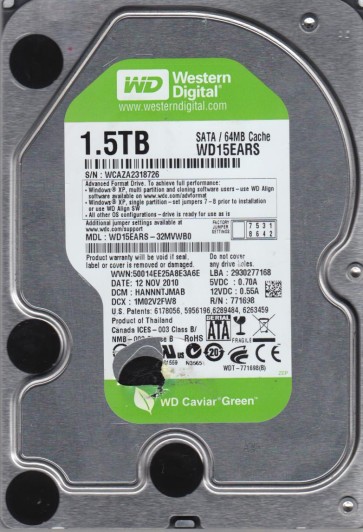

HDD with Serial Number: WCAZA2318726;
Model: WD15EARS-32MVWB0;
Date: 12 NOV 2010;
DCM: HANNTJMAB;
Product of: Thailand;
PCB Sticker: 2061771698-802 07P;
PCB Revision: 2060-771698-002 REV P2;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C70/3184;
1 : 1 : D1C/3356;
2 : 2 : CC5/3269;
3 : 5 : D1D/3357;
4 : 6 : CD4/3284;
5 : 7 : D00/3328;
;
ROM F/W version:51.0AB51;
Heads map: 0,1,2,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD #1 Specs:;
Serial Number: WCAZA1760442;
Model: WD15EARS-22MVWB0;
Date: 12 OCT 2010;
DCM: HHNNNTJMBB;
Product of: Thailand;
PCB Sticker: 2061-771698-102 AA;
PCB Revision: 2060-771698-002 REV P2;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BF5/3061;
1   : 1   : CA3/3235;
2   : 2   : BD3/3027;
3   : 5   : C68/3176;
4   : 6   : BDF/3039;
5   : 7   : C3C/3132;
Preamp Vendor……………………… : 0001;
Preamp Rev………………………… : 0001;
ROM F/W version……………………. : 0050007J;
;
;
;
;
;

;

HDD with Serial Number: WCAZA8457698;
Model: WD15EARS-22MVWB0;
Date: 05 JUL 2011;
DCM: HBRNNTJMBB;
Product of: Thailand;
PCB Sticker: 771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : C46/3142;
1   : 2   : C4F/3151;
2   : 5   : C7F/3199;
3   : 6   : C48/3144;
4   : 7   : C22/3106;
ROM F/W version……………………. : 00200074;
Heads map…………………………. : 1,2,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision…………………. : 0x0001;
;
;
;

;

HDD #1 Specs:;

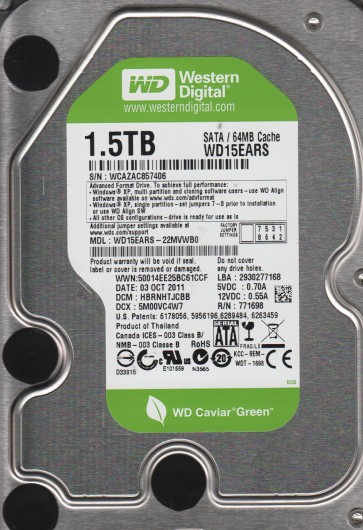

SN: WCAZAC857406;
Model: WD15EARS-22MVWB0;
Date: 03 OCT 2011;
DCM: HBRNHTJCBB ;
Product of: Thailand;
PCB Sticker: 771698-90 AB;
PCB Revision: 2060-771698-004;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BFA/3066;
1   : 1   : C80/3200;
2   : 2   : C0C/3084;
3   : 5   : C8F/3215;
4   : 6   : C5D/3165;
5   : 7   : C88/3208;
ROM F/W version……………………. : 002000A6;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;
;
;
;
;
;
;

;

HDD with Serial Number: WCAZA8789002;
Model: WD15EARS-22MVWB0;
Date: 17 JUL 2011;
DCM: HBNNHTJMHB;
Product of: Thailand;
PCB Sticker: 771698-802 AA;
PCB Revision: 2060-771698-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CB9/3257;
1 : 1 : D3A/3386;
2 : 2 : CA5/3237;
3 : 5 : D27/3367;
4 : 6 : CB7/3255;
5 : 7 : D0A/3338;

;

ROM F/W version……………………. : 00200074;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAZA8313406;
Model: WD15EARS-22MVWB0;
Date: 28 JUN 2011;
DCM: HARNNTJMHB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : C68/3176;
1 : 2 : C79/3193;
2 : 5 : C52/3154;
3 : 6 : C7D/3197;
4 : 7 : C3D/3133;
ROM F/W version……………………. : 00200060;
Heads map…………………………. : 1,2,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WCAZA8190728;
Model: WD15EARS-22MVWB0;
Date: 23 JUN 2011;
DCM: HARNNTJMAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C0E/3086;
1   : 2   : C1A/3098;
2   : 5   : C9E/3230;
3   : 6   : C02/3074;
4   : 7   : CD9/3289;
ROM F/W version……………………. : 00200060;
Heads map…………………………. : 0,2,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;
;

;

HDD with Serial Number: WCAZA3665326;
Model: WD15EARS-22MVWB0;
Date: 14 JAN 2011;
DCM: HARNHTJMBB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : CAC/3244;
1 : 1 : D00/3328;
2 : 2 : C9D/3229;
3 : 5 : D19/3353;
4 : 6 : CC9/3273;
5 : 7 : D18/3352;

;

ROM F/W version: 00220000;
Preamp vendor: 0x0001;
Preamp revision: 0x0001;

;

HDD with Serial Number: WCAZA6365971;
Model: WD15EARS-22MVWB0;
Date: 16 APR 2011;
DCM: HARNHTJCHB;
Product of: Thailand;
PCB Sticker: 771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C2B/3115;
1   : 1   : CC9/3273;
2   : 5   : CC7/3271;
3   : 6   : C61/3169;
4   : 7   : CC5/3269;
ROM F/W version……………………. : 00220000;
Heads map…………………………. : 0,1,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;
;
;

;

HDD with Serial Number: WCAZA5068524;
Model: WD15EARS-22MVWB0;
Date: 06 MAR 2011;
DCM: HANNHTJMAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 AA;
PCB Revision: 2060-771698-002 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : C9A/3226;
1 : 1 : D1F/3359;
2 : 5 : D1E/3358;
3 : 6 : C0C/3084;
4 : 7 : D41/3393;
ROM F/W version……………………. : 00220000;
Heads map…………………………. : 0,1,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;
