HDD with Serial Number: WMAZA3142642;
Model: WD15EARS-00MVWB0;
Date: 14 DEC 2010;
DCM: HANNNTJMB;
Product of: Malaysia;
PCB Sticker: 2061-771698-802 07P;
PCB Revision: 2060-771698-002 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : BC5/3013;
1 : 1 : C08/3080;
2 : 5 : BAA/2986;
3 : 6 : C21/3105;
4 : 7 : C39/3129;
ROM F/W version……………………. : 0020000P;
Heads map…………………………. : 0,1,5,6,7;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WCAZA2391500;
Model: WD15EARS-00MVWB0;
Date: 17 NOV 2010;
DCM: HANNNTJMAB;
Product of: Thailand;
PCB Sticker: 2061-771698-802 07P;
PCB Revision: 2060-771698-002 REV P2;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : C52/3154;
1   : 1   : CAD/3245;
2   : 2   : C58/3160;
3   : 5   : CC4/3268;
4   : 6   : C7C/3196;
5   : 7   : C8E/3214;
ROM F/W version……………………. : 0024000C;
Heads map…………………………. : 0,1,2,5,6,7;
Preamp vendor……………………. : 0x0001;
Preamp revision………………….. : 0x0001;

;

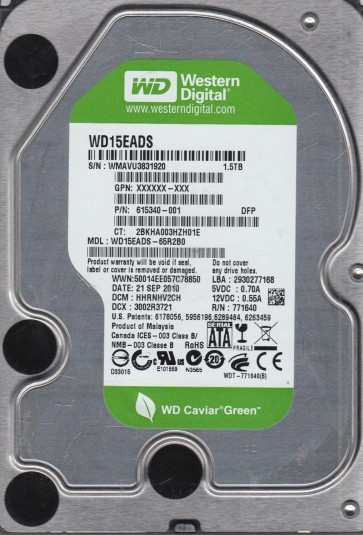

HDD with Serial Number: WMAVU3831920;
Model: WD15EADS-65R2B0;
Date: 21 SEP 2010;
DCM: HHRNHV2CH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : B7D/2941;
1 : 3 : AE3/2787;
2 : 4 : B2F/2863;
3 : 5 : AF2/2802;
4 : 6 : B4D/2893;
5 : 7 : B0D/2829;
ROM F/W version……………………. : 007700BP;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

HDD with Serial Number: WMAVU3832190;
Model: WD15EADS-65R2B0;
Date: 07 OCT 2010;
DCM: HHRNHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : D03/3331;
1 : 3 : CAD/3245;
2 : 4 : D1E/3358;
3 : 5 : CCC/3276;
4 : 6 : D24/3364;
5 : 7 : CAD/3245;

;

ROM F/W version: 007700C7;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0001;
Preamp revision: 0x0002;

;

HDD with Serial Number: WMAVU3831529;
Model: WD15EADS-65R2B0;
Date: 21 SEP 2010;
DCM: HHRMHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : D68/3432;
1   : 3   : CD4/3284;
2   : 4   : D83/3459;
3   : 5   : D04/3332;
4   : 6   : D98/3480;
5   : 7   : D21/3361;
;
ROM F/W Version: 007700BP;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002

;

Specifications;

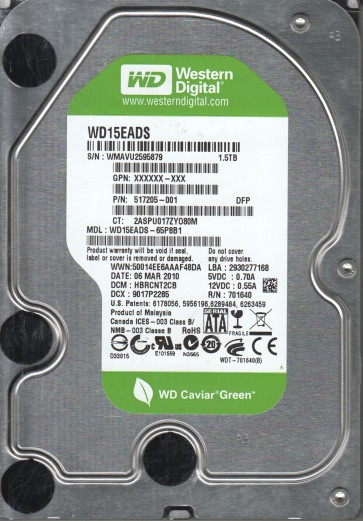

SN: WMAVU2595879;
Model: WD15EADS-65P8B1;
Date: 06 MAR 2010;
DCM: HBRCNT2CB ;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;

;

;

HDD with Serial Number: WMAVU3280518;
Model: WD15EADS-65P8B1;
Date: 23 APR 2010;
DCM: HARNHT2MB;
Product of: Malaysia;
PCB Sticker: 2061-701640-802 01PD2;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : CC9/3273;
1 : 3 : C1D/3101;
2 : 4 : CF4/3316;
3 : 5 : C22/3106;
4 : 6 : CDC/3292;
5 : 7 : C4B/3147;

;

ROM F/W version: 007700A4;
Heads map: 2,3,4,5,6,7;
Preamp vendor: 0x0000;
Preamp revision: 0x0002;

;

HDD #1 Specs:;
Serial Number: WMAVU2460922;
Model: WD15EADS-65P8B1;
Date: 04 MAR 2010;
DCM: HARNHT2CA;
Product of: Malaysia;
PCB Sticker: 2061-701640-402 04PD2;
PCB Revision: 2060-701640-002 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : C9E/3230;
1   : 3   : C76/3190;
2   : 4   : C9B/3227;
3   : 5   : C65/3173;
4   : 6   : CB0/3248;
5   : 7   : C56/3158;

;

ROM F/W version……………………. : 007700A4;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0002;

;

HDD #1 Specs:;

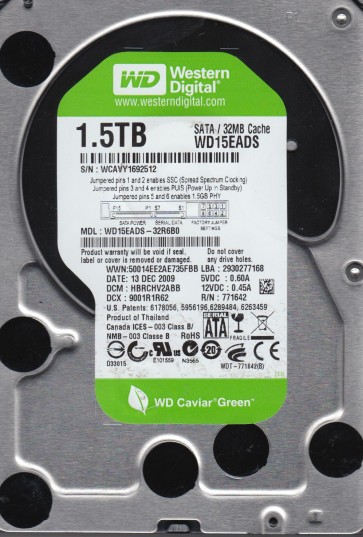

Serial Number: WCAVY1692512;
Model: WD15EADS-32R6B0;
Date: 13 DEC 2009;
DCM: HBRCHV2ABB;
Product of: Thailand;
PCB Sticker: 2061-771642-F00 04P;
PCB Revision: 2060-771642-000 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : B9E/2974;
1   : 3   : B7A/2938;
2   : 4   : B4C/2892;
3   : 5   : B43/2883;
4   : 6   : B65/2917;
5   : 7   : B29/2857;
ROM F/W version……………………. : 00900062;
Preamp Vendor……………………… : 0000;
Preamp Rev………………………… : 0003;
;
;
;

;

HDD with Serial Number: WMAVU3945060;
Model: WD15EADS-22P8B0;
Date: 04 DEC 2010;
DCM: HHNNNT2MB;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : BF7/3063;
1   : 3   : D27/3367;
2   : 4   : BFE/3070;
3   : 5   : E3C/3644;
4   : 6   : C07/3079;
5   : 7   : D48/3400;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;
