HDD #1 Specs:;
SN: WMAVU3936099;
Model: WD15EADS-22P8B0;
Date: 30 NOV 2010;
DCM: HBNNNT2MA ;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : CEA/3306;
1   : 3   : CE6/3302;
2   : 4   : CD0/3280;
3   : 5   : CF0/3312;
4   : 6   : CEE/3310;
5   : 7   : CE0/3296;
;

;

ROM F/W version……………………. : 007700C7;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;

;

Specifications;

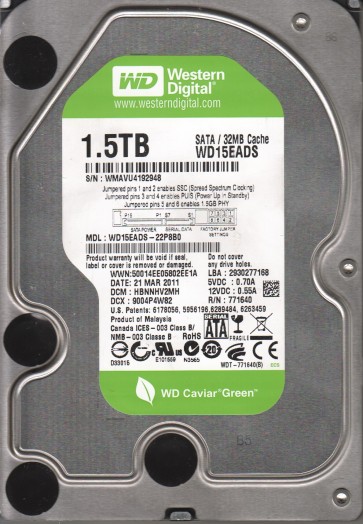

SN: WMAVU4192948;
Model: WD15EADS-22P8B0;
Date: 21 MAR 2011;
DCM: HBNNHV2MH ;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AE;
PCB Revision: 2060-771640-0003 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : B43/2883;
1   : 3   : B4F/2895;
2   : 4   : B60/2912;
3   : 5   : B5C/2908;
4   : 6   : B89/2953;
5   : 7   : B64/2916;
ROM F/W version……………………. : 007700DM;
Preamp vendor……………………… : 0x0000;
Preamp revision……………………. : 0x0002;
;
;
;
;
;
;

;

HDD with Serial Number: WMAVU3906827;
Model: WD15EADS-22P8B0;
Date: 10 JAN 2011;
DCM: HBNNHV2MA;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : B60/2912;
1   : 3   : B3F/2879;
2   : 4   : B55/2901;
3   : 5   : BA8/2984;
4   : 6   : B21/2849;
5   : 7   : B8D/2957;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Pream[p vendor…………………… : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU3817846;
Model: WD15EADS-22P8B0;
Date: 16 OCT 2010;
DCM: HBNCNT2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

ROM F/W 007700C7;
Heads map  2,3,4,5,6,7;
Preamp Vendor: x000;
Preamp revision: x002;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : D15/3349;
1   : 3   : D08/3336;
2   : 4   : CE5/3301;
3   : 5   : CE0/3296;
4   : 6   : D08/3336;
5   : 7   : CEA/3306

;

HDD with Serial Number: WMAVU3807575;
Model: WD15EADS-22P8B0;
Date: 22 OCT 2010;
DCM: HBNCNT2MB;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : CEF/3311;
1   : 3   : D09/3337;
2   : 4   : CFB/3323;
3   : 5   : CF3/3315;
4   : 6   : CDF/3295;
5   : 7   : CC0/3264;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU3823269;
Model: WD15EADS-22P8B0;
Date: 15 OCT 2010;
DCM: HARCHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 2 : C9D/3229;
1 : 3 : C0F/3087;
2 : 4 : C6F/3183;
3 : 5 : C50/3152;
4 : 6 : C5D/3165;
5 : 7 : C64/3172;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU3998891;
Model: WD15EADS-22P8B0;
Date: 09 DEC 2010;
DCM: HANNNT2MB;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : CCE/3278;
1   : 3   : C1B/3099;
2   : 4   : CD8/3288;
3   : 5   : C28/3112;
4   : 6   : CFD/3325;
5   : 7   : C10/3088;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;

;

HDD with Serial Number: WMAVU3893573;
Model: WD15EADS-22P8B0;
Date: 10 JAN 2011;
DCM: HANNHV2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : B09/2825;
1   : 3   : B0A/2826;
2   : 4   : AEE/2798;
3   : 5   : B35/2869;
4   : 6   : B09/2825;
5   : 7   : AAF/2735;
ROM F/W version……………………. : 007700C7;
Heads map…………………………. : 2,3,4,5,6,7;
Preamp vendor……………………. : 0x0000;
Preamp revision………………….. : 0x0002;
;
;
;

;

HDD with Serial Number: WMAVU3942969;
Model: WD15EADS-22P8B0;
Date: 30 NOV 2010;
DCM: HANNHT2MH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AB;
PCB Revision: 2060-771640-003 REV P1;
;

;

HDD with Serial Number: WMAVU3821327;
Model: WD15EADS-22P8B0;
Date: 12 OCT 2010;
DCM: HANNHT2CH;
Product of: Malaysia;
PCB Sticker: 2061-771640-M03 AA;
PCB Revision: 2060-771640-003 REV P1;
;

ROM F/W 007700C7;
Heads map  2,3,4,5,6,7;
Preamp Vendor: x000;
Preamp revision: x002;
;
;
Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 2   : C76/3190;
1   : 3   : BC1/3009;
2   : 4   : C4D/3149;
3   : 5   : BE9/3049;
4   : 6   : C58/3160;
5   : 7   : BBB/3003

;
