HDD with Serial Number: WXC808962396;
Model: WD1200BEVS-22UST0;
Date: 15 OCT 2008;
DCM: FACT2ANB;
Product of: Thailand;
PCB Sticker: 2061-701499-600 AG;
PCB Revision: 2060-701499-000 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : AC6/2758;
1 : 1 : B6C/2924;
ROM F/W version……………………. : 000700B8;
Heads map…………………………. : 0,1;
Preamp vendor……………………. : 0x0002;
Preamp revision………………….. : 0x0001;

;

HDD with Serial Number: WXE907C16918;
Model: WD1200BEVS-22RST0;
Date: 22 SEP 2007;
DCM: HHYTJHNB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AF;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 1 : 9EC/2540;
1 : 2 : A14/2580;
2 : 3 : A00/2560;
ROM F/W version……………………. : 000900B9;
Heads map…………………………. : 1,2,3;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

HDD with Serial Number: WXE207551003;
Model: WD1200BEVS-22RST0;
Date: 27 FEB 2007;
DCM: HACTJABB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AB;
PCB Revision: 2060-701450-011 REV A;
;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 8BE/2238;
1 : 2 : 8FC/2300;
2 : 3 : 992/2450;
ROM F/W version……………………. : 000900A4;
Heads map…………………………. : 0,2,3;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WXC607083894;
Model: WD1200BEVS-22RST0;
Date: 04 JUL 2007;
DCM: FHYTJHBB;
Product of: Thailand;
PCB Sticker: 2061-701450-Z00 AF;
PCB Revision: 2060-701450-011 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 1   : 936/2358;
1   : 2   : 990/2448;
2   : 3   : 97C/2428;
ROM F/W version……………………. : 000900B7;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;
;
;
;
;

;

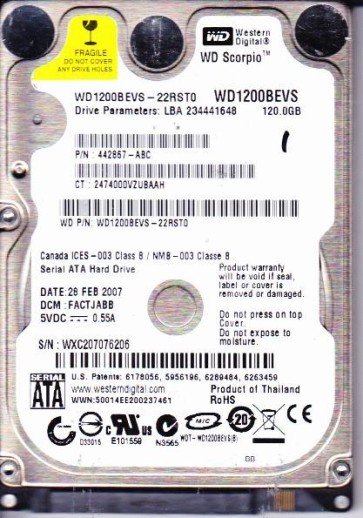

Specifications:;
SN WXC207076206;
Model WD1200BEVS-22RST0;
DATE 28 FEB 2007;
DCM FACTJABB;
Product of Thailand;
PCB Sticker: 2061-701450-Z00 AB;
PCB Revision: 2060-701450-011 REV A;

;

HDD with Serial Number: WXE207D32721;
Model: WD1200BEVS-22LAT0;
Date: 07 MAR 2007;
DCM: HOTJBBB;
Product of: Thailand;
PCB Sticker: 2061-701424-R00 AA;
PCB Revision: 2060-701424-010 REV A;

;

Micro Jogs;
——————————;
LH : PH : Micro Jog (Hex/Dec);
——————————;
0 : 0 : 5ED/1517;
1 : 1 : 64F/1615;
2 : 2 : 653/1619;
3 : 3 : 70F/1807;

;

ROM F/W version……………………. : 00020006;
Preamp vendor……………………… : 0x0004;
Preamp revision……………………. : 0x0001;

;

HDD #1 Specs:;
Serial Number: WXE806127925;
Model: WD1200BEVS-22LAT0;
Date: 26 SEP 2006;
DCM: HOTJANB;
Product of: Thailand;
PCB Sticker: 2061-701424-N00 AE;
PCB Revision: 2060-701424-007 REV A;

Micro Jogs
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;

;

;

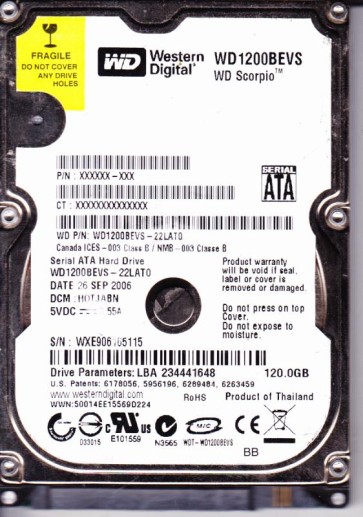

Specifications:;
Model WD1200BEVS-22LAT0;
SN WXE906165115;
DATE 26 SEP 2006;
DCM HOTJABN;
Product of Thailand;
PCB Sticker: 2061-701424-N00 AF;
PCB Revision: 2060-701424-007 REV A;

;

HDD #1 Specs:;
SN: WXE906230943;
Model: WD1200BEVS-22LAT0;
Date: 23 OCT 2006;
DCM: HCTJABN ;
Product of: Thailand;
PCB Sticker: 2061-701424-N00 AF;
PCB Revision: 2060-701424-007 REV A;

;

;

Specifications;
SN: WXE608H63004;
Model: WD1200BEVS-08UST0;
Date: 13 JUN 2008;
DCM: HBCTJBBB ;
Product of: THAILAND;
PCB Sticker: 2061-701499-600 AF;
PCB Revision: 2060-701499-000 REV A;

;

Micro Jogs;
——————————;
LH  : PH  : Micro Jog (Hex/Dec);
——————————;
0   : 0   : BA6/2982;
1   : 1   : B8A/2954;
;

;

ROM F/W version……………………. : 00070038;
Preamp vendor……………………… : 0x0001;
Preamp revision……………………. : 0x0001;

;
